RC-660L/LB/LD/LE/LS

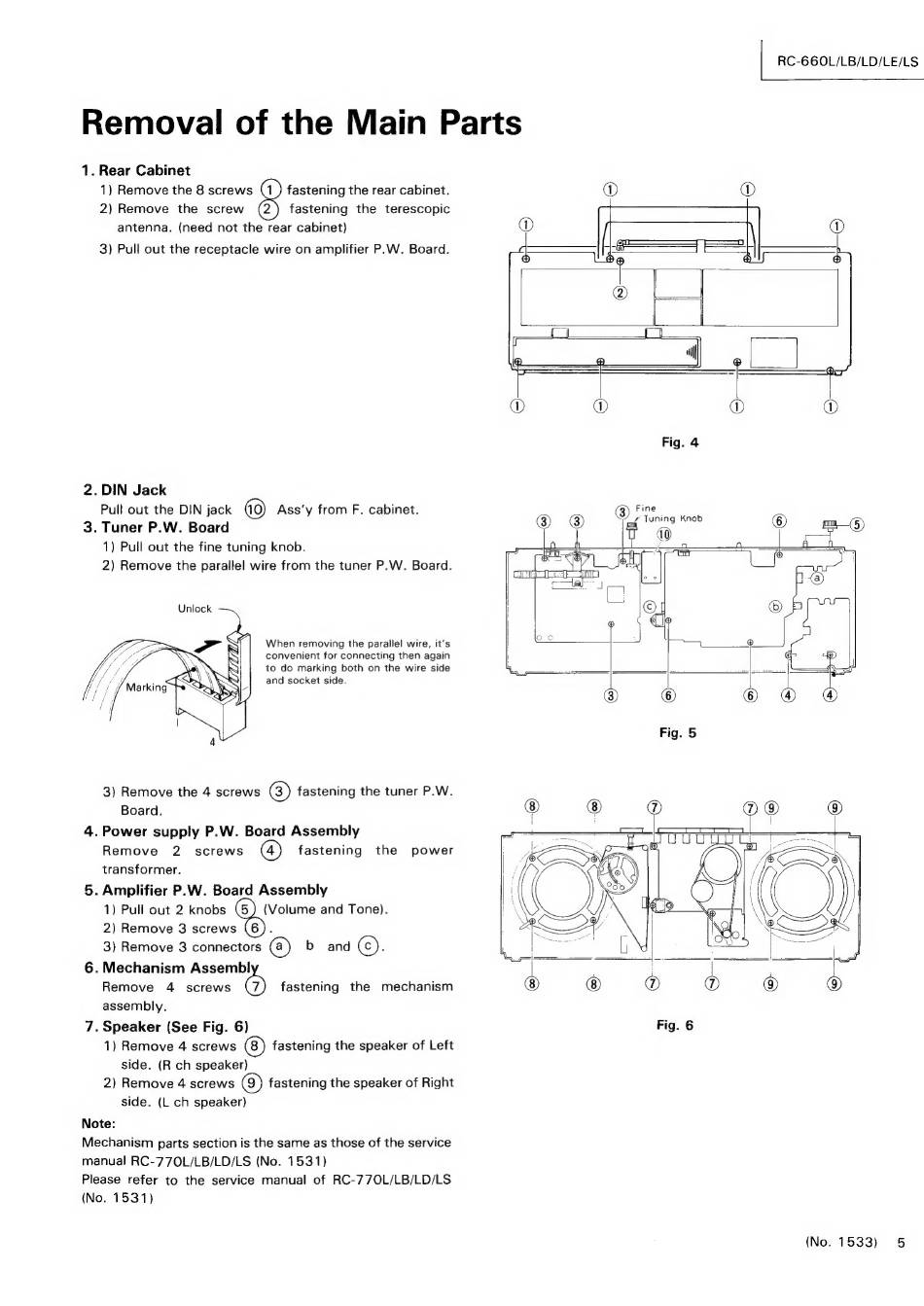

Removal of the Main Parts
1. Rear Cabinet
1) Remove the 8 screws fastening the rear cabinet. @ 'Oo
2) Remove the screw fastening the terescopic
antenna. (need not the rear cabinet)
3) Pull out the receptacle wire on amplifier P.W. Board.
2.DIN Jack
Pull out the DIN jack Ass'y from F. cabinet.
3. Tuner P.W. Board
1) Pull out the fine tuning knob.
2) Remove the parallel wire from the tuner P.W. Board.
=a
Fi
8) 8) @ y joaiig Knob
When removing the parallel wire, it's
convenient for connecting then again
to do marking both on the wire side
and socket side.
3) Remove the 4 screws 3) fastening the tuner P.W.
Board.
4. Power supply P.W. Board Assembly
Remove 2. screws (4) fastening the power
transformer.
5. Amplifier P.W. Board Assembly
1) Pull out 2 knobs 6) (Volume and Tone).
2) Remove 3 screws ;
3) Remove 3 connectors (@) b and (Cc).
6. Mechanism Assembl
Remove 4 screws () fastening the mechanism
assembly.
7. Speaker (See Fig. 6) Fig. 6
1) Remove 4 screws (8) fastening the speaker of Left
side. (R ch speaker)
2) Remove 4 screws (9) fastening the speaker of Right
side. (L ch speaker)
Note:
Mechanism parts section is the same as those of the service
manual RC-770L/LB/LD/LS (No. 1531)
Please refer to the service manual of RC-770L/LB/LD/LS
(No. 1531)
(No. 1533) 5
