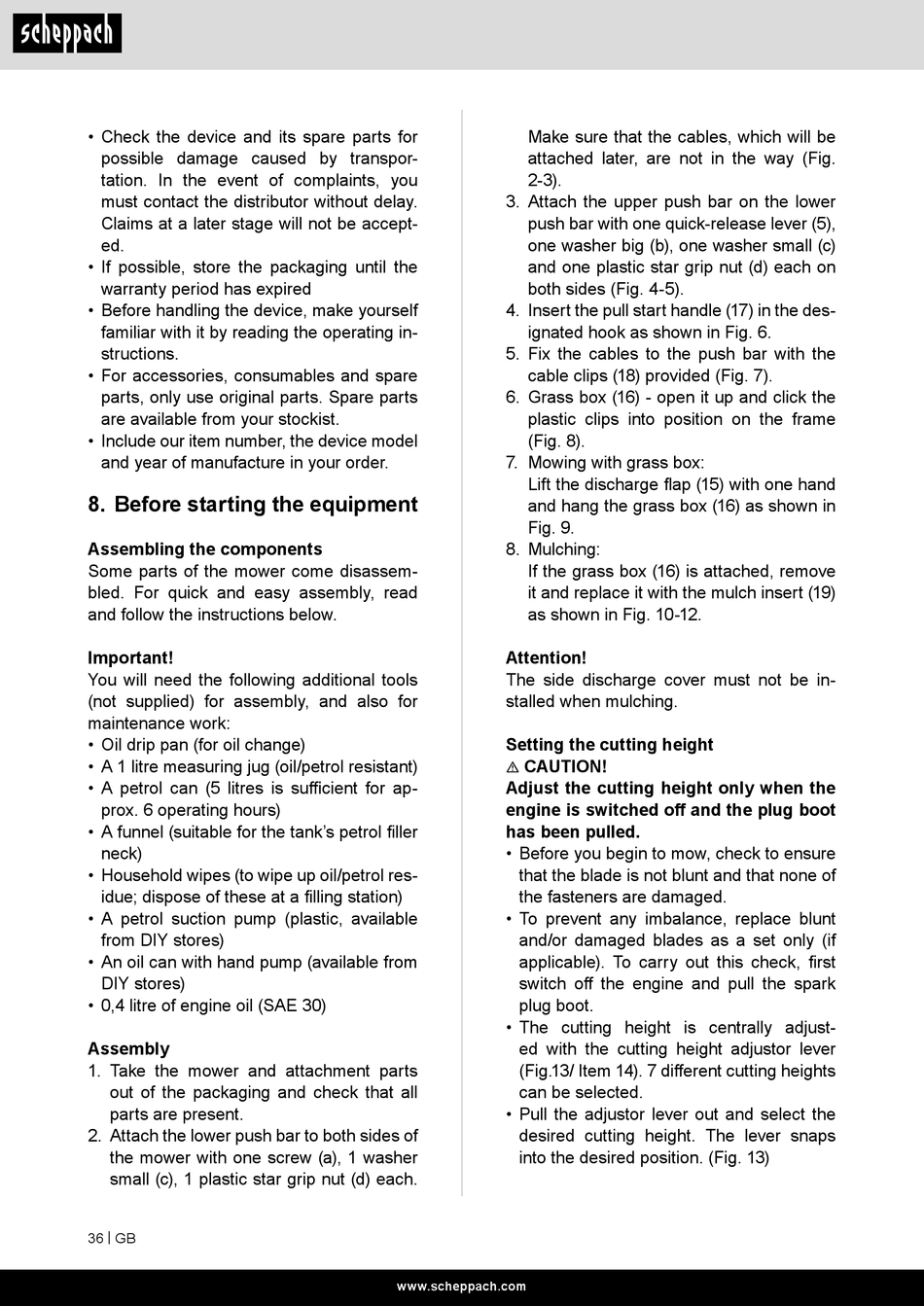

• Check the device and its spare parts for
possible damage caused by transpor-
tation. In the event of complaints, you
must contact the distributor without delay.
Claims at a later stage will not be accept-
ed.
• If possible, store the packaging until the
warranty period has expired
• Before handling the device, make yourself
familiar with it by reading the operating in-
structions.
• For accessories, consumables and spare
parts, only use original parts. Spare parts
are available from your stockist.
• Include our item number, the device model
and year of manufacture in your order.

8. Before starting the equipment

Assembling the components
Some parts of the mower come disassem-
bled. For quick and easy assembly, read
and follow the instructions below.
Important!
You will need the following additional tools
(not supplied) for assembly, and also for
maintenance work:
• Oil drip pan (for oil change)
• A 1 litre measuring jug (oil/petrol resistant)
• A petrol can (5 litres is sufficient for ap-
prox. 6 operating hours)
• A funnel (suitable for the tankʼs petrol filler
neck)
• Household wipes (to wipe up oil/petrol res-
idue; dispose of these at a filling station)
• A petrol suction pump (plastic, available
from DIY stores)
• An oil can with hand pump (available from
DIY stores)
• 0,4 litre of engine oil (SAE 30)
Assembly
1. Take the mower and attachment parts
out of the packaging and check that all
parts are present.
2. Attach the lower push bar to both sides of
the mower with one screw (a), 1 washer
small (c), 1 plastic star grip nut (d) each.
36 | GB
Make sure that the cables, which will be
attached later, are not in the way (Fig.
2-3).
3. Attach the upper push bar on the lower
push bar with one quick-release lever (5),
one washer big (b), one washer small (c)
and one plastic star grip nut (d) each on
both sides (Fig. 4-5).
4. Insert the pull start handle (17) in the des-
ignated hook as shown in Fig. 6.
5. Fix the cables to the push bar with the
cable clips (18) provided (Fig. 7).
6. Grass box (16) - open it up and click the
plastic clips into position on the frame
(Fig. 8).
7. Mowing with grass box:
Lift the discharge flap (15) with one hand
and hang the grass box (16) as shown in
Fig. 9.
8. Mulching:
If the grass box (16) is attached, remove
it and replace it with the mulch insert (19)
as shown in Fig. 10-12.
Attention!
The side discharge cover must not be in-
stalled when mulching.
Setting the cutting height
CAUTION!
m
Adjust the cutting height only when the
engine is switched off and the plug boot
has been pulled.
• Before you begin to mow, check to ensure
that the blade is not blunt and that none of
the fasteners are damaged.
• To prevent any imbalance, replace blunt
and/or damaged blades as a set only (if
applicable). To carry out this check, first
switch off the engine and pull the spark
plug boot.
• The cutting height is centrally adjust-
ed with the cutting height adjustor lever
(Fig.13/ Item 14). 7 different cutting heights
can be selected.
• Pull the adjustor lever out and select the
desired cutting height. The lever snaps
into the desired position. (Fig. 13)
