- Page 1 GC-WIFI7 Installation Guide/安裝指南 安装指南/ インストー ルガイド...

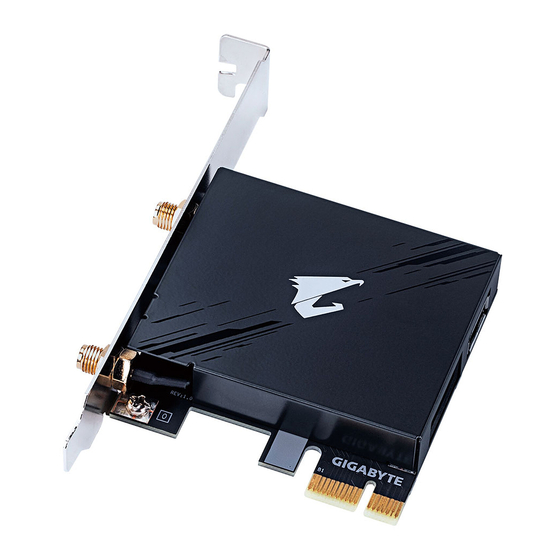

- Page 2 Installing the Wi-Fi/Bluetooth Card • 安裝Wi-Fi/藍牙卡 安装Wi-Fi/蓝牙卡 • Wi-Fi/Bluetooth カードを 取 り 付 ける Wi-Fi/Bluetooth Card USB Connector USB連接埠插座 • Wi-Fi/藍牙卡 • Wi-Fi/蓝牙卡 USB连接端口插座 • Wi-Fi/Bluetooth カード コネクター USB Cable • USB排線 USB排线 • USB ケーブル Antenna Connector 天線連接埠 天线连接端口 アンテナ...
- Page 3 Step 1: Install the Wi-Fi/Bluetooth card in a PCI Express slot. Connect one end of the USB cable to the USB connector on the Wi-Fi/Bluetooth card. 步驟一： 先將Wi-Fi/藍牙卡安裝至PCI Express 插槽， 接著將USB排線的一端接至無線/藍牙卡 的USB連接埠插座。 步骤一： 先将Wi-Fi/蓝牙卡安装至PCI Express插槽， 接着将USB排线的一端接至无线/蓝牙卡 的USB连接端口插座。 ステップ Wi-Fi/Bluetooth PCI Express カードを...
- Page 4 Step 2: Connect the other end of the USB cable to the F_USB connector on the motherboard. 步驟二： 再 將 U S B 排 線 的 另 一 端 接 至 主 機 板 的 F_USB插座。 步骤二： 再将USB排线的另一端接至主板的F_USB 插座。 ステップ 一方...
- Page 5 Step 3: Tighten the antenna cables to the antenna connectors on the Wi-Fi/Bluetooth card respectively. 步驟三： 將天線鎖至Wi-Fi/藍牙卡的天線連接埠。 步骤三： 将天线锁至Wi-Fi/蓝牙卡的天线连接端 口。 ステップ W i - F i / ア ン テ ナ ケ ー ブ ル を そ れ ぞ れ Bluetooth カード...
- Page 6 Step 4: Then move the antennas to a place where the signal is good. 步驟四： 完成安裝後將天線移至收訊良好處。 步骤四： 完成安装后将天线移至收讯良好处。 ステップ 次 、 信号 受信 易 場所 に ワイヤレス が し い 配置 。 にアンテナを します - 6 -...
- Page 7 Installing the Drivers and Utilities • 安裝驅動程式及工具 安装驱动程序及工具 • ドライバとユーティ リティをインストールする After the computer starts, please download the latest driver from GIGABYTE’s website and install it. Adjust your wireless LAN configuration based on your environment after installing the driver. 請至技嘉網站下載最新的驅動程式...
- Page 8 Supplier’s Declaration of Conformity 47 CFR § 2.1077 Compliance Information Product Name: PCIe add-in card Trade Name: GIGABYTE Model Number: GC-WIFI7 Responsible Party – U.S. Contact Information: G.B.T. Inc. Address: 17358 Railroad street, City Of Industry, CA91748 Tel.: 1-626-854-9338 Internet contact information: https://www.gigabyte.com FCC Compliance Statement: This device complies with Part 15 of the FCC Rules, Subpart B, Unintentional Radiators.
- Page 9 Antenna Warning The wireless adapter is not designed for use with high-gain antennas. Use On Aircraft Caution Caution: Regulations of the FCC and FAA prohibit airborne operation of radio-frequency wireless devices because their signals could interfere with critical aircraft instruments. Other Wireless Devices Safety Notices for Other Devices in the Wireless Network: Refer to the documentation supplied with wireless Ethernet adapters or other devices in the wireless network.
- Page 10 Statement GIGABYTE products have not intended to add and safe from hazardous substances (Cd, Pb, Hg, Cr+6, PBDE, PBB, DEHP, BBP, DBP and DIBP). The parts and components have been carefully selected to meet RoHS requirement. Moreover, we at GIGABYTE are continuing our efforts to develop products that do not use internationally banned toxic chemicals.
- Page 11 European Union (EU) CE-Konformitätserklärung Dieses Produkte mit CE-Kennzeichnung erfüllen folgenden EU-Richtlinien: EMV-Richtlinie 2014/30/EU, Niederspannungsrichtlinie 2014/35/EU, Funkanlagen Richtlinie 2014/53/EU, RoHS-Richtlinie 2011/65/EU erfüllt und die 2015/863 Erklärung. Die Konformität mit diesen Richtlinien wird unter Verwendung der entsprechenden Standards zurEuropäischen Normierung beurteilt. CE declaração de conformidade Este produto com a marcação CE estão em conformidade com das seguintes Diretivas UE: Diretiva Baixa Tensão 2014/35/EU;...
- Page 12 European Community Radio Equipment Directive Compliance Statement: This equipment complies with all the requirements and other relevant provisions of Radio Equipment Directive 2014/53/EU. This equipment is suitable for home and office use in all the European Community Member States and EFTA Member States. The low band 5.15 -5.35 GHz is for indoor use only.
- Page 13 Wireless module approvals: Model and revision no.: Wireless module manufacturer, model name: GC-WIFI7 rev. 1.0 Qualcomm Technologies, Inc. QCNCM865 ® GC-WIFI7 rev. 1.1 MediaTek Inc. MT7927, RZ738 GC-WIFI7 rev. 1.2 Intel Corporation BE200 ® Approvals for wireless module QCNCM865: Approvals for wireless module MT7927, RZ738:...
- Page 14 BSMI CNS15663 限用物質含有情況標示聲明書 Declaration of the Presence Condition of the Restricted Substances Marking 設備名稱：WIFI CARD 型號（型式）：GC-WIFI7 Equipment name Type designation (Type) 限用物質及其化學符號 Restricted substances and its chemical symbols 鉛 汞 鎘 六價鉻 多溴聯苯 多溴二苯醚 單元Unit Lead Mercury Cadmium Hexavalent Polybrominated...
- Page 15 China RoHS Compliance Statement 中国《废弃电器电子产品回收处理管理条例》提示性说明 为了更好地关爱及保护地球，当用户不再需要此产品或产品寿命终止时，请遵守国家废弃电器电子产品回 收处理相关法律法规，将其交给当地具有国家认可的回收处理资质的厂商进行回收处理。 环保使用期限 Environment-friendly use period 此标识指期限（十年），电子电气产品中含有的有害物质不会发生外泄或突变、电子电气产品用 户正常使用该电子电气产品不会对环境造成严重 污染或对其人身、财产造成严重损害的期限。 关于符合中国《电器电子产品有害物质限制使用管理办法》的声明 Administrative Measures for the Restricted Use of Hazardous Substances in Electrical and Electronic Products (China RoHS Declaration) 产品中有害物质的名称及含量 Hazardous Substances Table 有害物质(Hazardous Substances) 部件名称(Parts) 多溴二 铅...
