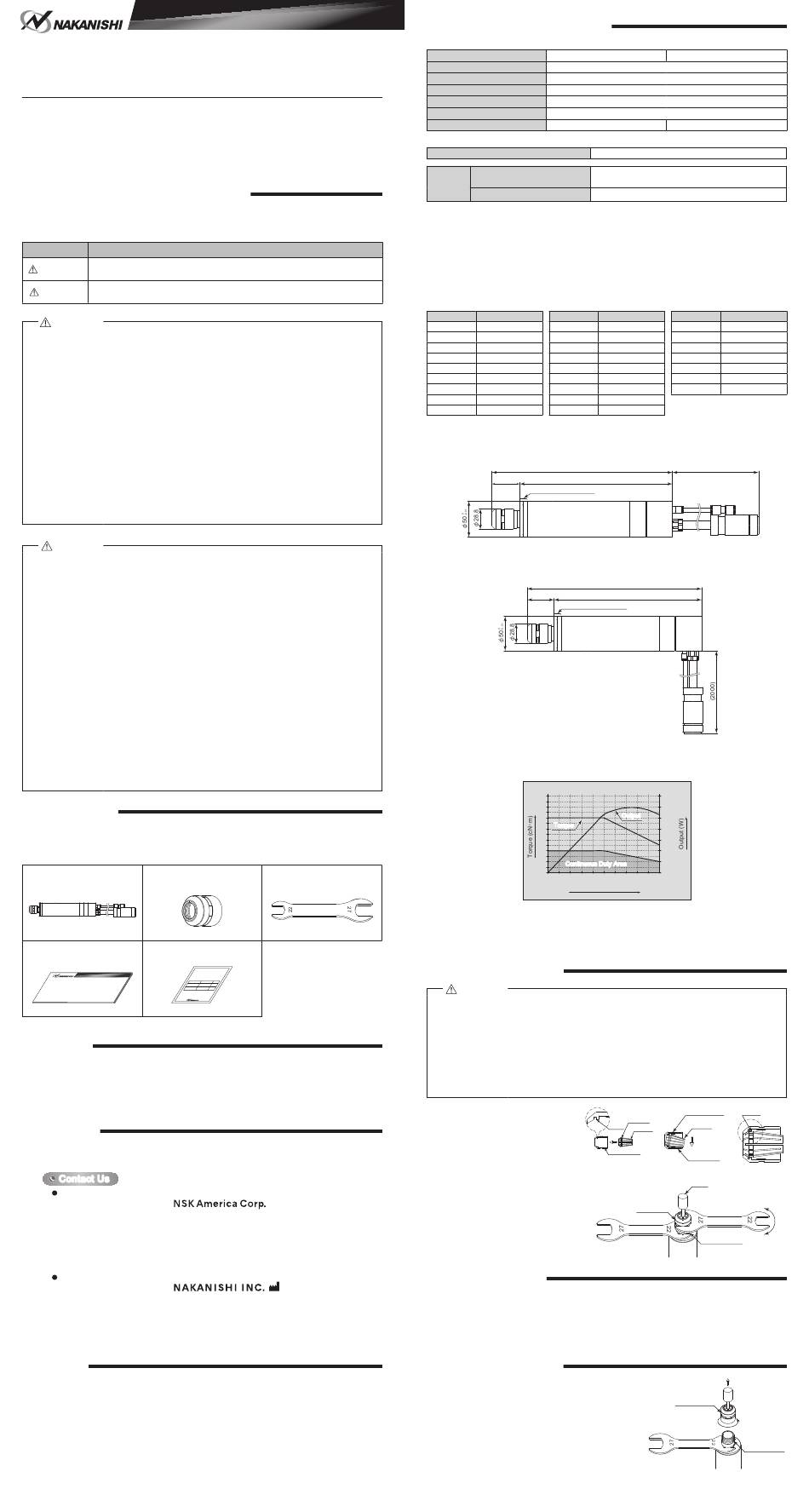

Nakanishi BMS-5010 Operation Manual

Motor Spindle
BMS-5010 ・ BMS-5010RA
OPERATION MANUAL
Thank you for purchasing motor spindle BMS-5010 ・ BMS-5010RA. This motor spindle is designed for high precision
machining including grinding, drilling and milling. The <E4000 CONTROLLER> and the <Air Line Kit> are required to
drive this motor spindle. Read this Operation Manual carefully before use. Also read <E4000 CONTROLLER> and
the <Air Line Kit> Operation Manual.
1 . CAUTIONS FOR HANDLING AND OPERATION
■ Read these warnings and cautions carefully and only use in the manner intended.
■ These warnings and cautions are intended to avoid potential hazards that could result in personal injury or damage
to the device. These are classified as follows in accordance with the seriousness of the risk.
Class
A safety hazard could result in bodily injury or damage to the device if the
WARNING
safety instructions are not properly followed.
A hazard that could result in light or moderate bodily injury or damage to
CAUTION
the device if the safety instructions are not followed.
WARNING
This motor spindle is not a hand tool. It is designed to be used on CNC machines or special
①
purpose machines.
Do not touch the cutting tool while it is running. It is very dangerous.
②
Wear safety glasses, dust mask and hearing protection, and use a protective cover around the
③
motor spindle whenever the motor spindle is rotating.
Never connect, disconnect or touch the Power Cord Plug and Motor Cord Connector with wet
④
hands. This may cause an electric shock.
Never operate or handle the motor spindle until you have thoroughly read the owner's manual
⑤
and safe operation has been confirmed.
1 ） To prevent injuries/damages, check this motor spindle and cutting tool for proper installation,
then operate this motor spindle.
2 ） Before disconnecting this motor spindle, always turn the control power off and turn the
compressed air supply to the control unit off. It is then safe to remove this motor spindle.
When installing a tool, tighten the collet correctly and check again the collet and collet nut before
⑥
use. Do not over-tighten the collet. This may cause damage to the motor spindle.
Do not use bent, broken, chipped, out of round or sub-standard tools as they can shatter or
⑦
explode. It shatters, it cracked, and the tool that bends and breaks disperses and it causing
injures. When using a new tool, rotate it in a low speed and increase speed gradually for safety.
Do not exceed the maximum recommended allowable tool speed. For your safety, use speeds
⑧
below the maximum allowable speed.
⑨ Do not apply excessive force. This may cause tool slippage, tool damage, injury to the operator,
loss of concentricity and precision.
CAUTION
① Do not drop or hit this motor spindle, as shock can damage to the internal components.
Be sure to clean the collet and collet nut, the inside of the spindle before replacing the tool. If
②
ground particles or metal chips stick to the inside of spindle or the collet, damage to the collet
or spindle can occur due to the loss of precision.
When cleaning a spindle, stop the motor and remove dirt with a brush or a cloth. Do not blow air
③
to a dust proof area (refer to Section 6 - 2 "Outside View") with compressed air, foreign particles
or cutting chips might get into the ball bearing.
Always clean the tool shank before installing the tool in the motor spindle.
④
⑤ Please select the suitable tool diameter from Table 2 for each collet size. If you use a tool that is
out of range, you may experience problems such as core runout, insufficient holding power, and
collet deformation.
Select suitable products or tools for all applications. Do not exceed the capabilities of the motor
⑥
spindle or tools.
Carefully direct coolant spray to the tool. Do not spray directly on the motor spindle body.
⑦
Stop working immediately when abnormal rotation or unusual vibration are observed. Afterwards,
⑧
please check the content of Section "15. TROUBLESHOOTING".
⑨ Always check if the tool, collet or collet nut are damaged before and after operating.
If the collet or collet nut show signs of wear or damage, replace them before a malfunction or
⑩
additional damage occurs.
After installation, repair, initial operation, or long periods of non operation, please refer to Section
⑪
"12. BREAK-IN PROCEDURE" detailed in Table. 3. When checking the motor spindle, no vibration
or unusual sound should be observed during rotation.
Do not disassemble, modify or attempt to repair this motor spindle. Additional damage will occur
⑫
to the internal components. Service must be performed by NSK NAKANISHI or an authorized
service center.
When using this motor spindle for mass production, please purchase the another motor spindle
⑬
as a spare in case of an emergency.
2 . BASIC PACKAGE
When opening the package, check if it includes all items listed in "Table. 1 Packing List Contents".
In the event of any shortage, please contact either NAKANISHI (see the "4. CONTACT US" section) or your local dealer.
Table. 1 Packing List Contents
Motor Spindle・・1pc. Collet Nut (CHN-20) ・・1pc.*
Operation Manual ･･1set. Inspection Card・・1pc.
取扱説明書
OPERATION MANUAL
* The Collet Nut is attached to the air bearing spindle.
3 . WARRANTY
We provide a limited warranty for our products. We will repair or replace the products if the cause of failure is due to
the following manufactures defects. Please contact us or your local distributor for details.
（1） Defect in manufacturing.
（2） Any shortage of components in the package.
（3） Where damaged components are found when initially opening the package.
(This shall not apply if the damage was caused by the negligence of a customer.)
4 . CONTACT US
For your safety and convenience when purchasing our products, we welcome your questions.
If you have any questions about operation, maintenance and repair of the product, please contact us.
Contact Us Contact Us
For U.S. Market
Company Name :
Industrial Div.
Business Hours : 8:00 to 17:00 (CST)
(closed Saturday, Sunday and Public Holidays)
U.S. Toll Free No. : +1 800 585 4675
Telephone No.
: +1 847 843 7664
Fax No.
: +1 847 843 7622
Website
: www.nskamericacorp.com
For Other Markets
Company Name :
Business Hours : 8:00 to 17:00 (JST)
(closed Saturday, Sunday and Public Holidays)
Telephone No.
: +81 289 64 3520
e-mail
: webmaster-ie@nsk-nakanishi.co.jp
5 . FEATURES
① The motor spindle housing is made from precision ground, hardened, stainless steel (SUS) with an outside
diameter of φ50 mm.
② Excellent durability and high reliability are obtained by using a high-speed brushless motor, which eliminates the
need for brush replacement and frequent maintenance.
③ A quick disconnect cord is available for easy motor removal.
OM-KK1009EN 000
Degree of Risk
Wrench (22 × 27) ･･2pcs.
検査成績表
Inspection Card
6 . SPECIFICATIONS AND DIMENSIONS
6 - 1 Specification
Model BMS-5010
Maximum Motor Rotation Speed 10,000 min
Spindle Accuracy Within 1 μm
Max. Output 1,200 W
Noise Level
Less than 70 dB(A)
IP Code Motor Spindle : IP57
Weight 2.4 kg
<Option>
Collet Nut
EMCD - 4000 - □ M (Power Line)
Motor Cord
*Note1
EMCD - 4000S - □ M (Signal Line)
*Note 1 ： Motor Cord is sold separately. Please select the suitable motor coed length for your application.
Maximum length of mortor cord for BMS-5010 is 16m by connecting two 8m mortor cords.
Maximum length of mortor cord for BMS-5010RA is 16m by connecting 6m and 8m mortor cords, since it
has a 2 m motor cord attached to the main unit.
<Collet>
The use of REGO-FIX ER20/ER20UP is recommended.
Please select the suitable tool diameter from Table. 2 For Each Collet Size.
Table. 2 For Each Collet Size
Collet size Tool Diameter Range Collet size
φ0.5 〜φ1
φ1 φ5.5
φ1.1 〜φ1.5
φ1.5 φ6
φ1.6 〜φ2
φ2 φ6.5
φ2.1 〜φ2.5
φ2.5 φ7
φ2.6 〜φ3
φ3 φ7.5
φ3.1 〜φ3.5
φ3.5 φ8
φ3.6 〜φ4
φ4 φ8.5
φ4.1 〜φ4.5
φ4.5 φ9
φ4.6 〜φ5
φ5 φ9.5
6 - 2 Outside View
① BMS-5010
(252.8)
(40)
Dust Proof Cover Area
② BMS-5010RA
(40)
Dust Proof Cover Area
6 - 3 Torque Characteristics
280
260
240
220
200
180
Torque Torque
160
140
120
100
80
60
40
Continuous Duty Area Continuous Duty Area
20
0 1 2 3
Speed (×10
6 - 4 Air Supply
Please set the air pressure to 0.35 MPa for continuous use, although the motor spindle can be operated at the air
pressure within 0.2 MPa~0.35 MPa.
7 . INSTALLING THE COLLET
CAUTION
• Be sure to clean the collet, the collet nut and the inside of the spindle before installing the collet
or the tool. If ground particles or metal chips stick to the inside of the spindle or the collet,
damage to the collet or spindle can occur due to the loss of precision.
• When installing the collet in the collet nut, make sure that the latches of the collet nut are properly
seated in the groove of the collet. If the latches are not properly seated when you tighten the
collet nut, the collet may become stuck inside the spindle.
• Never tighten the collet nut without inserting a tool in the collet. Excessively tightening the collet
may damage the latches that hold the collet in the collet nut, making it difficult to remove the
collet from the spindle.
• Keep the overhang length to a minimum when installing the tool. If the overhang length is too
long, the tool may bend and cause injury.
① Hold the collet nut in one hand, and install
the collet. (Fig. 4)
If the collet is difficult to install, tilt the collet
to one side when inserting it, so that the
latches can more easily be seated in the
groove. (Fig. 5)
At this time, make sure that the latches of
the collet nut are properly seated in the
groove of the collet. (Fig. 6)
② Insert the tool, place the provided 22 mm
wrench on the wrench flats of the spindle
shaft and place the provided 27mm wrench
on the collet nut and turn clockwise to
secure the tool.
8 . CHANGING THE TOOL
① Place the provided 22 mm wrench on the wrench flats of the spindle shaft. (Fig. 7)
② Place the provided 27 mm wrench on the collet nut and turn it counterclockwise to loosen the collet and remove
the tool. (Fig. 7)
(The first turn of the collet holder is stiff. Keep turning through the stiffness and the collet will open. The turning
may not become stiff.)
③ Insert the new tool and turn the collet nut clockwise to secure the tool. (Fig. 7)
9 . REPLACING THE COLLET
① Loosen the collet nut with the tool installed as described in
section "8. CHANGING THE TOOL". Keep turning the collet nut
until it comes out of the spindle shaft together with the tool, and
then remove the tool from the collet. (Fig. 8)
② Hold the collet nut in one hand, and tilt the collet to one side to
release it. If the collet is not released, try tilting it to the other
side. (Fig. 5)
③ Install the collet as described in section "7. INSTALLING THE
COLLET".
BMS-5010RA
-1
2.8 kg
CHN - 20
Motor Cord Length : 2 m, 4 m, 6 m and 8 m.
(The Air Hose (φ6 mm) of the same length is attached.)
Motor Cord Length : 2 m, 4 m, 6 m and 8 m.
Tool Diameter Range Collet size Tool Diameter Range
φ5.1 〜φ5.5 φ9.6 〜φ10
φ10
φ5.6 〜φ6 φ10.1 〜φ10.5
φ10.5
φ6.1 〜φ6.5 φ10.6 〜φ11
φ11
φ6.6 〜φ7 φ11.1 〜φ11.5
φ11.5
φ7.1 〜φ7.5 φ11.6 〜φ12
φ12
φ7.6 〜φ8 φ12.1 〜φ12.5
φ12.5
φ8.1 〜φ8.5 φ12.6 〜φ13
φ13
φ8.6 〜φ9
φ9.1 〜φ9.5
(300)
212.8
Fig. 1
(254.5)
214.5
Fig. 2
1400
1200
Output Output
1000
800
600
400
200
0
4 5 6 7 8 9 10
3 -1 (rpm))
min
Fig. 3
Wrench Seat
Groove
Collet
Latch
Collet
Push
Collet Nut
Collet Nut
Fig. 4 Fig. 5
Tool
Collet Nut
Spindle Shaft
Fig. 7
Collet Nut
Fig. 8
Latch
Fig. 6
Loosen
Tighten
Loosen
Spindle Shaft
