Summary of Contents for Timeguard SLB88

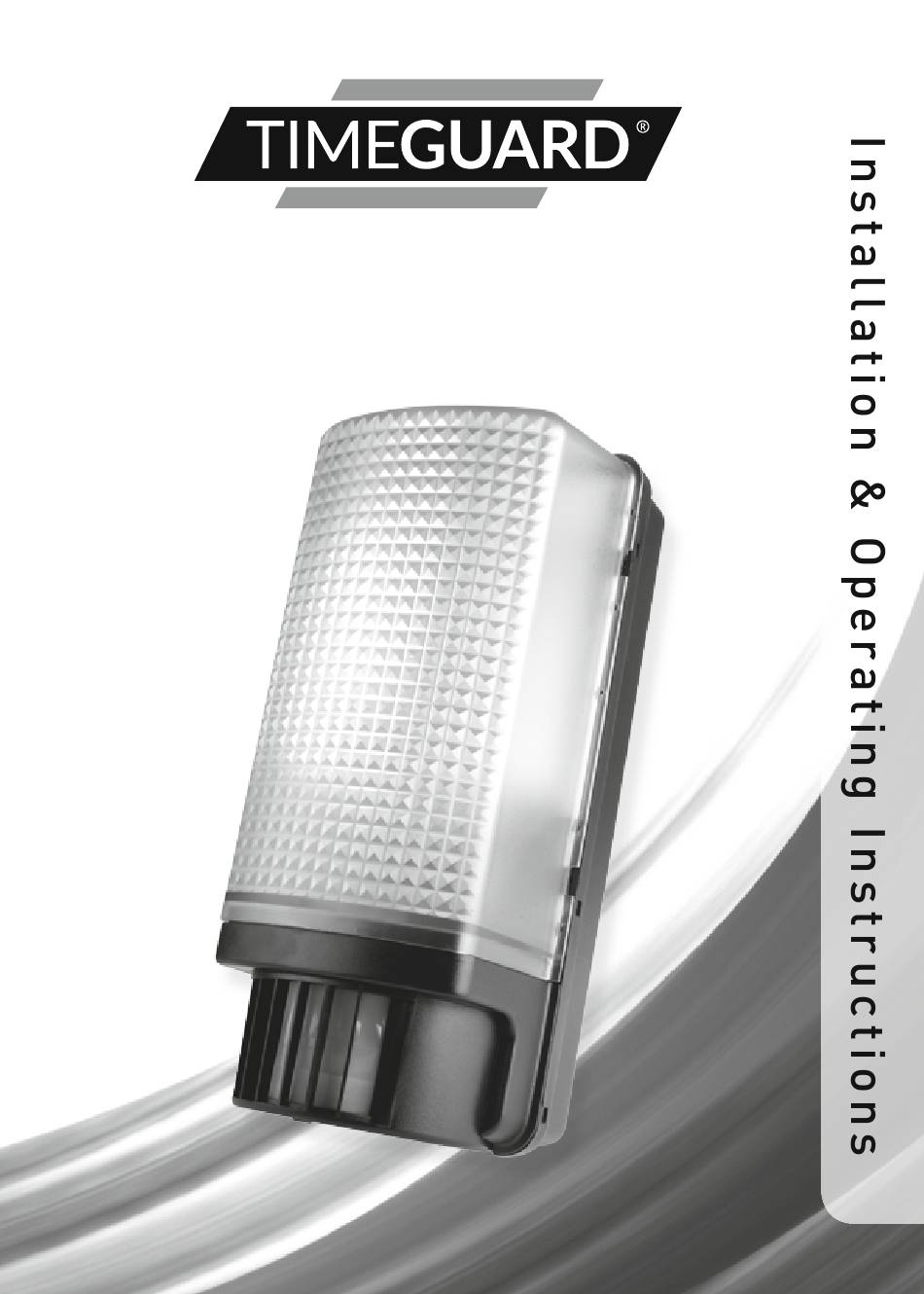

- Page 1 60W PIR Bulkhead Light Model: SLB88 – Black...
-
Page 2: General Information
1. General Information These instructions should be read carefully and retained for further reference and maintenance. 2. Safety • Before installation or maintenance, ensure the mains supply to the luminaire is switched off and the circuit supply fuses are removed or the circuit breaker turned off. -
Page 3: Installation Advice
4. Installation Advice • The motion detector has a number of detection zones, at various vertical and horizontal angles as shown (see Image A). • A moving human body needs to cross/enter one of these zones to activate the sensor. The best all-round coverage is achieved with the unit mounted at the optimum height of 1.8m. - Page 4 TOP VIEW 110º SIDE VIEW 2.5m Lens Mask Less sensitive Restrict long detection Restrict short detection More sensitive Restrict RHS detection Restrict LHS detection...
-
Page 5: Installation
5. Installation 5.1 Ensure the mains supply is switched off and the circuit supply fuses are removed or the circuit breaker turned OFF. 5.2 An isolating switch should be installed to the switch the power ON and OFF to the luminaire. This allows the unit to be easily switched OFF for maintenance purposes. - Page 6 Fitting hole Removable connection cover Fitting hole Grommet Positions...
-
Page 7: Connection Diagram
6. Connection diagram • Connect the 230V 50Hz mains supply cable to the terminal block as follows; HELPLINE 020 8450 0515 ISOLATION SWITCH 230V~50Hz MAINS SUPPLY Live (Brown or Red) Neutral (Blue or Black) Earth (Green/Yellow) -
Page 8: Operation & Testing
• The diagram below also shows the required connections for the addition of slave luminaires. When adding slaves, be sure not to exceed the Total Switchable Loads (see section 3. Technical Specifications). ISOLATION SWITCH 230V~50Hz External Load MAINS SUPPLY 7. Operation & Testing Walk Test Procedure •... - Page 9 • Start moving again, when you are detected again the lamp will illuminate. • Repeat the above, walking at various angles and distances to the unit. This will help you to establish the detection pattern. Setting up for Automatic Operation •...
-
Page 10: Troubleshooting
8.Troubleshooting Problem Solution • Lamp stays ON all The unit may be suffering from false activation. Cover the time at night the sensor lens completely with a thick cloth. This will prevent the sensor from ‘seeing’ anything. If the unit now switches off after the set time duration and does not re-activate, this indicates that the problem was caused by false activation. -
Page 11: Year Guarantee
Note: A proof of purchase is required in all cases. For all eligible replacements (where agreed by Timeguard) the customer is responsible for all shipping/postage charges outside of the UK. All shipping costs are to be paid in advance before... - Page 12 If you experience problems, do not immediately return the unit to the store. Telephone the Timeguard Customer Helpline; HELPLINE 020 8450 0515 or email helpline @ timeguard.com Qualified Customer Support Co-ordinators will be on-line to assist in resolving your query.
