Summary of Contents for Timeguard LEDPROPCB

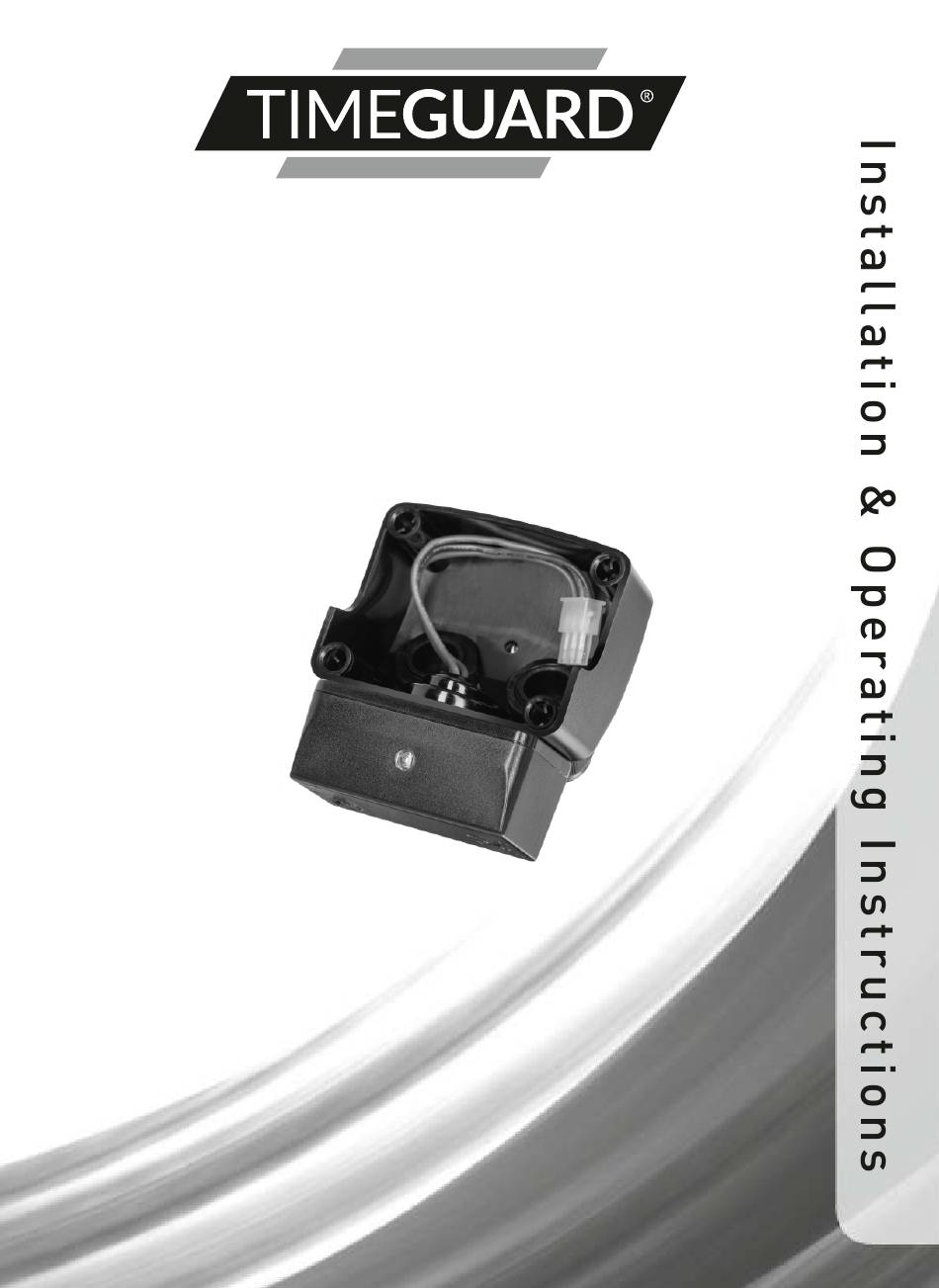

- Page 1 Dedicated Photocell Professional LEDPROPCB & LEDPROPCWH...
- Page 2 1. General Information These instructions should be read carefully and retained for further reference and maintenance. 2. Safety switched off and the circuit supply fused are removed or the circuit breaker turned off. installations of this system and install in accordance with the current IEE wiring and Building Regulations.
- Page 3 Time on View on underside of unit shows adjustments Mains Isolation 'Switch Live' Supply Switch Note: Any floodlight connected to the L Switch Live terminal 'Live Output' will be...
- Page 4 4. Installation *** IMPORTANT *** Switch o the electricity at the fuse box by removing the relevant fuse or switching o the circuit breaker before proceeding with the installation. Jumper Plug bar with one hand, grip the release clips with the other Release clips and pull (push to reconnect).
- Page 5 CONNECTION Connect the mains supply cable to the terminal block on the back plate as follows (see connection diagram ): EARTH (Green / Yellow) NEUTRAL (Blue) LIVE (Brown) Connect the cable from the slave lighting load to the terminal block on the backplate as follows (see connection diagram): EARTH (Green/Yellow) NEUTRAL (Blue)
- Page 6 If you experience problems refer to Troubleshooting Guide. If problems still exist, do not immediately return the unit to store. Telephone the Timeguard Customer Helpline 020 8450 0515 Quali ed Customer Support Co-ordinators will be on-line to assist in resolving your query.
- Page 7 Note: A proof of purchase is required in all cases. For all eligible replacements (where agreed by Timeguard) the customer is responsible for all shipping/postage charges outside of the UK. All shipping costs are to be paid in advance before a replacement...
- Page 8 If you experience problems, do not immediately return the unit to the store. Telephone the Timeguard Customer Helpline; HELPLINE 020 8450 0515 or email helpline @ timeguard.com Quali ed Customer Support Co-ordinators will be on-line to assist in resolving your query.
