Summary of Contents for Timeguard LED88PIRN

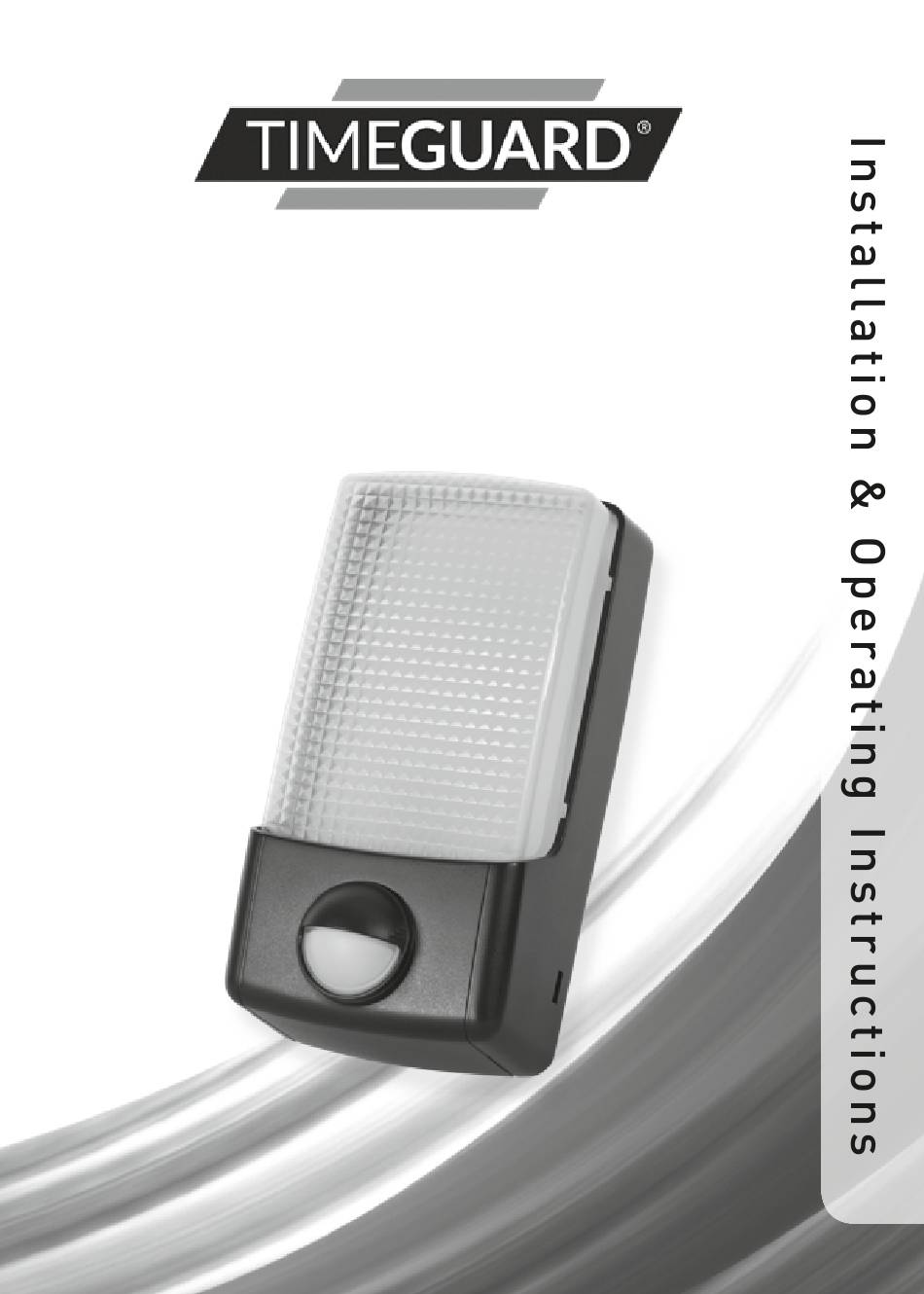

- Page 1 6.5W LED Energy Saver PIR Bulkhead Light Model: LED88PIRN – Black...
-
Page 2: General Information
1. General Information These instructions should be read carefully and retained for further reference and maintenance. 2. Safety • Before installation or maintenance, ensure the mains supply to the luminaire is switched off and the circuit supply fuses are removed or the circuit breaker turned off. -
Page 3: Selecting A Location
TIMEGU ARD LED Detection 4. Selecting a Location • The motion detector has a number of Top View detection zones, at various vertical and horizontal angles as shown TIMEGU ARD LED BULKHEAD PI TIMEGU ARD LED BULKHEA 90° (see Image A) 140°... -
Page 4: Installation
ULKHEAD PIR MANU AL DRA WING Installation 5. Installation 5.1 Ensure the mains supply is switched off and the circuit supply fuses are removed or the circuit breaker turned OFF. 5.2 Remove the wall plate by releasing the 2 lugs, left & right, located MANU AL DRA WING PIR MANU AL DRA WING on the rear bottom section of the luminaire and gently ease the wall... - Page 5 sensitive sensitive Installation Movement 5.5 Fix the wall plate using the correct screws for the wall plugs installed. Movement 90° Less sensitive Angle and Range: nge at 90˚ angle ge at 140˚ angle More sensitive Movement Connecti perating 5.6 Terminate the cable into the terminal block (See section 6. Connection Diagram) ensuring correct polarity is observed and that all bare conductors are sleeved.
-
Page 6: Connection Diagram
6. Connection Diagram Operating Connection Diagram • Connect the 230V 50Hz mains supply cable to the terminal block as shown. Connection Diagram Rotate the sensor cover MAINS SUPPLY Connection Diagram ISOLATION MAINS Operating SWITCH Diagram SUPPLY Dusk/Dawn Adjustments ISOLATION Connection Diagram Rotate the sensor cover SWITCH Dusk/Dawn... - Page 7 7. Operating and Testing Operating Test Mode • Rotate the sensor cover to reveal the adjustment knobs (See Image C). Rotate the sensor cover Click Time Dusk/Dawn Time Time Turn On time adjustment...
- Page 8 SWITCH • The unit can be set up in daylight or at night. The adjustment knobs are factory set, Lux is set to the ‘moon’ setting and the Time is set to Dusk/Dawn a minimum which is fully anti-clockwise (See Image D). Adjustments Dusk/Dawn Time...
- Page 9 Dusk/Da Setting Up for Automatic Operation The TIME setting controls how long the unit remains illuminated following Time Adjustments activation and after all motion ceases. (See Image D, the Time adjustment knob is indicated by the ‘Clock’ symbol). • The minimum time (anti-clockwise) is approx. 5 seconds, whilst the maximum time (clockwise) is approx.
- Page 10 Time Dusk to Dawn (D) Mode • When setting the Time knob to “D”, which is fully clockwise (See Image E), the motion detector of the Bulkhead won’t function. • The lamp will operate depending on the LUX level, i.e. Dusk to Dawn.
-
Page 11: Year Guarantee
Note: a proof of purchase is required in all cases. For all eligible replacements (where agreed by Timeguard) the customer is responsible for all shipping/ postage charges outside of the UK. All shipping costs are to be paid in advance... - Page 12 If you experience problems, do not immediately return the unit to the store. Telephone the Timeguard Customer Helpline; HELPLINE 020 8450 0515 or email helpline @ timeguard.com Qualified Customer Support Co-ordinators will be on-line to assist in resolving your query.
