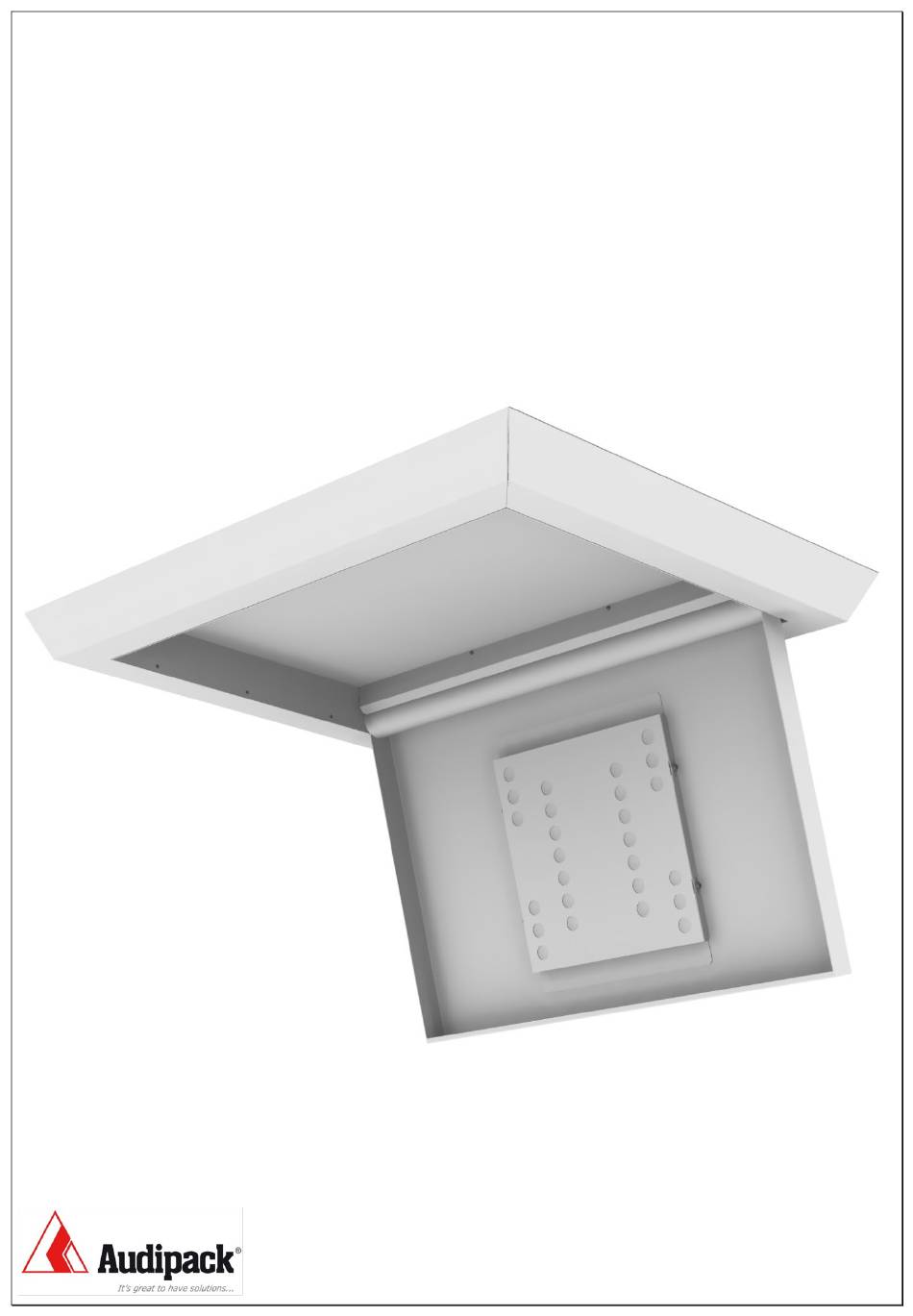

- Page 1 Flat panel fold down ceiling lifts FFCL-XXXXS Installatie handleiding Installation manual...
- Page 2 Index Package contents Accessories Mounting tools Mounting instruction Controller Maintenance & Service...
-
Page 3: Package Contents
Package contents (1X) (4X) M8X20 Threaded rod Magnet M5X16 Countersunk screw (4X) M6 Nylon Ring Clamping bracket M6 flat washer M6 spring washer M6X30 Panhead screw Pagina 4 van 18... - Page 4 Associated accessories 260214 IR remote control set • Please see attachment 261318 Rotary wall switch • Please see attachment Required tools for installation drill drill bit spirit level screw driver boormachine spiraalboor waterpas schroevendraaier tape measure ceiling fixing bolts rolmaat plafondbevestiging Pagina 5 van 18...
- Page 5 Mounting instruction Install the lift system first to the ceiling using all available mounting holes. Please install the appliance with at least two installers. CONCRETE HOUT WOOD BETON BOIS BETON DIN 16168 – M6X40 DIN 571 – M6X35 BETON HOLZ Position the lift and mount it with the M6 bolts.
- Page 6 Mounting instruction Standard integrated printed circuit board (PCB): “261287 Programmable Power supply low voltage print” In: 100-240VAC/5A 50/60 Hz Please see attachment Out: 24 VDC 13A Pagina 7 van 18...
- Page 7 Mounting instruction With optional wireless remote controller: “260192 Remote Control Circuit board” Please see attachment Place the back cover plate first on the ceiling. It will stay on position with the magnets. magnet magnet Pagina 8 van 18...
- Page 8 Mounting instruction Place the side cover plates first to the ceiling. The plates are provided with “key holes” . Copy the hole patterns and drill the holes in the ceiling. Repeat these steps with the last cover plate. side cover plate side cover plate Pagina 9 van 18...
- Page 9 Mounting instruction CONCRETE HOUT BETON WOOD BOIS BETON DIN 16168 – M6X40 DIN 571 – M6X35 HOLZ BETON To join the cover plates use the fixing plates. Pagina 10 van 18...
- Page 10 Mounting instruction Secure the cover plates by rotating the fastening brackets 90 degrees. Position the inner cover plates inside the lift finishing. Pagina 11 van 18...
- Page 11 Mounting instruction Installing the TV to the lift system. Insert the magnets on the back of the monitor, check the length of the bolts and shorten them if needed (separately packed in a plastic bag). Be sure all connections are made properly and allow enough length of cable to remove the monitor without pulling / damaging the connectors.
- Page 12 Mounting instruction Install the TV. Position the magnets so the insert in the adjustable plate with holes. This plate is adjustable in height to line-out the TV. Pagina 13 van 18...
- Page 13 Mounting instruction Place the last cover plate. Pagina 14 van 18...
- Page 14 Mounting instruction 16. Standard programmed The M1 and M2 are free programmable. The lift has a limit down and up position. It is programmed with a PIN. The limit switches are mounted on the motor of the lift system. These indicate ...
- Page 15 Controller Standard unit “End switches” 261288 “Motor pulse” “Keypad” “Motor 1” “Motor 2” “Power supply” “External control” In: 100-240VAC/5A 50/60 Hz Please see attachment Out: 24 VDC 13A External control: control by switch or remote. Pagina 16 van 18...
- Page 16 Controller Pagina 17 van 18...
-
Page 17: Maintenance And Service
Maintenance & Service Clean the lift system with a moist cloth. Dry it afterwards. Do not use aggressive cleaning products. For questions please contact us: support@audipack.com. Or contact our support department by phone +31 (0)79 5931671. Pagina 18 van 18... - Page 18 Email: audipack@audipack.com www.audipack.com Audipack reserves the right to make changes in specifications and other information contained in this document without prior written notice. The information provided herein is subject to change without notice. In no event shall Audipack be liable for any incidental, special, indirect, or consequential damages whatsoever, including but not limited to lost profits, arising out of or related to this manual or the information contained herein, even if Audipack has been advised of, known, or should have known, the possibility of such damages.
