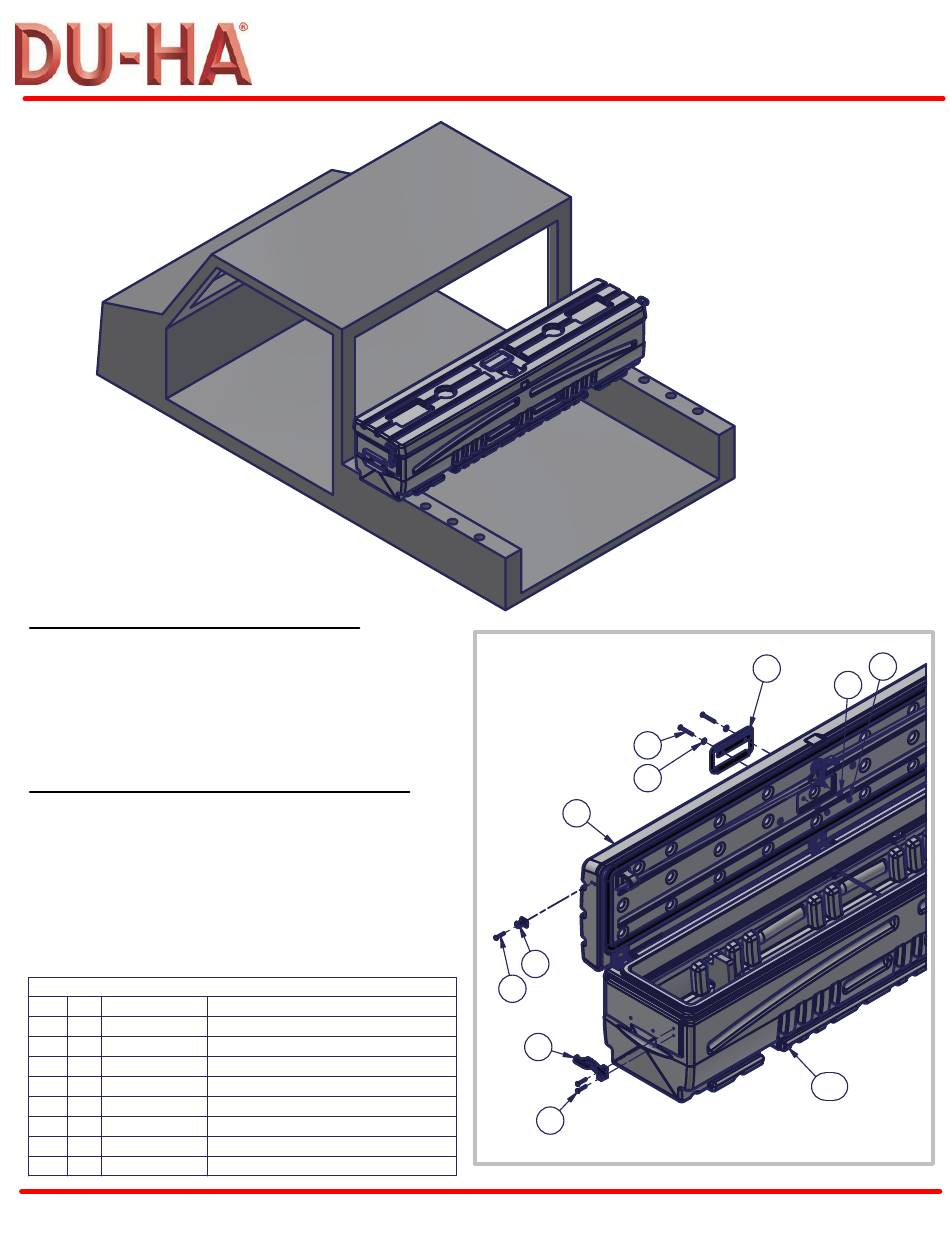

DU-HA 70822 Manual

STEP 1 - Attach Handle to Lid

Place Handle (1) over holes in Lid Top. Insert two Bolts #10 x 1.5"
(2) through Flat Washer - #10 (3), Handle (1), and All-Terrain Lid.
Secure with Flat Sealing Washer (has a rubber backing) - #10 (4) and
Nylock Nut #10 (5) Use 1/8" Hex Key Wrench. Handle may already
be installed.

STEP 2 - Attach Rubber T-Handles

Place Rubber T-Handle (7) over inserts in Base. Insert two Bolts
#10-32 x 1.0" (8) through T-Handle (7) and use 1/8" Hex Key Wrench
to tighten into the inserts, on each end, T-Handle should point
outward when in the up position. Next install the Rubber T-Handle
Keeper (6) on the lid, make sure the alignment knob on the back of
the T-Handle Keeper lines up with the recess in the lid and secure in
place with one Bolt #10-32 x 1.0" (8) by inserting through the
T-Handle Keeper (6) and thread into the insert in the lid, on each end.
ITEM QTY PART NUMBER
1 1 1001044
2 2 1001006
3 2 1001143
4 2 1001244
5 2 1001144
6 1 1001235
7 1 1001235
8 3 1001260
All-Terrain
Parts List
DESCRIPTION
Handle - 90 Degree Metal- Spring Loaded
Screw #10-24 x 1.50 SS
Washer - Flat #10 x 1/2 OD SS
Washer - Bond Sealing #10 SS
Nut Nylock #10-24 SS
Latch - Rubber T- Handle - Keeper
Latch - Ruber T- Handle
Screw BHSCS #10-32 x 1" SS

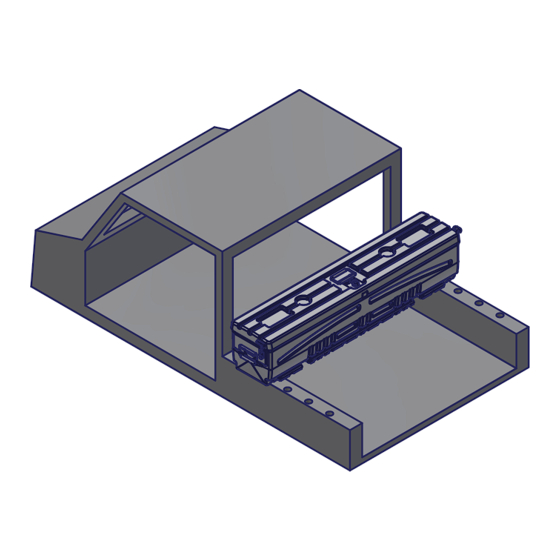

70822 - DU-HA All-Terrain for Ranger
NOTE: Works on Mid-size box only.
Mid-Size box has 7 holes across the
front of the box and the Full-Size box has
9 holes across the front of the box.
2
3
Lid
6
8
7
8
UTV - Mid-Size Box
1
4
Base
5
