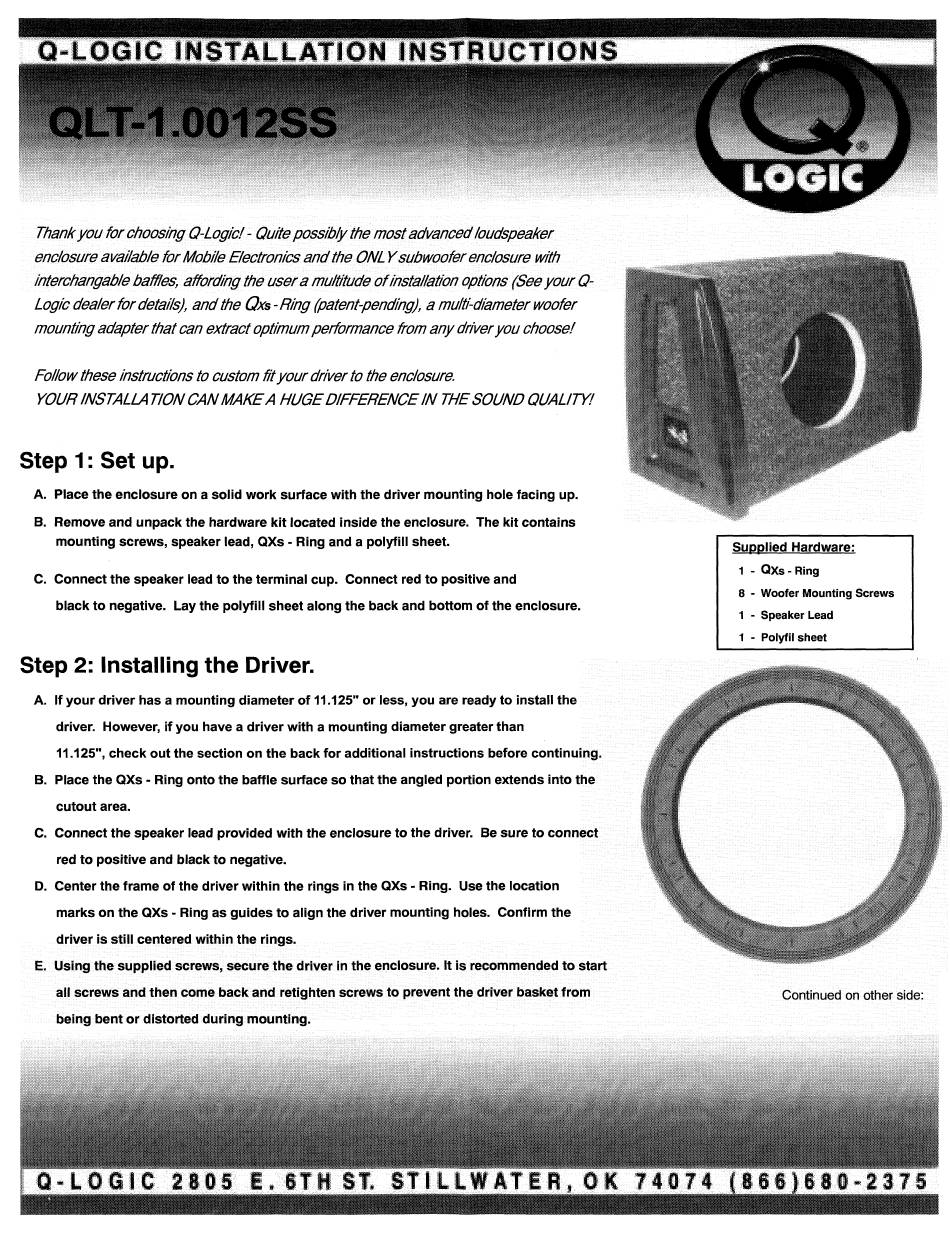

Thankyou for choosing Q-logic! - Quite possibly the most advancedloudspeaker
enclosure available for Mobile Electronics andthe ONl Ysubwoofer enclosure with
interchangable baffles, affording the usera multitude ofinstallation options (See your Q-
logic dealer for details), and the Qxs - Ring (patent-pending), a multi-diameter woofer
mounting adapter that can extract optimum performance from any driveryou choose!
Follow these instructions to custom fityour driver to the enclosure.
YOUR INSTAlLA TION CAN MAKEA HUGE DIFFERENCEIN THE SOUND QUALITY!
Step 1: Set up.
A. Place the enclosure on a solid work surface with the driver mounting hole facing up.
B. Remove and unpack the hardware kit located inside the enclosure. The kit contains
mounting screws, speaker lead, QXs - Ring and a polyfill sheet.
C. Connect the speaker lead to the terminal cup. Connect red to positive and
black to negative. Lay the polyfill sheet along the back and bottom of the enclosure.
Step 2: Installing the Driver.
A. If your driver has a mounting diameter of 11.125" or less, you are ready to install the
driver. However, if you have a driver with a mounting diameter greater than
11.125", check out the section on the back for additional instructions before continuing.
B. Place the QXs - Ring onto the baffle surface so that the angled portion extends into the
cutout area.
C. Connect the speaker lead provided with the enclosure to the driver. Be sure to connect
red to positive and black to negative.
D. Center the frame of the driver within the rings in the QXs - Ring. Use the location
marks on the QXs - Ring as guides to align the driver mounting holes. Confirm the
Supplied Hardware:
1 -
Qxs -
Ring
8 - Woofer Mounting Screws
1 - Speaker Lead
1 - Polyfil sheet
Continued on other side:
