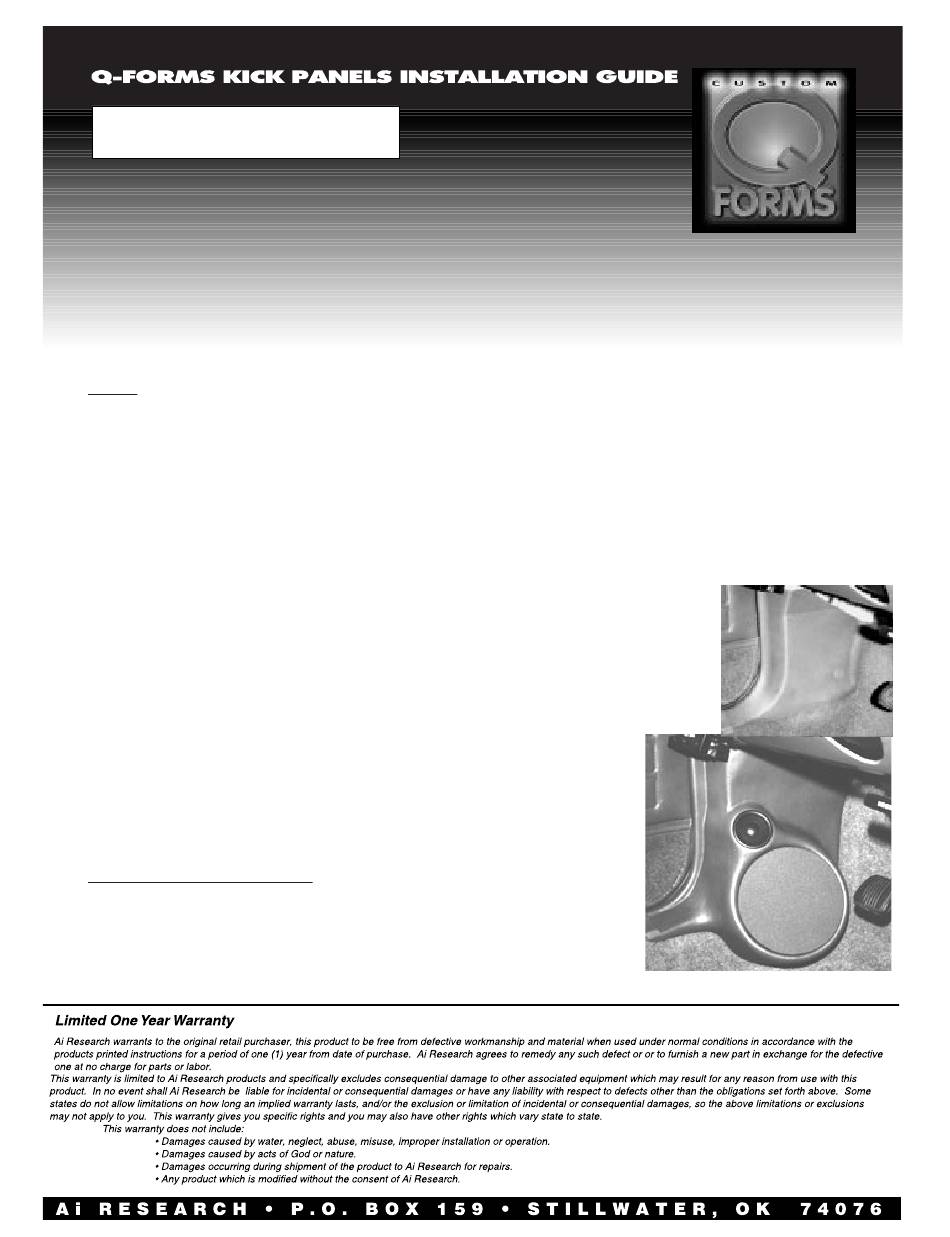

QL-K2001
Ford Mustang 1987-1993
(Does not fit Mustang Convertible)
Remove Original Kick Panel
• Remove threshold plate by removing attachment screws.
• Remove plastic fasteners at lower/forward section of panel.
• Pull panel outward from bulkhead.
• Tilt bottom front edge upward, slide panel rearward to clear hood latch handle, and pull kick panel out of
vehicle.
NOTE: Always check the fit of the Q-forms into the vehicle before any cutting or modifications are done.
Install Speakers
• Cut the speaker holes into the Q-Forms before installing them into the vehicle.
• Install the speakers into the Q-Forms after they have been installed into the vehicle.
• Install speaker wiring and crossover network as per manufacturer's instructions.
• Using a hole saw of correct size, position pilot drill on dimple at center of speaker mounting surface.
A die grinder or keyhole saw may also be used.
• Lay the supplied polyfill in and around the Q-forms cavity behind the speakers.
• Cut speaker mounting holes taking care as saw exits rear of panel.
• Secure speakers into locations by driving screws through speaker bezel
and into mounting surface.
Be careful to center speakers in mounting surface to allow clearance for
grill shell.
• Install tweeters as per manufacturer's instructions.
Install New Q-Forms Kick Panels (Always predrill all mounting screw locations)
• Lay Q-forms kick panel in approximate location and connect speaker
wiring.
• Lay panel into permanent position previously held by original kick
panel. Be sure front edge of panel fits tightly against rubber welt.
• Reinstall threshold plate using original screws. It may be helpful to
hold panel tightly against rubber welt while tightening front screw.
• Install screw through hole at front upper edge of panel and drive
into inner bulkhead sheet metal. It may be helpful to predrill screw
pilot hole if installed without power tools.
• Install grill shells by pressing snugly into woofer cavity.
QL-K2001 Included Hardware:
(2) 1-1/2" screws
(2) 6" x 8" polyfill pieces
(2) 6.25" Q-grills
Estimated Installation Time: 1.5 Hrs.
