Q-Logic QL-C1PTC210 Installation Instructions

QL- C1PTC210
2000-up Chrysler PT Cruiser

Overview:

This vehicle specific subwoofer enclosure is designed to
fit in the rear hatch area of the PT Cruiser. The enclo-
sure mounts using the same slots that are used by the
rear package tray. The enclosure can be mounted at
two different positions in the PT Cruiser. It can be
mounted low in the storage area with the package tray

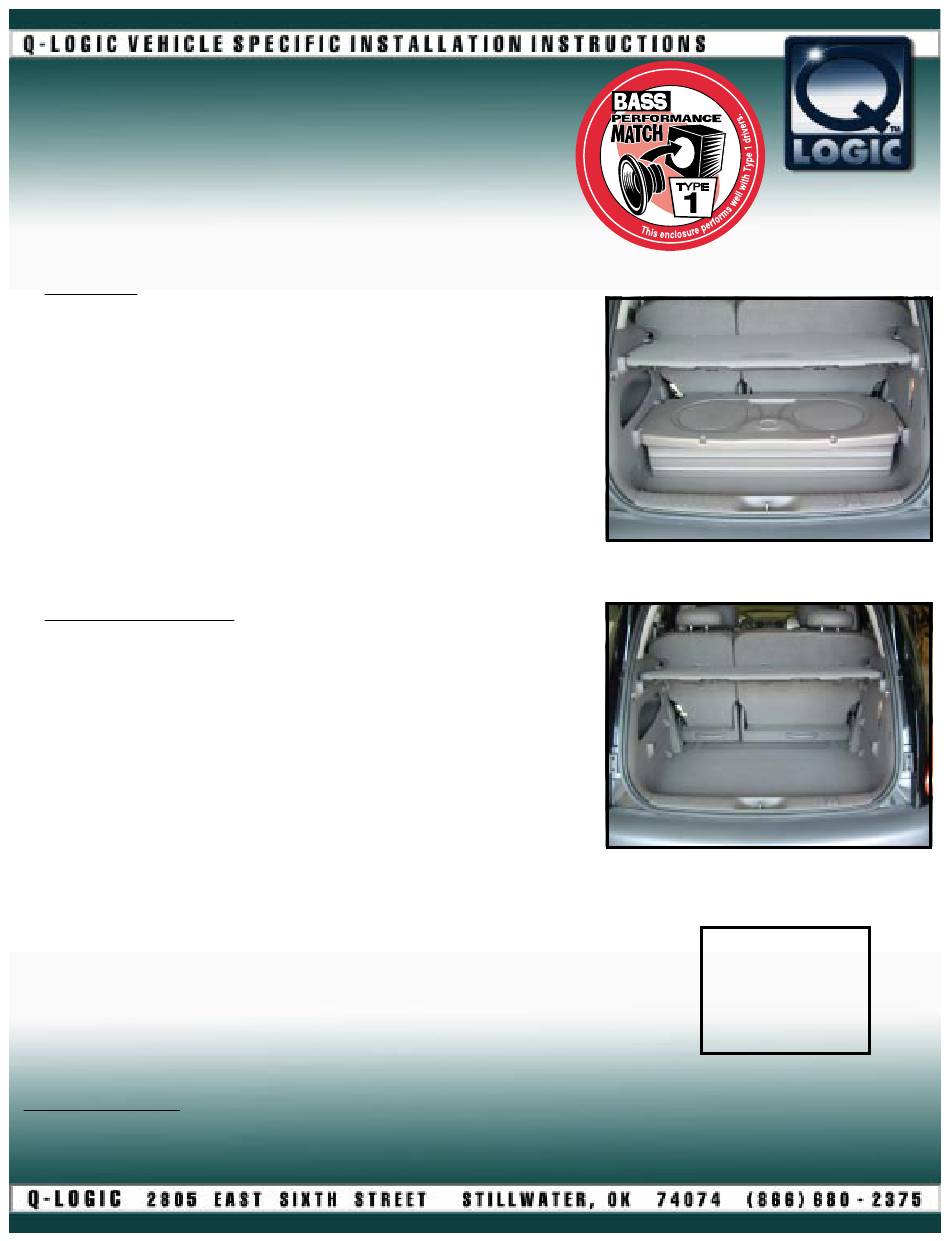

in the upper position (AS SHOWN IN PHOTOGRAPH >)
or can be mounted in the upper location allowing the
package tray to mount in one of the two lower locations.
Please follow the instructions carefully to safely mount
the enclosure and ensure the best performance.

Speaker Installation:

Remove the contents of the hardware packs and attach
the speaker leads to the terminal cups located inside the
enclosure. Be sure to wire the positive to red and the
negative to black.
Place a polyfill sheet in the bottom of each side of the
enclosure. Use the supplied foam tape and apply the
tape to the mounting surface on the back of the speaker
basket. Connect the speaker leads to the speakers. Be
sure to wire the positive to red and the negative to
black.
Place the speakers in the mounting locations and se-
cure using the supplied 1" screws.
Place the rubber "U-channel" over the edge of the
supplied grills and press into the grill recesses on the
top of the enclosure.
Continued on other side.
TM
SUPPLIED HARDWARE:
2 - speaker leads
8 - 1" woofer screws
2 - color matched grills
2 - polyfill sheet
2 - 40" U-channel
2 - Foam Tape Roll
