MAINTENANCE
1
2
3
4
5
6
7
8
3
9
10
11
8-9
B
Y-44
Y-2762
4
Y-2763
Y-2764

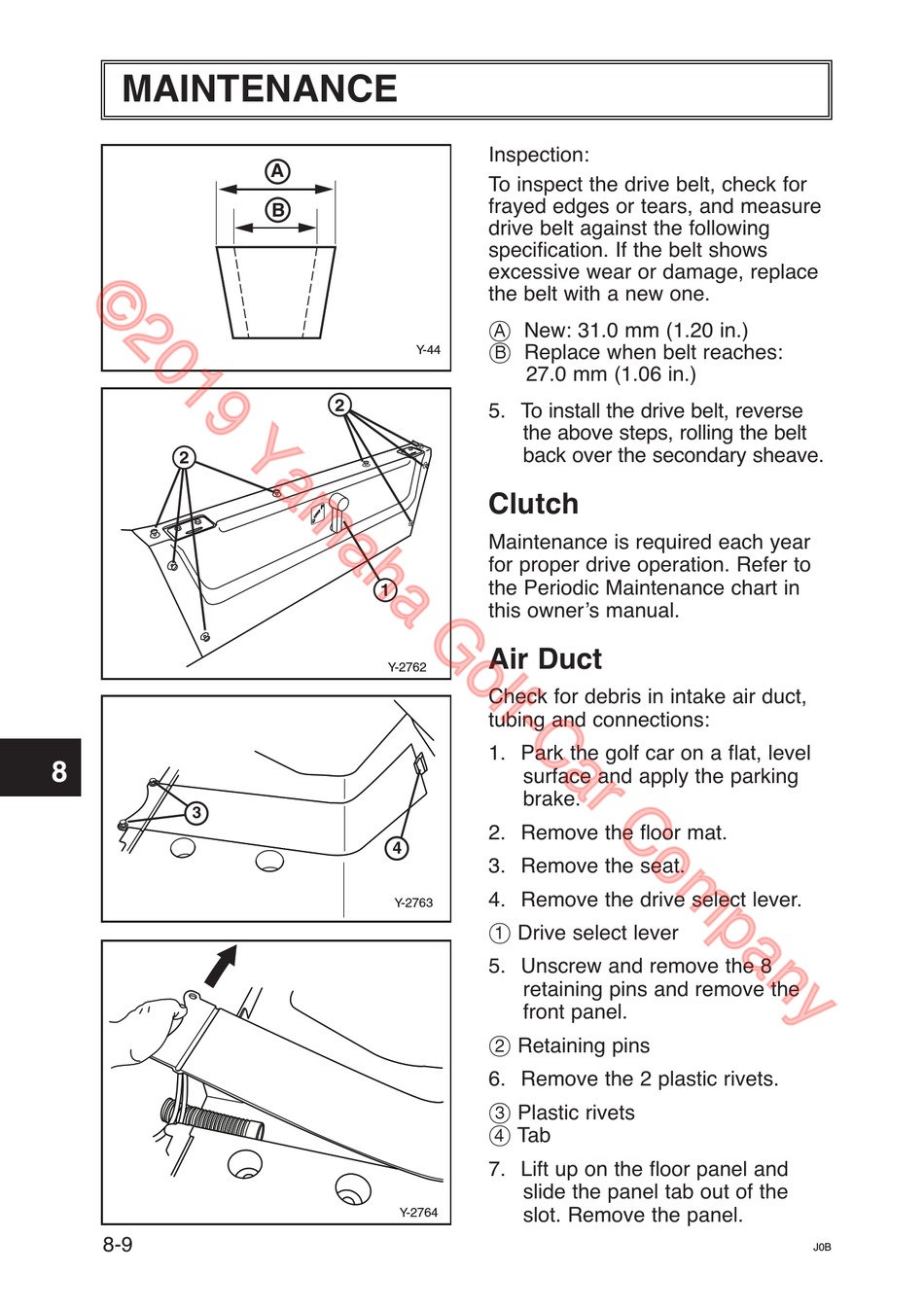

Inspection:
To inspect the drive belt, check for
frayed edges or tears, and measure
drive belt against the following
specification. If the belt shows
excessive wear or damage, replace
the belt with a new one.
å New: 31.0 mm (1.20 in.)
∫ Replace when belt reaches:
27.0 mm (1.06 in.)
5. To install the drive belt, reverse
the above steps, rolling the belt
back over the secondary sheave.
Clutch
Maintenance is required each year
for proper drive operation. Refer to
the Periodic Maintenance chart in
this owner's manual.
Air Duct
Check for debris in intake air duct,
tubing and connections:
1. Park the golf car on a flat, level
surface and apply the parking
brake.
2. Remove the floor mat.
3. Remove the seat.
4. Remove the drive select lever.
1 Drive select lever
5. Unscrew and remove the 8
retaining pins and remove the
front panel.
2 Retaining pins
6. Remove the 2 plastic rivets.
3 Plastic rivets
4 Tab
7. Lift up on the floor panel and
slide the panel tab out of the
slot. Remove the panel.
