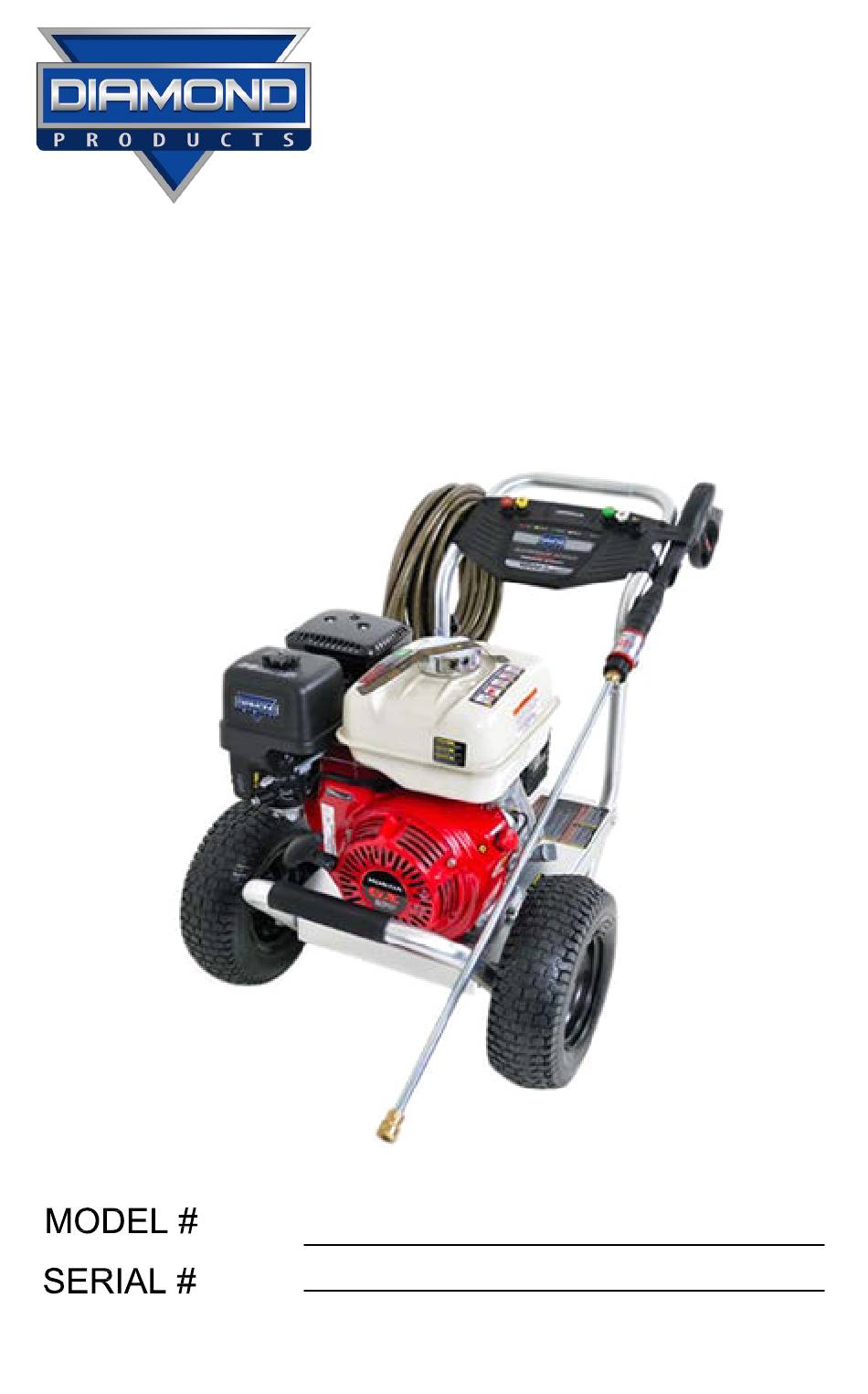

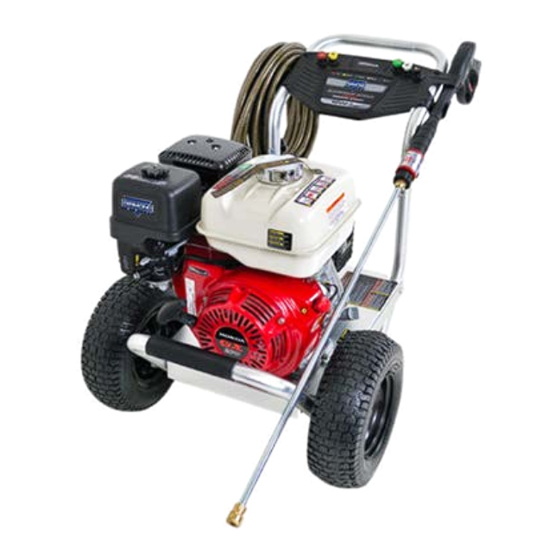

- Page 1 MAX 40 PRESSURE WASHER 4000 PSI - 3.3 GPM OPERATOR'S MANUAL IMPORTANT: READ OPERATOR'S MANUAL CAREFULLY Please fill out & return your warranty card! WP64033 Diamond Products www.diamondproductsus.com Printed in the U.S.A.
- Page 2 Diamond Products US. Warranty Information Thank you for purchasing a Diamond Products US product. Warranty registration is quick and easy. Your registration will allow us to serve you better over the lifetime of the product. To register your product, email your warranty card information to: info@diamondproductsus.com...
-
Page 3: Safety Guidelines - Definitions
California to cause cancer, birth defects or other reproductive harm. In addition, some cleaning products and dust contain chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Wash hands after handling. Diamond Products Operator's Manual... - Page 4 • Use of acids, toxic or cor r o s ive • Do not spray flammable liquids. chemicals, poisons, in s ec t i c ides, or any kind of flam m a b le solvent with this product could re s ult in se r i o us injury or death. Diamond Products Operator's Manual...
- Page 5 • To relieve sys t em pres s ure, shut off engine, turn off water sup p ly and pull gun trigger until water stops flowing. • Use only accessories rated equal to or higher than the rating of the pressure washer. Diamond Products Operator's Manual...
- Page 6 • Do not use pressure washer while the spray. Im p rop e r control of gun/ standing on a ladder. wand can re s ult in in j u r ies to self and • Grip gun/wand firmly with both hands. others. Expect the gun to kickback when triggered. Diamond Products Operator's Manual...
- Page 7 • Wear pro t ec t ive clothing to protect eyes and skin from con t act with sprayed materials. Diamond Products Operator's Manual...
- Page 8 WARNING: RISk Of INJURy fROM LIfTING WhAT CAN hAPPEN hOW TO PREVENT IT • Serious injury can result from • The pressure washer is too heavy to be attempting to lift too heavy an object. lifted by one person. Obtain assistance from others before lifting. Diamond Products Operator's Manual...
- Page 9 Connect the high pressure Connect the other end hose to the pump outlet. of the high pressure See label #1 on unit. hose to the spray gun. See label #2 on unit. Diamond Products Operator's Manual...
- Page 10 See label #11 on unit. See label #12 on unit. WARNING: This Guide is not a substitute for reading the operator's manual. User must read and understand operator's manual before using this product. -10- Diamond Products Operator's Manual...
- Page 11 See how To Use Spray Wand instructions in Operation section. Detergent Siphon hose (not shown): Feeds cleaning agents into the pump to mix with the water. See how To Apply Chemicals/Cleaning Solvents instructions in Operation section. G. handle -11- Diamond Products Operator's Manual...
- Page 12 Damage to the engine will occur if the engine is run without oil, this damage will not be covered under warranty. NOTICE: The high-pressure pump was filled with oil at the factory. Always check oil level before using (refer to Maintenance for more information). -12- Diamond Products Operator's Manual...
-
Page 13: Operation
(R) on the collar as shown in Figure 6. Rotating the Dial-N-Wash (M) counterclockwise until it stops places it in the MIN pressure setting, the arrow (R) will align with the MIN pressure bar as shown in Figure 7. -13- Diamond Products Operator's Manual... - Page 14 White vinyl, painted siding low pressure applies cleaning Low pressure solutions spray is safe on all Black surfaces. Always verify compatibility of cleaning solution prior to use. -14- Diamond Products Operator's Manual...
- Page 15 NOTE: Chemicals and soaps will not siphon if the black soap nozzle is not installed on the spray wand. STARTING (FIG. 10–13) WARNING: To reduce the risk of injury, read the pressure washer instruction manual and the engine instruction manual before starting pressure washer. -15- Diamond Products Operator's Manual...
- Page 16 Check engine oil level. Refer to Engine Owner's Manual for correct procedure. Check pump oil level. The oil level should come to the dot in the middle of the sight glass. Refer to the Pump paragraph under Maintenance. -16- Diamond Products Operator's Manual...
-
Page 17: Shutting Down
SHUTTING DOWN After each use, if you have applied chemicals, place detergent siphon hose into container of clean water and draw clean water through chemical injection system to rinse system thoroughly. -17- Diamond Products Operator's Manual... -
Page 18: Maintenance
Loosen pump oil fill plug (BB). Place a container under the pump oil drain plug (CC). Remove pump oil drain plug. After oil is drained, replace pump oil drain plug. Tighten securely. Refill pump using an SAE 15W-40 oil. -18- Diamond Products Operator's Manual... - Page 19 30 days and/or when freezing temperatures are expected. NOTE: Using pump guard helps provide proper lubrication to the internal seals of the pump regardless of temperature or environment. NOTICE: Risk of property damage. Use only recommended. Other products could be corrosive and/or contain alco-hol which may cause pump damage. -19- Diamond Products Operator's Manual...
-
Page 20: Specifications
Warranty Service Center for warranty inspection. The judgments and decisions of the manufacturer concerning the validity of warranty claims are final. -20- Diamond Products Operator's Manual... - Page 21 FRAME (DEFECTS IN MATERIAL AND WORkMANSHIp) Ten (10) years from date of purchase. OTHER COMpONENTS (DEFECTS IN MATERIAL AND WORkMANSHIp) Includes nozzles, hoses, spray guns, wands, tires, feet Ninety (90) days from date of purchase. -21- Diamond Products Operator's Manual...
-
Page 22: Troubleshooting Guide
Choke in the “Choke” position Move choke to the “No Choke” po si tion High pressure hose is too long Use high pressure hose under 100 feet (30 m) -22- Diamond Products Operator's Manual... - Page 23 Pump head or tubes Please contact our customer service department at damaged from freezing info@diamondproductsus.com Pump pulsates Nozzle obstructed See Nozzle Cleaning paragraph in the Maintenance section for the correct procedure -23- Diamond Products Operator's Manual...
- Page 24 Clean vent plug; blow air through it to remove any blockage. If prob lem persists, replace plug Air filter filled with oil Clean and/or replace filter element. Refer to Engine Owner's Manual for correct procedure. -24- Diamond Products Operator's Manual...
-
Page 25: Replacement Part List
M6-1.0 X 31 TORX PANHEAD W/SHOULDER SCREW (1) 5/16 X .045 WASHER (1) .875 X .600 WAVE TYPE SPRING (1) PART# 7106901 PUMP, SERVICE ASSEMBLY 4000PSI PUMP (1) 3/8-16 BOLT (4) SPLIT 3/8 WASHER (4) KEY, SHAFT 1/4SQ X 1 1/2 (1) -25- Diamond Products Operator's Manual...
