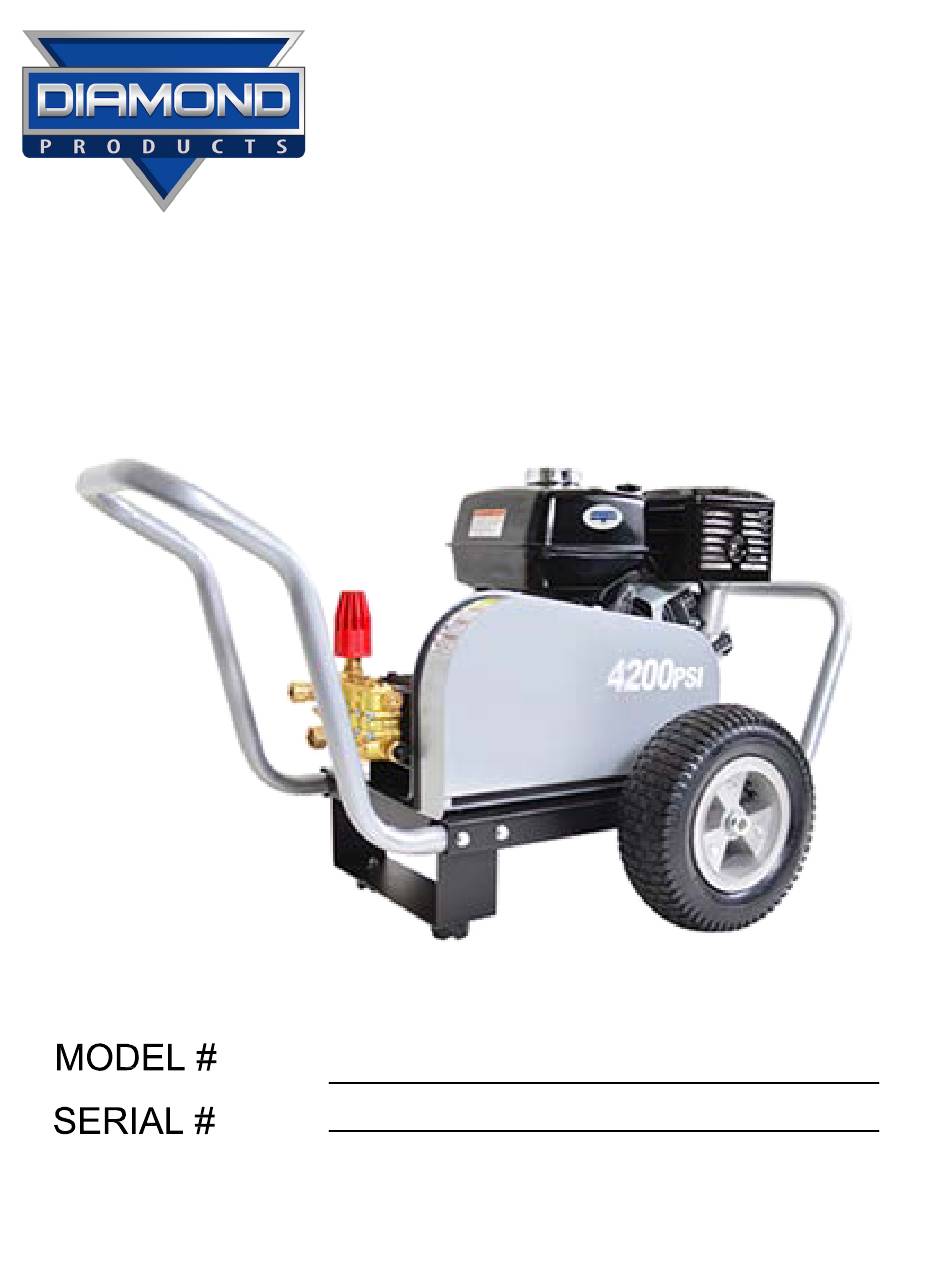

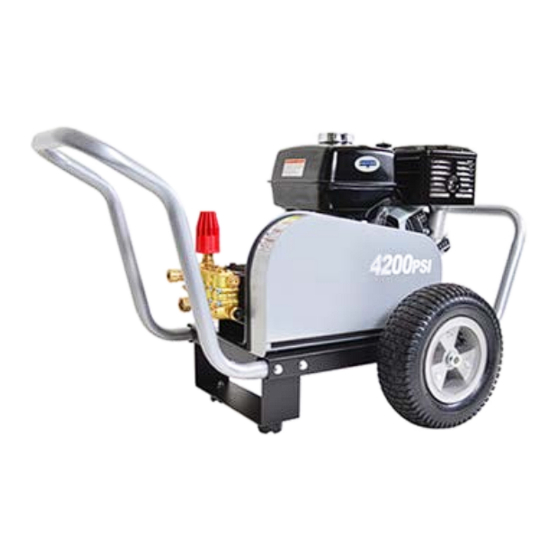

- Page 1 MAX 40 PRESSURE WASHER 4200 PSI OPERATOR'S MANUAL IMPORTANT: READ OPERATOR'S MANUAL CAREFULLY Please fill out & return your warranty card! WP64200 Diamond Products www.diamondproductsus.com Printed in the U.S.A.
-
Page 2: Warranty Information
Diamond Products US. Warranty Information Thank you for purchasing a Diamond Products US product. Warranty registration is quick and easy. Your registration will allow us to serve you better over the lifetime of the product. To register your product, email your warranty card information to: info@diamondproductsus.com... -
Page 3: Important Safety Warnings
CAUTION, used with the safety alert symbol, indicates a hazardous situation which, if not avoided, could result in minor or moderate injury. NOTICE is used to address practices not related to personal injury. Diamond Products Operator's Manual... -
Page 4: Important Safety Instructions
- Even after you shut off the unit, there is high pressure water left in the pump, hose and gun until you release it by triggering the gun. ALWAYS relieve the pressure in the system immediately after shutdown. Diamond Products Operator's Manual... -
Page 5: Detergent Cleaning Precautions
- DO NOT tamper with unloader valve adjustment or alter engine speed. - DO NOT substitue any component parts on this machine. Use ONLY Diamond Products replacement parts as originally installed. The use of incorrect parts could cause serious injury. -
Page 6: Machine Warning Tags And Specification Plate
Indicates the proper nozzle orifice size used with the machine. Nozzle Size Indicates type of engine fuel required. Engine Fuel Indicates type of burner fuel required. (Hot water machines only) Burner Fuel Maximum allowable incoming water temperature allowed. Max Inlet Water Temp Pump RPM. Diamond Products Operator's Manual... -
Page 7: Glossary Of Terms
Belt Cover – Safety device to provide protection from moving components of belt drive system. Under no circumstances should the pressure washer be operated without the belt cover securely in place. Diamond Products Operator's Manual... -
Page 8: Machine Preparation
3. Check fuel supply (Fig. 2.1-3). Fill if necessary (see engine owner’s manual.) 4. Check the hose, gun, and accessories for damage or wear. Repair or replace if necessary. 5. Check the female quick-couplers for o- ring seals. Replace if necessary. Hose Connections Diamond Products Operator's Manual... - Page 9 - NEVER leave discharge hose lying on the floor or ground to be driven over by vehicles or damaged by falling objects. ALWAYS coil and hang the hose immediately after use. If there is any doubt about hose condition, replace the hose immediately. Diamond Products Operator's Manual...
-
Page 10: Before Starting Machine
There should be NO nozzle or obstruction at the end of the extension. 4. After engine starts, open choke gradually. 5. Let engine warm up to normal operating temperature. Diamond Products -10- Operator's Manual... -
Page 11: Pressure Washing
Failure to release pressure before disconnecting the hose quick coupler will result in the quick coupler o-ring seal blowing out. This o-ring must be replaced before operating machine. Diamond Products -11- Operator's Manual... -
Page 12: Cleaning Nozzles
THE SOAPER (BLACK) A low pressure nozzle used to apply cleaning solutions. Note: Cleaning solutions cannot be applied with high pressure spray tips (Red, Yellow, Green or White). Diamond Products -12- Operator's Manual... - Page 13 - Avoid working on hot surfaces or in direct sunlight to minimize the chances of the detergent drying, which may result in damaging painted surfaces. Be certain to rinse a small section at a time. Diamond Products -13- Operator's Manual...
-
Page 14: Moving And Storage Instructions
- Before storing unit for long periods of time, drain fuel tank and carburetor of all fuel (see engine manual). As an alternative, use a gasoline preservative additive when storing the unit for up to 6 months. Diamond Products -14-... -
Page 15: Pump Crankcase Lubrication
- Before storing unit for long periods of time, drain fuel tank and carburetor of all fuel. As an alternative, use a commercially available gasoline preservative additive when storing machine for shorter periods (up to 6 months). Diamond Products -15- Operator's Manual... - Page 16 Move to level surface. Tire pressure too low or flat. Inflate tire(s) or repair leak(s). l i o . l l o i t Note: A.P.R. Spring should be replaced every year or after every 500 hours. Diamond Products -16- Operator's Manual...
-
Page 17: Pressure Washer Limited Warranty
Pressure Washer Limited Warranty At Diamond Products, we distribute top quality industrial / commercial / personal pressure washers that are designed for heavy-duty use, maximum reliability, durability, and long life. Our pressure washers are built for all duty applications and steady use due to higher quality levels. - Page 18 Freight damage • Freeze damage • Damage caused by parts or accessories not obtained from / or approved by Diamond Products • Normal wear of moving parts or components affected by moving parts. Engines Covered by engine manufacturer warranty. See engine manual.
