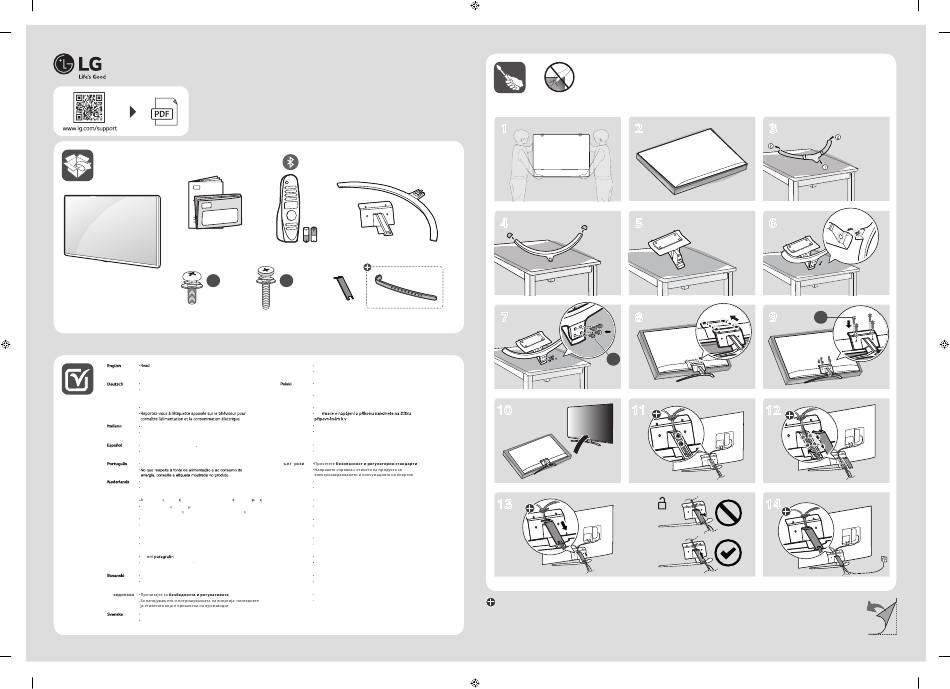

Hide thumbs Also See for 49SM85 Series:

Advertisement

Quick Links

Head
Head
washer
Head
Head
Read Safety and Regulatory.
ad
washer
For the power supply and power consumption, refer
washer
to the label attached to the product.
washer
Lesen Sie die Sicherheitsanweisungen und Richtlinien.
her
Informationen zur Stromversorgung und zum Stromver-
brauch sind dem Etikett auf dem Gerät zu entnehmen.
Français
Lire le document Sécurité et mesures réglementaires.
Leggere il manuale Sicurezza e normative.
Per l'alimentazione e il consumo di energia, consultare
l'etichetta applicata sul prodotto.
Leer Seguridad y normativa.
Para obtener información acerca de la fuente de alimentación
y el consumo de energía, consulte la etiqueta del producto.
Ler informações sobre a Segurança e Regulamentos.
Veiligheidsinformatie en regelgeving lezen.
Informatie over de stroomvoorziening en het stroomver-
bruik vindt u op het label op het product.
Ελληνικά
ιαβάστε τι οδηγίε για την ασφάλεια και του κανονισ ού .
Για πληροφορίε σχετικά ε την τροφοδοσία και την
κατανάλωση ενέργεια , δείτε την ετικέτα του προϊόντο .
Preberite varnostne in regulativne vidike.
Slovenščina
Podatke o napajanju in porabi energije si oglejte na
nalepki izdelka.
Hrvatski
Pročitajte Sigurnost i usklađenost s propisima.
Informacije o napajanju i potrošnji energije potražite na
oznaci koja se nalazi na proizvodu.
Shqip
Lex
"Siguria dhe rregullimi".
Për ushqimin me energji dhe konsumin e energjisë
shih etiketën e ngjitur në produkt.
Pročitajte dio Sigurnost i propisi.
Informacije o napajanju električnom energijom i potrošnji električne
energije možete pronaći na naljepnici koja se nalazi na proizvodu.
Ма
Läs Säkerhet och föreskrifter.
För strömförsörjning och strömförbrukning, se etiketten
på produkten.
*MFL71079822*
AA
a
b
x 4
x 4
(M5 x L14)
(M4 x L20)
Magyar
Biztonság és szabályozás megtekintése.
A tápellátásra és az áramfogyasztásra vonatkozó
adatok a készülékre ragasztott címkén találhatók.
Prosimy o przeczytanie Zasad bezpieczeństwa i uwag
dotyczących przepisów.
Dokładne informacje o zasilaniu i zużyciu energii są
umieszczone na etykiecie znajdującej się na produkcie.
Přečtěte si část Bezpečnost a zákonné předpisy.
Česky
Info
.
ýrobku.
Slovenčina
Prečítajte si bezpečnostné a regulačné informácie.
Informácie o zdroji napájania a spotrebe elektrickej
energie nájdete na štítku pripojenom k zariadeniu.
Română
C onsultaţi manualul referitor la siguranţă şi reglementare.
Pentru sursa de alimentare şi consumul de energie,
consultaţi eticheta ataşată pe produs.
Б
а
Eesti
Lugege ohutus- ja normatiivteavet.
Toiteallika ja energiatarbe kohta saate teavet tootele
kinnitatud märgiselt.
Lietuvių k.
Perskaitykite Saugos ir norminius reikalavimus.
Informacijos apie maitinimą ir energijos sąnaudas
rasite etiketėje ant gaminio.
Latviešu
Izlasiet sadaļu Drošība un normatīvi.
Informāciju par elektroenerģijas padevi un patēriņu
skatiet izstrādājumam pievienotajā etiķetē.
Srpski
Pročitajte odeljak Bezbednost i regulatorna pitanja.
Da biste saznali informacije u vezi sa napajanjem i
potrošnjom energije, pogledajte oznaku na proizvodu.
Norsk
Les sikkerhet og forskrifter.
.
Hvis du vil ha informasjon om strømforsyning og strømfor-
,
bruk, kan du se på etiketten som er festet på produktet.
Dansk
Læs sikkerhed og lovmæssige bestemmelser.
Du kan få oplysninger om strømforsyning og strømfor-
brug på mærket, der sidder på produktet.
.
Suomi
Lue Turvallisuus ja säännökset -osio.
,
Tietoja virtalähteestä ja virrankulutuksesta on laitteeseen
.
kiinnitetyssä tarrassa.
(1902-REV00)
SM86*
1
4
7
10
.
.
13
: Depending on model / Abhängig vom Modell / Selon le modèle / In base al modello / En función del modelo / Dependendo do modelo / Afhankelijk van
het model / Ανάλογα με το μοντέλο / Odvisno od modela / Típusfüggő / Zależnie od modelu / Závisí na modelu / V závislosti od modelu / În funcţie
de model / В зависимост от модела / Sõltub mudelist / Priklauso nuo modelio / Atkarībā no modeļa / U zavisnosti od modela / Ovisno o modelu / Në
varësi të modelit / Ovisno o modelu / Во зависност од моделот / Beroende på modell / Avhengig av modell / Afhængigt af modellen / Mallin mukaan
2
3
5
6
8
9
a
11
12
14
b

Advertisement

Table of Contents
loading

Summary of Contents for LG 49SM85 Series

  • Page 1 *MFL71079822* (1902-REV00) SM86* (M5 x L14) (M4 x L20) Head Head washer Head Head Read Safety and Regulatory. Magyar Biztonság és szabályozás megtekintése. washer For the power supply and power consumption, refer A tápellátásra és az áramfogyasztásra vonatkozó washer to the label attached to the product. adatok a készülékre ragasztott címkén találhatók.
  • Page 2 Head washer 90° 1683 1043 369.8 65.2 41.6 38.8 75SM8610PLA AC 100-240 V ~ 50/60 Hz Power requirement...
  • Page 3 OWNER’S MANUAL Safety and Reference LED TV* * LG LED TV applies LCD screen with LED backlights. Please read this manual carefully before operating your set and retain it for future reference. *MFL71040003* www.lg.com Copyright © 2019 LG Electronics Inc. All Rights Reserved.
  • Page 4 Warning! Safety • Ventilation - Install your TV where there is proper ventilation. Do not install in instructions a confined space such as a bookcase. - Do not install the product on a carpet or cushion. - Do not block or cover the product with cloth or other materials while unit is plugged in.
  • Page 5 • Use only an authorized attachments / accessories approved by in electric shock or product damage. LG Electronics. Otherwise, this may result in fire, electric shock, malfunction, or product damage. • Never disassemble the AC adapter or power cord. This may result in...
  • Page 6: Separate Purchase

    Preparing Separate Purchase Separate purchase items can be changed or modified for quality • If the TV is turned on for the first time after it was shipped from the improvement without any notification. Contact your dealer to buy these factory, initialization of the TV may take a few minutes.
  • Page 7: Wall Mounting Bracket

    Lifting and moving the TV Wall Mounting Bracket Make sure to use screws and wall mount bracket that meet the VESA Please note the following advice to prevent the TV from being scratched standard. Standard dimensions for the wall mount kits are described in or damaged and for safe transportation regardless of its type and size.
  • Page 8: Mounting On A Table

    Securing TV to the Wall • Avoid touching the screen at all times, as this may result in damage to the screen. • When attaching the stand to the TV set, place the screen facing down on a cushioned table or flat surface to protect the screen from scratches.
  • Page 9: Mounting To The Wall

    LG recommends that wall mounting be performed by a qualified professional installer. We recommend the use of LG’s wall mount bracket. LG’s wall mount bracket is easy to move with cables connected. When you do not use LG’s wall mount bracket, please use a wall mount bracket where the device is adequately secured to the wall with enough space to allow connectivity to external devices.
  • Page 10: Other Connections

    Connections Other connections Connect your TV to external devices. For the best picture and audio Connect various external devices to the TV and switch input modes to quality, connect the external device and the TV with the HDMI cable. select an external device. For more information of external device’s Some separate cable is not provided.
  • Page 11: Using Button

    Using Button External Devices Available external devices are: Blu-ray player, HD receivers, DVD players, VCRs, audio systems, USB storage devices, PC, gaming devices, and You can simply operate the TV functions, using the button. other external devices. • The external device connection may differ from the model. •...
  • Page 12 Using Magic Remote To use the button, press and hold for more than 1 second. Control (POWER) Turns the TV on or off. You can turn your set-top box on or off by adding the set- top box to the universal remote control for your TV. (Depending on model) Number buttons Enters numbers.
  • Page 13: Registering Magic Remote Control

    User Guide Registering Magic Remote Control For more information about this TV, read the USER GUIDE embedded in How to register the Magic Remote Control the product. (Depending on model) • To open the USER GUIDE → ) → [General] → To use the Magic Remote, first pair it with your TV.
  • Page 14: Abnormal Display

    Abnormal Display • When cleaning the product, be careful not to allow any • If the product feels cold to the touch, there may be a small “flicker” liquid or foreign objects to enter the gap between the when it is turned on. This is normal, there is nothing wrong with upper, left or right side of the panel and the guide panel.
  • Page 15: Specifications

    Specifications (Depending on country) Broadcasting Specifications Digital TV Analogue TV (Depending on country) (Depending on country) DVB-S/S2 PAL/SECAM B/G, D/K, I Television system DVB-T/T2 SECAM L DVB-C DVB-S/S2 DVB-C DVB-T/T2 VHF III : 174 ~ 230 MHz Channel coverage UHF IV : 470 ~ 606 MHz 46 ~ 862 MHz (Band) 950~2150 MHz...
  • Page 16: Operating Temperature

    Environment condition Operating Temperature 0 °C to 40 °C Operating Humidity Less than 80 % Storage Temperature -20 °C to 60 °C Storage Humidity Less than 85 %...
  • Page 17: Open Source Software Notice Information

    In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for download. LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to opensource@lge.com.
  • Page 18 The model and serial number of the product are located on the back and on one side of the product. Record them below in case you ever need service. Model Serial No.
  • Page 19: External Control Device Setup

    OWNER’S MANUAL EXTERNAL CONTROL DEVICE SETUP Please read this manual carefully before operating the set and retain it for future reference. www.lg.com...
  • Page 20: Key Codes

    KEY CODES KEY CODES • This feature is not available for all models. Code Code Function Note Function Note (Hexa) (Hexa) CH +, PR + R/C Button List R/C Button CH -, PR - R/C Button Exit R/C Button Volume + R/C Button PIP(AD) R/C Button...
  • Page 21 (TV) (PC) • LGTV supports PL2303 chip-based (Vendor ID : 0x0557, Product ID : 0x2008) USB to serial converter RS-232C IN which is not made nor provided by LG. (CONTROL & SERVICE) (TV) (PC) • It can be purchased from computer stores that carry accessories for IT support professionals.
  • Page 22: Customer Computer

    EXTERNAL CONTROL DEVICE SETUP (TV) (PC) (TV) (PC) Phone jack Type RS-232C IN • You need to purchase the phone-jack to RS-232 cable required for the connection between the PC and (CONTROL & SERVICE) (PC) (TV) the TV, which is specified in the manual. RS-232C IN (CONTROL &...
  • Page 23 EXTERNAL CONTROL DEVICE SETUP Communication Parameters • Baud rate : 9600 bps (UART) • Stop bit : 1 bit • Data length : 8 bits • Communication code : ASCII code • Parity : None • Use a crossed (reverse) cable. Command reference list (Depending on model) DATA...
  • Page 24 EXTERNAL CONTROL DEVICE SETUP Transmission / Receiving Protocol Transmission [Command1][Command2][ ][Set ID][ ][Data][Cr] [Command 1] : First command to control the TV. (j, k, m or x) [Command 2] : Second command to control the TV. [Set ID] : You can adjust the [Set ID] to choose desired monitor ID number in option menu. Adjustment range in TV is 1 to 99.
  • Page 25 EXTERNAL CONTROL DEVICE SETUP * Commands may work differently depending on model and signal. 01. Power (Command: k a) Ack [d][ ][Set ID][ ][OK/NG][Data][x] ► To control Power *On or Off of the set. * In case of video mute on only, TV will display On Transmission[k][a][ ][Set ID][ ][Data][Cr] Screen Display(OSD).
  • Page 26 EXTERNAL CONTROL DEVICE SETUP Data Min : 00 to Max : 64 * (Depending on model) Ack [i][ ][Set ID][ ][OK/NG][Data][x] 14. Bass (Command: k s) 09. Tint (Command: k j) ► To adjust Bass. ► To adjust the screen tint. You can also adjust in the AUDIO menu.
  • Page 27 EXTERNAL CONTROL DEVICE SETUP Set ID = All = 00 5th Band 20(decimal) Data 00 & 01 = Channel Data is 10 = 00 0a Acknowledgement [v][ ][Set ID][ ][OK/NG][Data][x] Data 02 = Analog Antenna TV = 00 Result = ma 00 00 0a 00 * It depends on model, and can adjust when sound mode is EQ adjustable value.
  • Page 28 EXTERNAL CONTROL DEVICE SETUP Number Data 05 = Digital Antenna TV = 02 - 22 : Antenna TV (DTV) – Don’t Use Physical Total = ma 00 00 00 11 00 01 02 Channel Number - 26 : Cable TV (CADTV) - Don’t Use Physical 2.
  • Page 29 11 11 EXTERNAL CONTROL DEVICE SETUP 24. Input select (Command: x b) (Main Picture Input) ► To select input source for main picture. Transmission [x][b][ ][Set ID][ ][Data][Cr] Data X : don’t care 00 : DTV 01 : CADTV 02 : Satellite DTV 10 : ATV Ack [t][ ][Set ID][ ][OK][Data00][Data01][Data02] ISDB-BS (Japan)
  • Page 30 EXTERNAL CONTROL DEVICE SETUP 27. Auto Configure (Command: j u) (Depending on model) ► To adjust picture position and minimize image shaking automatically. It works only in RGB (PC) mode. Transmission [j][u][ ][Set ID][ ][Data][Cr] Data 01 : Run Auto Configure Ack [u][ ][Set ID][ ][OK/NG][Data][x]...
