UMENA MARINA Manual

PLEASE READ THESE INSTRUCTIONS CAREFULLY PRIOR TO INSTALLATION / MAINTENANCE
•
If a fitting is found to be damaged, cease use immediately.
•
This is a Class 1 product and must be earthed.
•
This unit must be fitted by a competent and qualified electrician.
•
Install in accordance with IEE wiring regulations and current Building Regulations.
•
To prevent electrocution, switch off mains supply before installing or maintaining this fitting. Ensure other persons cannot restore
the electrical supply without your knowledge.
•
This light fitting should be connected to a circuit with a 30Ma RCD fitted. Maximum 12-15 fittings on each circuit recommended.
•
If replacing an existing fitting, make a careful note of the connections.
•
All connections should be made as watertight as possible to avoid electrical shortage.
•
When changing the bulb, always switch off at the mains & allow to cool before handling.
•
Always use the correct type & wattage bulb. Never exceed the wattage stated.
•
The unit may get warm whilst on for a period of time.
Voltage: 220 - 240v 50Hz
Max. Wattage: 35w
Bulb Holder: ES / E27 (Extender included)
Recommended Bulb: High Output LED Corn Bulb
IP Rating: IP65 / Sensors = IP44
Product Dimensions: 1000mm * 140mm
Head Style: Louvred / curved top
Materials: Marine Grade Stainless Steel 316 / Polycarbonate Lens
Mount: Internal Surface Mount
Sensor: PIR Motion Sensor (<8m detection)
Cable: 3*0.75mm² H05RN-F Rubber Cable (internal to base)
Connection: Single In-line Connecter IP68 (<1.5mm² 3 core / 10mm diameter)
Additional Information: Fully assembled. PIR triggered only in darkness / dusk
INCLUDED: Bollard Head, Surface Mount Tube c/w E27 Bulb Holder (and sensor if selected), Internal Surface
Mount, Bulb Holder Extender (for use with shorter lamps), 3 x 12mm Anchor Bolts, 8x M4*5mm Socket
Screws, 1 x 2.5mm socket wrench,
CLEANING:
Occasional cleaning and care is recommended for this product. Ensure the PIR sensor is kept clean as surface dirt may affect the sensitivity.
Please refer to our website for the best way to clean different materials.
CONDENSATION:
Condensation can occur due to the warmth inside the fitting produced by the lamp and the cold air outside. If this is noticed, on a dry day,
turn off the power supply, safely remove the head, and wipe dry with a soft cloth. It is recommended to always install/change the lamp on a dry
day to prevent trapping damp air inside the fitting.
RETURNS:
If purchased from a 3 party, please contact your supplier. If purchased direct, contact us by phone or email:
rd
Lumena Lights Ltd, Centre 33 Long March, Daventry, NN11 4NR
Our full returns policy is available on our website.
Waste Electrical Products should not be disposed of with household waste. Please check with your local authority or contact us for more
information. Please recycle packaging whenever possible.
TROUBLESHOOTING:
If the bollard ceases to function correctly, check the following:
1. Check inside the head for condensation and change the lamp to test if the lamp has failed.
2. Check the cables and connections for damage, water ingress and loose cable
3. If none of the above fix the issue, the sensor (if applicable) may have failed. This can be tested by bypassing the sensor. In this
instance, contact the supplier/manufacturer to claim under warranty or request a spare component.
Full product range & more information: www.lumenalights.com

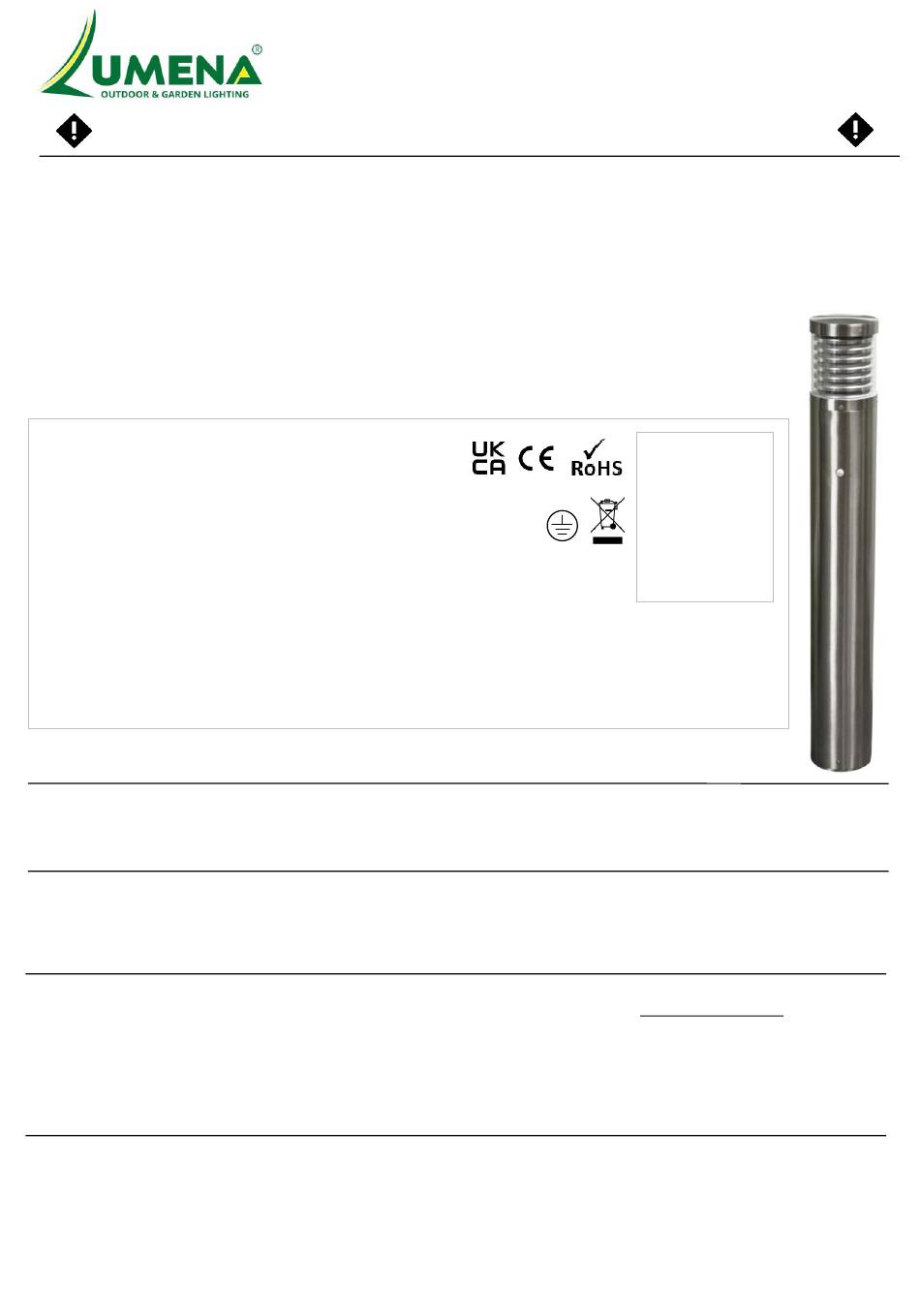

MARINA Surface Mount Bollard Light
WARNINGS
Tel: +44 1327 871161
Producer Registration Numbers: WEE/KC3440XY
