Model
DW-BJAiARA2

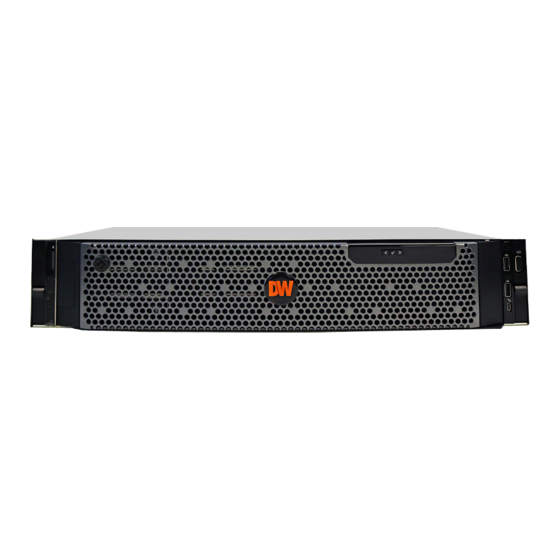

2U rack mount workstation analytics appliance with dual sensor and NVIDIA RTX A2000 12GB card
DW-BJAiAR2PA2 2U rack mount workstation analytics appliance with dual sensor and dual NVIDIA RTX A2000 12GB cards
DW-BJAiARA4
2U rack mount workstation analytics appliance with dual sensor and NVIDIA RTX A4000 card
DW-BJAiAR2PA4 2U rack mount workstation analytics appliance with dual sensor and dual NVIDIA RTX A4000 cards
Rack™ Server
Quick Start
Guide
NOTE: Download all your support materials and tools in one place.
1. Go to: http://www.digital-watchdog.com/support-download/.
2. Search your product by entering the part number in the 'Search by Product' search bar. Results for applicable part
numbers will populate automatically based on the part number you enter.
3. Click 'Search'. All supported materials, including manuals, Quick start guides (QSG), software and firmware will appear in
the results.
Attention: This document is intended to serve as a quick reference for initial setup.
See the DW Spectrum® full manual for more information on features and functionality.
Tel: +1 (866) 446-3595 / (813) 888-9555
Technical Support Hours: 9:00AM – 8:00PM EST, Monday through Friday
WHAT'S IN THE BOX
Keyboard and
1
Mouse
1
Power Cable
Description
Default login information for the server's OS
Username: dwuser
1 set
Rail Kit
Mini-DP to
2
True HD
Adapter
Quick Start Guide
Password: Dw5pectrum
digital-watchdog.com
1 set
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Blackjack Ai DW-BJAiARA2 and is the answer not in the manual?

Questions and answers

Summary of Contents for Digital Watchdog Blackjack Ai DW-BJAiARA2

  • Page 1 Quick Start Guide Model Description DW-BJAiARA2 2U rack mount workstation analytics appliance with dual sensor and NVIDIA RTX A2000 12GB card DW-BJAiAR2PA2 2U rack mount workstation analytics appliance with dual sensor and dual NVIDIA RTX A2000 12GB cards DW-BJAiARA4 2U rack mount workstation analytics appliance with dual sensor and NVIDIA RTX A4000 card DW-BJAiAR2PA4 2U rack mount workstation analytics appliance with dual sensor and dual NVIDIA RTX A4000 cards Default login information for the server’s OS Username: dwuser...
  • Page 2 BLACKJACK® RACK™ HARDWARE OVERVIEW FRONT System health LED Lock LCD panel cursor left LCD panel menu item select LCD panel cursor right LCD display Power button VGA port (not used) USB 2.0 ports Micro-AB USB port (maintenance only) FRONT PANEL BACK: DW-BJAiARA2 AND DW-BJAiAR2PA2 MODELS AC PSU status indicator handle Power ports...
  • Page 3: Specifications

    Quick Start Guide SPECIFICATIONS PART NUMBER DW-BJAiARA2 DW-BJAiAR2PA2 DW-BJAiARA4 DW-BJAiAR2PA4 Included DW Ai Server Licenses 4 channel(DW-DWAiSLSC004) Form Factor 2U Rack mount Windows® 10 Windows 10 IoT LTSC Operating System OS on SSD 2x 512GB M.2 (RAID1) Intel XEON Silver 2 x Intel XEON Silver Intel XEON Silver 2 x Intel XEON Silver...
  • Page 4 1. Double click Date and Time icon on the Desktop. 2. Change Time zone if not correct (default is UTC-08:00 Pacific Time) STEP 2: Configure Date and Time Windows STEP 2: Configure date and time STEP 2: Configure Date and Time Windows®...
  • Page 5 Quick Start Guide STEP 3: Configure network Please have the following information ready before starting the network configuration. Camera network Local network (LAN) IP address Subnet mask / Netmask Default gateway / Gateway Not applicable DNS servers Not applicable * The camera network and local network cannot be on the same network. NOTE The Blackjack®...
  • Page 6 Local Network 7. Right-click on the other Ethernet, the one with network cable unplugged, and click “Properties”. 8. Select “Internet Protocol Version 4 (TCP/IPv4)” and click “Properties”. 6. Click OK to close then click Close to go back to Network Connections. Local Network 7.
  • Page 7 Connecting to DW Ai Server from DW Spectrum STEP 1: Download and copy plugin file to DW Spectrum’s plugin folder. Windows: Download and copy dw_ai_server_plugin.dll to “C:\Program Files\Digital Watchdog\DW Spectrum\MediaServer\ plugins”. Linux: Download and copy libdw_ai_server_plugin.so to “/opt/digitalwatchdog/mediaserver/bin/plugin/”. 1) Reboot the DW Spectrum Mediaserver 2) Go to Plugin tab from System Administrator then select DW Ai Server Plugin from the Plugin list on the left pane.
  • Page 8 1. DW Ai Server Configuration Tool While some camera settings can be configured through the DW Spectrum IPVMS Client, the DW Ai Server Configuration Tool can be used to provide a complete analytic user experience during the configuration process of the DW Ai Server. Setting Up the DW Ai Server Configuration Tool While some camera settings can be configured through the DW Spectrum IPVMS Client, the DW Ai Server Configuration Tool can Logging in with the DW Ai Server Configuration Tool...
  • Page 9 Quick Start Guide 2) Once you are logged in and connected to the DW Ai Server through the DW Ai Server Configuration Tool, a list will show all added cameras in the left-side panel. 2) v panel. To view camera analytic rules and configuration, enable the DW Ai Server Plugin toggle. To view camera analytic rules and configuration, enable the DW Ai Server Plugin toggle.
  • Page 10 • DW Ai (toggle): The DW Ai button toggles the camera list between showing all cameras on the DW Spectrum System or just the STEP 2: DW Ai Server List cameras that have the plug-in enabled. This toggle appears at the If multiple DW Ai Servers will be used, the additional DW Ai Server will need to be added.
  • Page 11 3.DW Ai Server Licenses To use the analytic features of a DW Ai Server, a license is required. Licenses can be managed through the DW Ai Server Configuration Tool program. Quick Start Guide To view the licenses, select “Licenses” from the Main Menu in the DW Ai Server Configuration Tool.
  • Page 12 Tel: +1 (866) 446-3595 www.digital-watchdog.com Fax: (813) 888-9262 sales@digital-watchdog.com Copyright © Digital Watchdog. All rights reserved. Rev: 09/23 Specifications and pricing are subject to change without notice.
