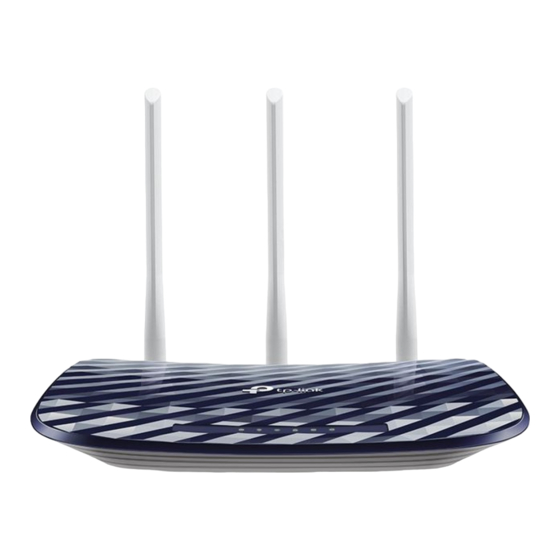

- Page 1 All manuals and user guides at all-guides.com www.pars-ecotech.com Instruction Manual for installing TP-link Archer-C20 WIFI Router to FUN4FOUR Game Table...
- Page 2 All manuals and user guides at all-guides.com www.pars-ecotech.com 1-Installing: Turn off the table with disconnecting the electricity cable from plug and open the main computer door with yellow key. First put the white 2 Outlet Adapter Plug to the black plug inside. Put again the plug in one outlet.
- Page 3 All manuals and user guides at all-guides.com www.pars-ecotech.com Then put router at the left side of main computer. Same as picture:...
- Page 4 All manuals and user guides at all-guides.com www.pars-ecotech.com Then connect the LAN cable in to the one of 4 LAN ports of the router and other head to the LAN port of Computer. Turn on the router with power button. Shift up the computer. Be careful about cables.
- Page 5 All manuals and user guides at all-guides.com www.pars-ecotech.com 2- Connecting: Turn on the table. Wait until complete boot. Then push the test button. In the main menu tap on the ChampionsNet.
- Page 6 All manuals and user guides at all-guides.com www.pars-ecotech.com...
- Page 7 All manuals and user guides at all-guides.com www.pars-ecotech.com...
- Page 8 All manuals and user guides at all-guides.com www.pars-ecotech.com Choose Router: Username: admin Password: admin...
- Page 9 All manuals and user guides at all-guides.com www.pars-ecotech.com Username: admin Password: admin...
- Page 10 All manuals and user guides at all-guides.com www.pars-ecotech.com Go to quick setup: Next...
- Page 11 All manuals and user guides at all-guides.com www.pars-ecotech.com Very Important!!!!! Choose Operation Mode: Range Extender And then Next...
- Page 12 All manuals and user guides at all-guides.com www.pars-ecotech.com Find the WIFI name (SSID) of the bar/restaurant Tap “Connect” in front of the wifi name and then next...
- Page 13 All manuals and user guides at all-guides.com www.pars-ecotech.com Now, write the WIFI password of the bar/restaurant And then next...
- Page 14 All manuals and user guides at all-guides.com www.pars-ecotech.com Just check LAN settings, they should be same as picture: And then next...
- Page 15 All manuals and user guides at all-guides.com www.pars-ecotech.com Now the device needs to reboot to work. Tap the finish button. Wait for finish rebooting the router.
- Page 16 All manuals and user guides at all-guides.com www.pars-ecotech.com Very Important!!!!!! Now, after setup the router, for entering inside of menu, you need to write this address in the address bar on the top of display: tplinkwifi.net And then press ENTER on the keyboard...
- Page 17 All manuals and user guides at all-guides.com www.pars-ecotech.com Username: admin Password: admin Now on the main page you can see all settings. Check that operation mode should be range extender and wireless radio should be enabled. You can see the WIFI name also.
- Page 18 All manuals and user guides at all-guides.com www.pars-ecotech.com...
- Page 19 All manuals and user guides at all-guides.com www.pars-ecotech.com Go to “NETWORK” and Select “Wireless 2.4 Ghz” Clear the box of: “Enable SSID Broadcast” And then “SAVE”...
- Page 20 All manuals and user guides at all-guides.com www.pars-ecotech.com Exit Go back...
- Page 21 All manuals and user guides at all-guides.com www.pars-ecotech.com Check internet connection...
- Page 22 All manuals and user guides at all-guides.com www.pars-ecotech.com If there is not any problem with the WIFI of the bar/restaurant, you must see that the connection was successful.
