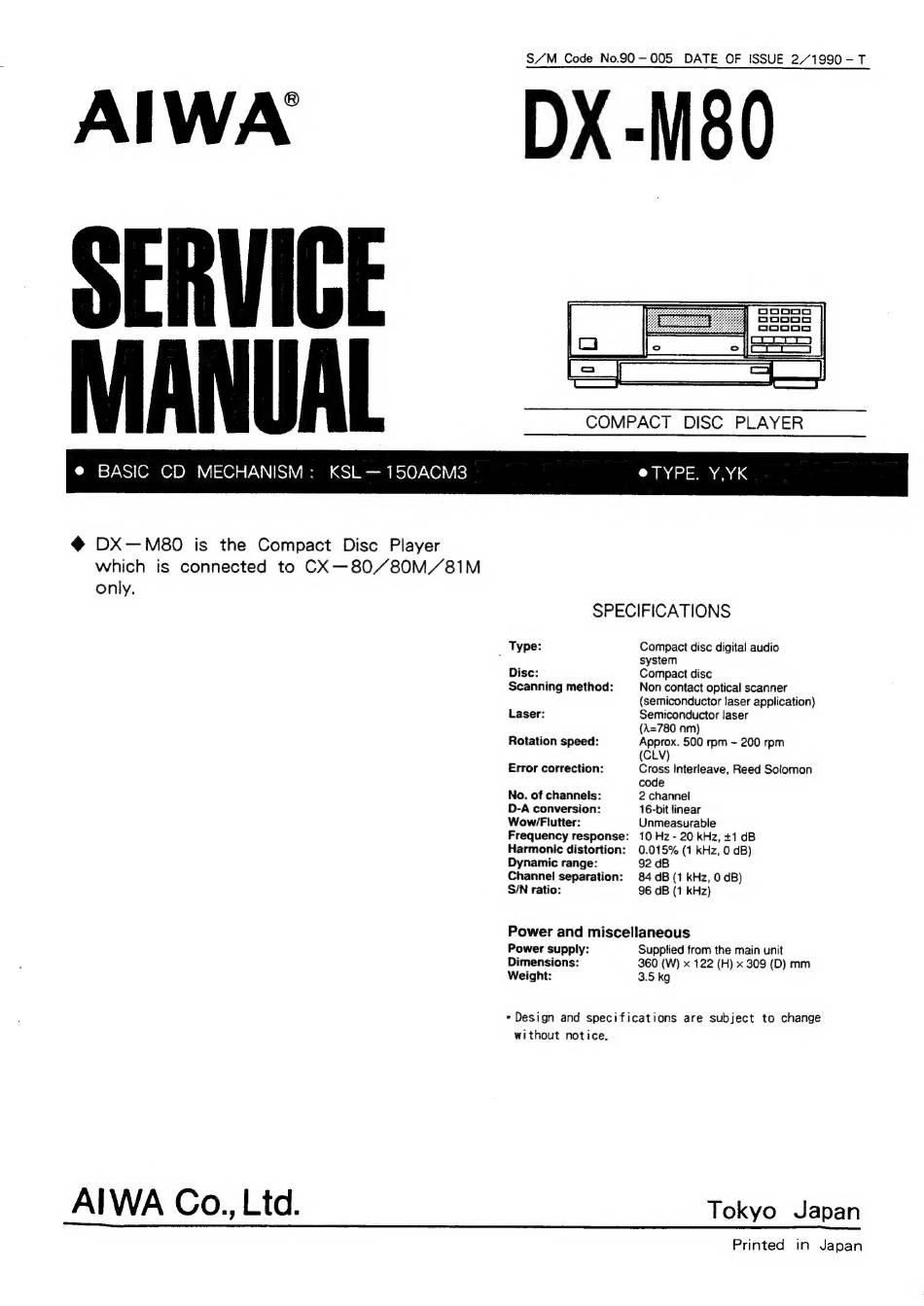

Aiwa DX-M80 Service Manual

S/M Code No.90—-005 DATE OF ISSUE 2/1990 -T
AIWA DX -M80
e BASIC CD MECHANISM: KSL—150ACM3 @ TYPE. Y,YK
@ DX—M80 is the Compact Disc Player
which is connected to CX—80//80M/"81M
only.
SPECIFICATIONS
Type: Compact disc digital audio
, system
Disc: Compact disc
Scanning method: Non contact optical scanner
(semiconductor laser application)
Laser: Semiconductor laser
(A=780 nm)
Rotation speed: Approx. 500 rpm - 200 rpm
(CLV)
Error correction: Cross Interleave, Reed Solomon
code
No. of channels: 2 channel
D-A conversion: 16-bit linear
Wow/Flutter: Unmeasurable
Frequency response: 10 Hz - 20 kHz, +1 dB
Harmonic distortion: 0.015% (1 kHz, 0 dB)
Dynamic range: 92 dB
Channel separation: 84 dB (1 kHz, 0 dB)
SIN ratio: 96 dB (1 kHz)
Power and miscellaneous
Power supply: Supplied from the main unit
Dimensions: 360 (W) x 122 (H) x 309 (D) mm
Weight: 3.5 kg
* Design and specifications are subject to change
without notice.
AIWA Co., Ltd.
Tokyo Japan
SSS
SSS
SSS SSS
AS,
Printed in Japan
