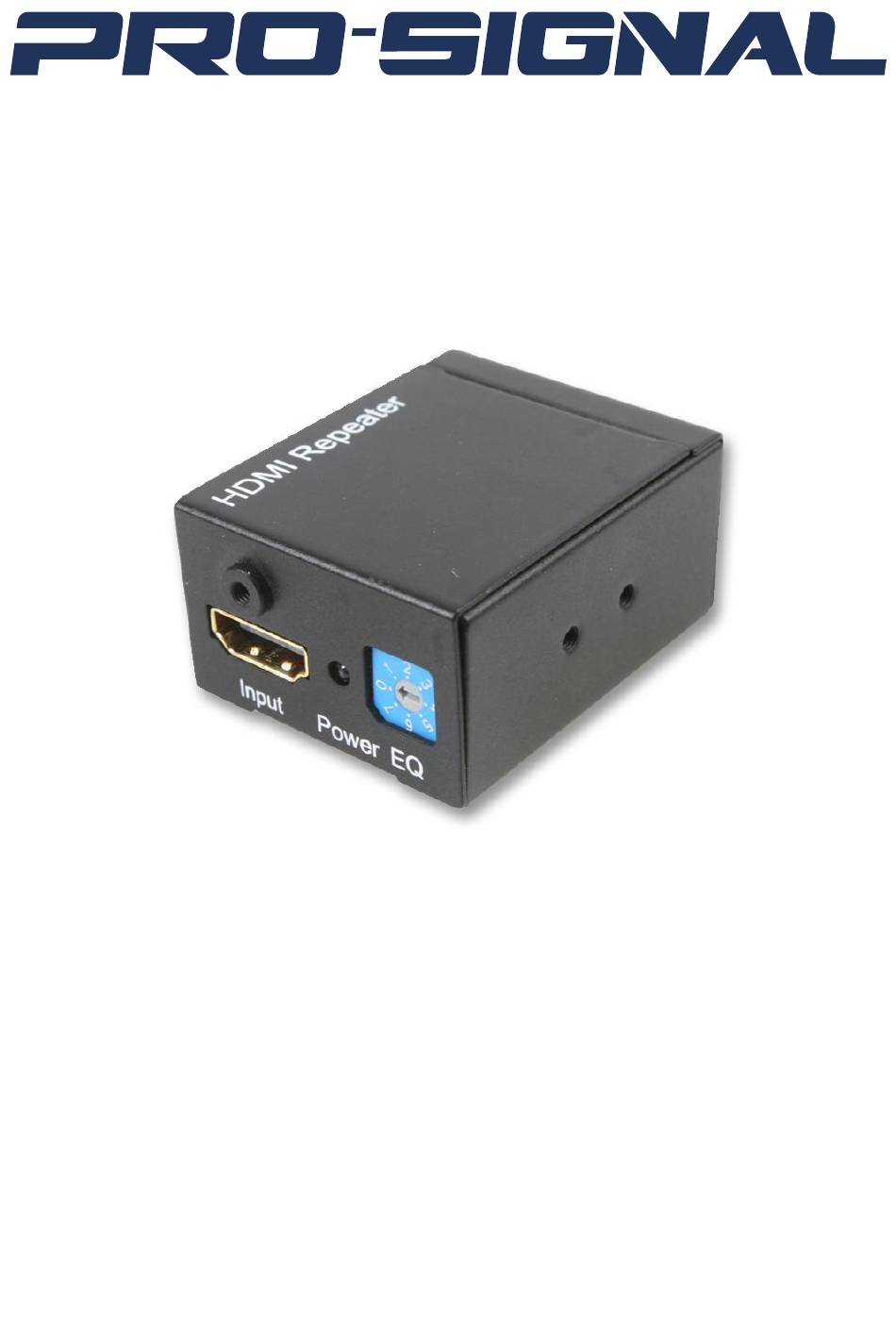

- Page 1 HDMI Repeater 1080p - 30m Range PSG03494 The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
- Page 2 Please read these instructions carefully before use and retain for future reference. IMPORTANT SAFETY INFORMATION When using electrical appliances basic safety precautions should always be followed. • To prevent fire or shock hazard, do not expose this product to rain or moisture. •...
- Page 3 CONNECTIONS INSTALLATION PSG3429 • Connect the output of the source device into the input of HDMI Repeater and con- nect the output to the HDMI display unit. • Insert the DC side of a 5V power supply (not included) if the source device cannot provide enough power over the HDMI output.
- Page 4 SPECIFICATIONS Signal Input/Output Input Video Signal 5 Volts p-p (TTL) Max single link range 1920 x 1080p Output Video HDMI Type A 19 pin Operating Frequency Vertical Frequency Range 50/60Hz Video Amplifier Bandwidth 2.25Gbps/225MHz Transmission distance UTP cable with cross stand inside 35m for 1080p Resolutions(HDTV) Interlaced (50&60Hz)
