PRO SIGNAL PSG3401 Quick Start Manual

Ir repeater over hdmi kit

Please read these instructions carefully before use and retain for future reference.

IMPORTANT SAFETY INFORMATION

When using electrical appliances basic safety precautions should always be followed.

•

To prevent fire or shock hazard, do not expose this product to rain or moisture.

•

Turn the power off all source and destination equipment before making the

connections.

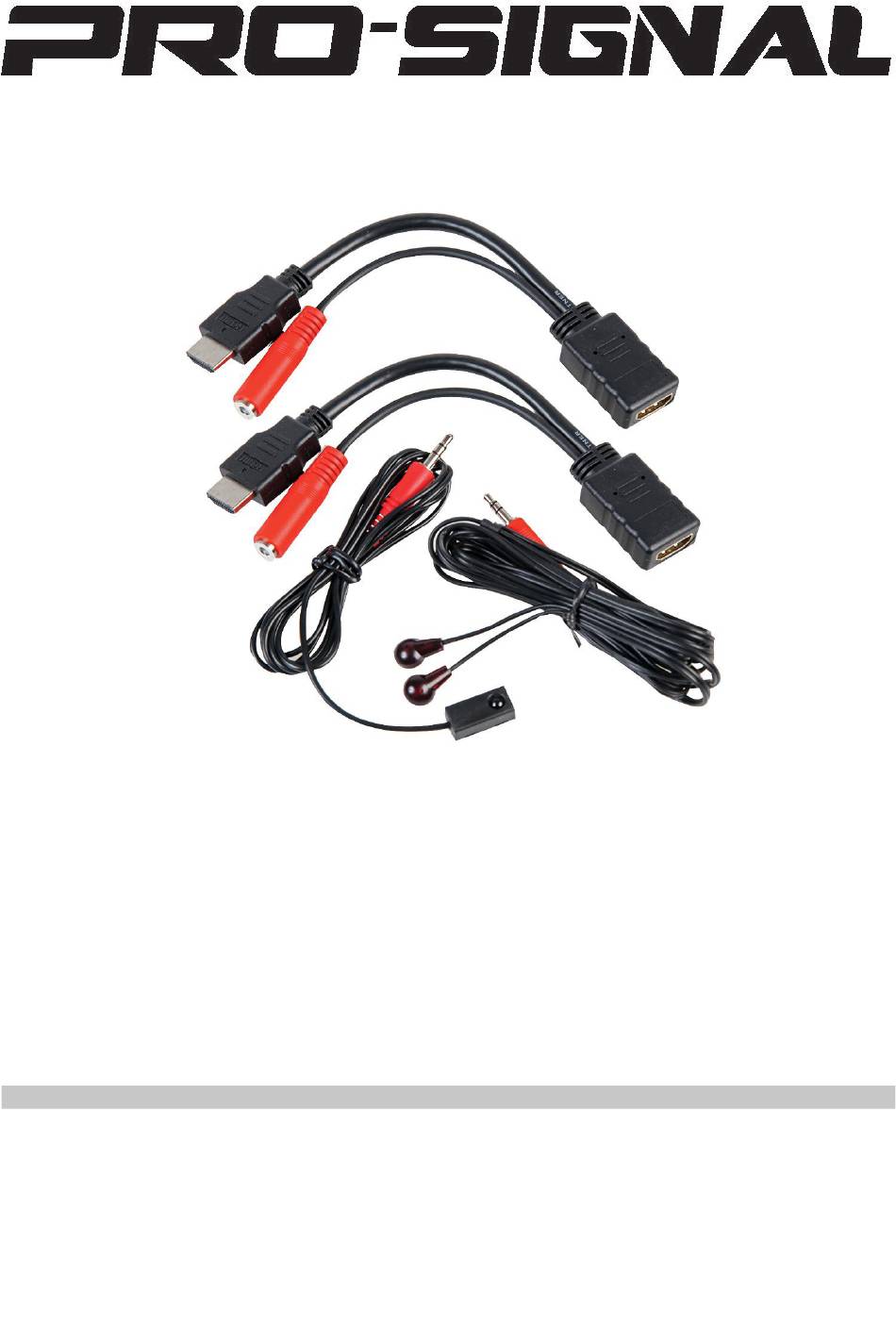

IR Repeater over HDMI Kit

PSG3401

Table of Contents

Do you have a question about the PSG3401 and is the answer not in the manual?

Page 1 IR Repeater over HDMI Kit PSG3401 Please read these instructions carefully before use and retain for future reference. IMPORTANT SAFETY INFORMATION When using electrical appliances basic safety precautions should always be followed. • To prevent fire or shock hazard, do not expose this product to rain or moisture.
Page 2 OVERVIEW • Simple and effective kit that allows you to send IR signals to remote devices over existing HDMI cabling. • Easily maintain control over source devices via the original IR remote control. • Ideal for home cinema or commercial installations where devices are out of sight. WHAT’s IN THE BOX •...
Page 3 SPECIFICATIONS Frequency range 20-60kHz IR Range 10 meters Direction Bi directional - both repeater cables are identical and can be used at either end of the equipment link.
Page 4 INFORMATION ON WASTE DISPOSAL FOR CONSUMERS OF ELECTRICAL & ELECTRONIC EQUIPMENT. When this product has reached the end of its life it must be treated as Waste Electrical & Electronic Equipment (WEEE). Any WEEE marked products must not be mixed with general household waste, but kept separate for the treatment, recovery and recycling of the materials used.
