Please read these instructions carefully before use and retain for future reference.
IMPORTANT SAFETY INFORMATION
When using electrical appliances basic safety precautions should always be followed.
•
To prevent fire or shock hazard, do not expose this product to rain or moisture.
•
Only use the PSU supplied or one of identical specification.
•
Check that the voltage indicated on the PSU rating plate corresponds with that of
the local network before connecting to the mains power supply.

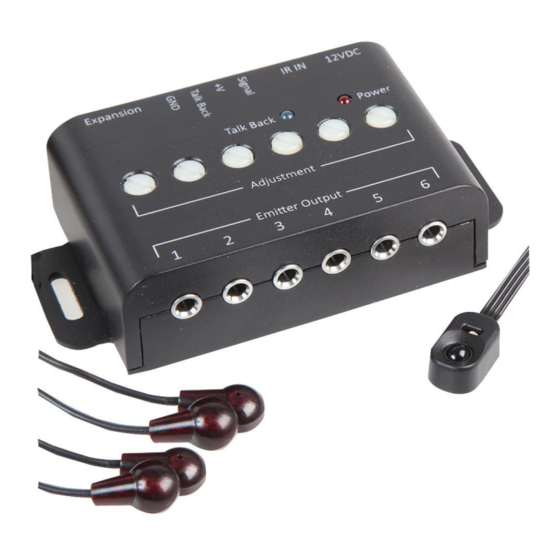

IR Repeater Kit with Gain Control
PSG3396
Advertisement
Table of Contents
Related Manuals for PRO SIGNAL PSG3396
Summary of Contents for PRO SIGNAL PSG3396
- Page 1 IR Repeater Kit with Gain Control PSG3396 Please read these instructions carefully before use and retain for future reference. IMPORTANT SAFETY INFORMATION When using electrical appliances basic safety precautions should always be followed. • To prevent fire or shock hazard, do not expose this product to rain or moisture.
- Page 2 OVERVIEW • Provides one IR receiver input and six IR emitter outputs (4 IR emitters included). • Works with all major brands of Audio/Video IR remote controls. • Confirmation LED indicator. • 3.5mm Jack sockets for receiver and emitters • Terminal block for connecting IR receivers without 3.5mm jack plug.
- Page 4 SPECIFICATIONS Main connector box dimensions (L x W x D) 95mm x 48mm x 24mm IR receiver 17mm x 10mm x 6.5mm Weight 65g (connector box) 14g (IR receiver) Receiver frequency range 20-60kHz Transmitter frequency 20kHz to 60kHz IR Range 10 meters Power 12VDC 0.5A...
