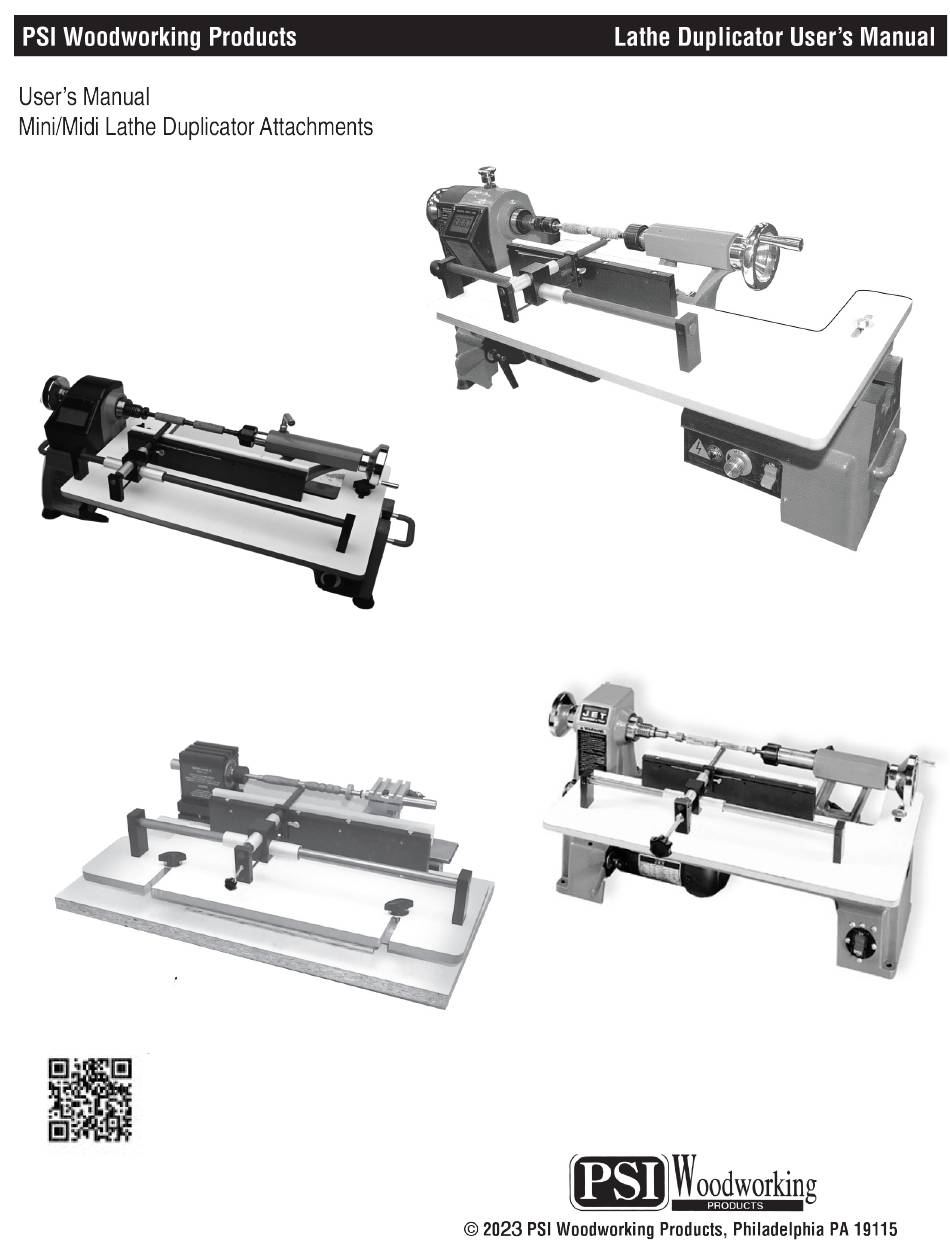

- Page 1 CML-DUP8 CML-DUPMAX Universal Duplicator Mounted on a Commander Lathe CML-DUPJ CML-DUPU Compatible with Jet & Delta Mini Lathes Universal Duplicator Scan for Video Instructions...
-
Page 2: Specifications
PSI Woodworking Products Lathe Duplicator User’s Manual Warranty This product is warranted against defects in material and workmanship for a period of two years from the date of the purchase. The warranty applies to the original purchaser of the product and is limited to the repair or replacement of the product or its components at the discretion of PSI Woodworking Prod- ucts. - Page 5 PSI Woodworking Products Lathe Duplicator User’s Manual Duplicating Using an Original Work piece If small enough, MAXmp the work piece to the follower as shown in Diagram 3. For layer pieces, cut the piece in half lengthwise and MAXmp (or glue) to the follower for support.
- Page 6 PSI Woodworking Products Lathe Duplicator User’s Manual Setting the Cutter Depth Alignment 3. Secure the bushings and tube(s) on the pen mandrel. Secure the tailstock to the mandrel and tighten the locking nut. 4. Position the point of the cutter exactly to the inside edges of the left hand bushing (if the bushings are step bushings, position the cutter exactly to the inside edges of the left-most part of the wood blank will rest.) Refer to Diagram 4.
- Page 7 PSI Woodworking Products Lathe Duplicator User’s Manual To match the minimum diameter, push the cutter towards the point on the flat that results in largest gap between the flat and the cutter point (because the follower pin will be hitting the template). Loosen the follower pin, press the cutter forward until it hits the wood flat, back off the follower pin so that it hits the template while the cut- ter is still touching the wood.
- Page 11 # TPL7MMX...
