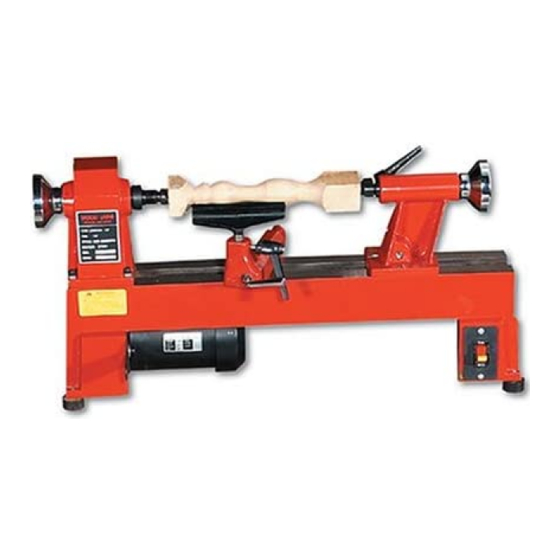

- Page 1 TurncrafterPro Lathe ™ User’s Manual Read this manual completely before usage. Model #TCLPRO #TCLPROXB Turn up to 39" with the extension bed.(not included) 9900 Global Rd. Philadelphia ,PA. 19115 Version 2 – 03/05...
-
Page 2: Warranty
WARRANTY APPLIES TO THE PURCHASER OF THIS PRODUCT, AND IS LIMITED TO THE REPAIR OR REPLACEMENT OF THE PRODUCT OR ITS PARTS AT PSI WOODWORKING PRODUCTS’ DISCRETION. EXCLUDED ARE PARTS WHICH HAVE BEEN MISUSED, ABUSED, ALTERED OR CONSUMED BY NORMAL OPERATION OF THE MACHINE. -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS Read and understand instruction manual. NEVER connect plug to power source until full assembly steps have been completed. Check that your supply voltage and grounding are correct. Do not use the lathe in a damp or wet location. Keep lathe clean and lightly oiled. - Page 4 PARTS Package Includes 1. 6" Toolrest 2. 3" Faceplate 3. #2 MT spur center 4. #2 MT live tail 5. Spare drive belt 6. 2 Hex wrenches ASSEMBLY 1. Hand wheel 7. Rear belt door 2. Tail stock 8. Hand wheel 3.
- Page 5 ADJUSTING THE MAIN SPINDLES SPEED (Number callouts refer to the Parts List on page 7) First, open the rear belt door (#20) of headstock (#19). Loosen the ratchet handle (#33), to allow the motor plate (#31) to swivel upwards. Open the side belt door (#55) to gain access to the motor pulley. Change the speed by moving the drive belt (#26) from one pulley to another (always go from larger pulley to smaller pulley)making sure that the belt runs in parallel grooves at all times.When finished changing, pull down the motor plate to tighten the belt, then secure the ratchet handle (#33).
- Page 6 BELT, SPINDLE AND BEARING REPLACEMENT FOR THE #TCLPRO LATHE To change the belt (#26), spindle (#14), or bearings (#15 and 18) for the lathe, you must first loosen the two set screws (#28) and hand wheel (#22). Next remove the access door (#20, #21, and #52) and loosen the set screw (#24) on the drive pulley (#25). Tap out the spindle using a mallet.
-
Page 7: Parts List
PARTS LIST Part# Description Part# Description ZTCL3-01 ZTCL3-29 MOTOR PULLEY ZTCL3-02 SEMI-CIRCLE HEAD SCREW ZTCL3-30 FLAT HEAD SCREW ZTCL3-03 RETAINING PLATE ZTCL3-31 MOTOR PLATE WITH NOTCH ZTCL3-04 HAND WHEEL ZTCL3-32 MOTOR ZTCL3-05 TAILSTOCK ZTCL3-33 RATCHET HANDLE ZTCL3-06 LOCK LEVER ZTCL3-34 RING RETAINING 12 ZTCL3-07 ECCENTRIC AXIS... - Page 8 12" Toolrest ........#CLT12JE 9900 Global Road Philadelphia, PA 19115 © 2004 PSI Woodworking Products...
