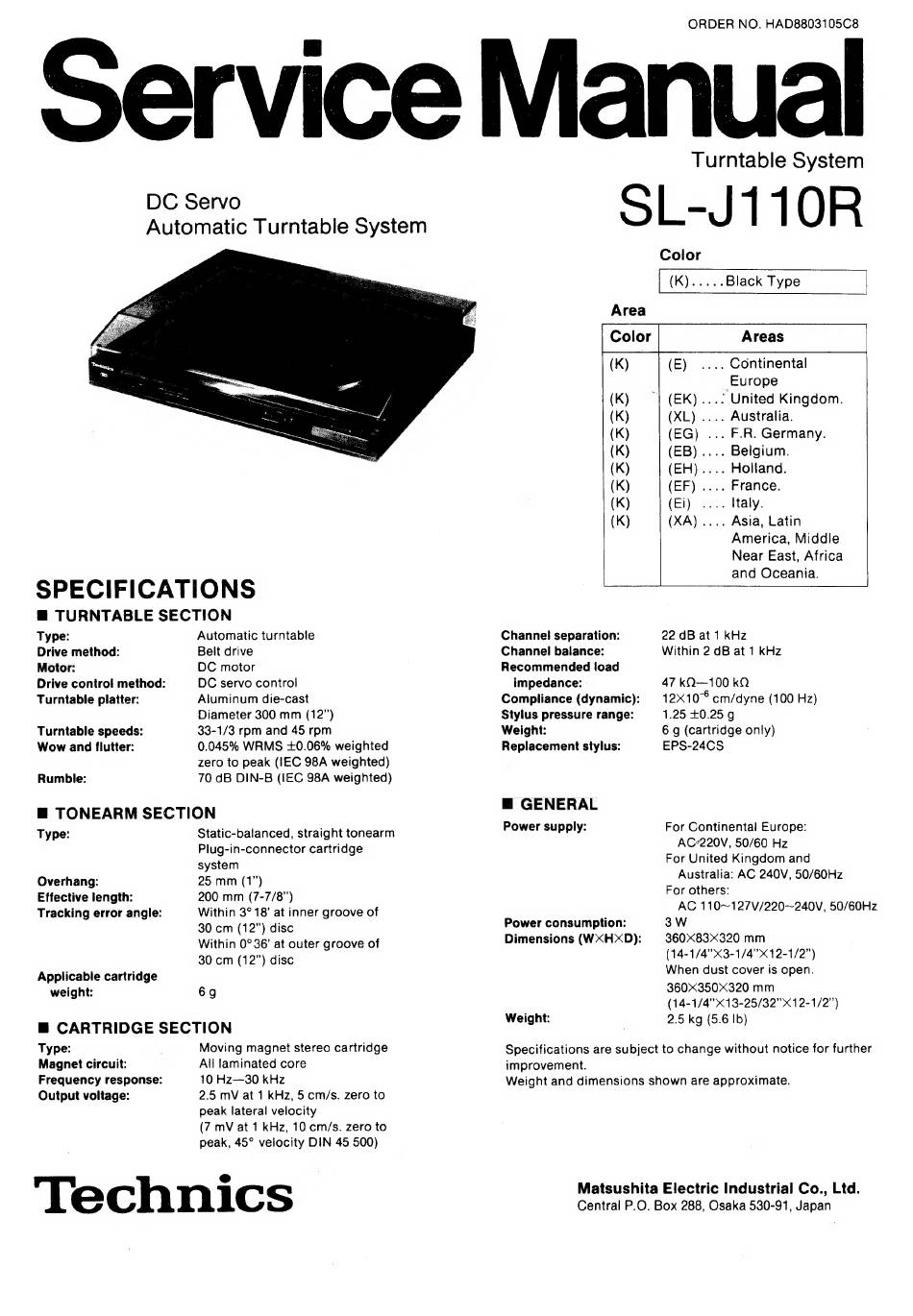

Technics SL-J110R Service Manual

DC Servo
Automatic Turntable System
SPECIFICATIONS
@ TURNTABLE SECTION
Type:
Drive method:
Motor:
Drive control method:
Turntable platter:
Turntable speeds:
Wow and flutter:
Rumble:
Automatic turntable
Belt drive
DC motor
DC servo control
Aluminum die-cast
Diameter 300 mm (12")
33-1/3 rpm and 45 rpm
0.045% WRMS +0.06% weighted
zero to peak (IEC 98A weighted)
70 dB DIN-B (IEC 98A weighted)
@ TONEARM SECTION
Type:
Overhang:
Effective length:
Tracking error angle:
Applicable cartridge
weight:
Static-balanced, straight tonearm
Plug-in-connector cartridge
system
25 mm (1")
200 mm (7-7/8")
Within 3° 18' at inner groove of
30 cm (12") disc
Within 0°36' at outer groove of
30 cm (12") disc
6g
@ CARTRIDGE SECTION
Type:
Magnet circuit:
Frequency response:
Output voltage:
Moving magnet stereo cartridge
All laminated core
10 Hz—30 kHz
2.5 mV at 1 kHz, 5 cm/s. zero to
peak lateral velocity
(7 mV at 1 kHz, 10 cm/s. zero to
peak, 45° velocity DIN 45 500)
Technics
ORDER NO. HAD8803105C8
Turntable System
SL-J110R
(Kyieeava Black Type
. Continental
Europe
(EK) .... United Kingdom.
(XL) .... Australia.
(EG) ... F.R. Germany.
(EB) .... Belgium.
(EH) .... Holland.
(EF) .... France.
(Ei) .... Italy.
(XA) .... Asia, Latin
America, Middle
Near East, Africa
and Oceania.
Channel separation:
Channel balance:
Recommended load
impedance:
Compliance (dynamic):
Stylus pressure range:
Weight:
Replacement stylus:
@ GENERAL
Power supply:
Power consumption:
Dimensions (WXHXD):
Weight:
22 dB at 1 kHz
Within 2 dB at 1 kHz
47 kKQ—100 kN
12X10 cm/dyne (100 Hz)
1.25 +0.25 g
6 g (cartridge only)
EPS-24CS
For Continental Europe:
AC220V, 50/60 Hz
For United Kingdom and
Australia: AC 240V, 50/60Hz
For others:
AG 110~127V/220-~-240V, 50/60Hz
3W
36083X320 mm
(14-1/4"3-1/4"12-1/2")
When dust cover is open.
360350320 mm
(14-1/4"X13-25/32"12-1/2")
2.5 kg (5.6 |b)
Specifications are subject to change without notice for further
improvement.
Weight and dimensions shown are approximate.
Matsushita Electric Industrial Co., Ltd.
Central P.O. Box 288, Osaka 530-91, Japan
