Installation Instructions
Bending Device
SinglePowerLine 0812
Order number:
081010
Drawing number:
08-V015-0026
Contents
1
Function of the Bending Device ............................................................................................................................ 2
2
Notes ....................................................................................................................................................................... 2
3
Producing a Curve .................................................................................................................................................. 3
4
Preventing Stripping/Clamping of the Collector Head on the Insulation Profile .............................................. 5
5
Auxiliary Tools and Others .................................................................................................................................... 6
MV0812-0002d-EN
www.conductix.com
translated document
page 1 of 6
Advertisement
Related Manuals for Delachaux CONDUCTIXX wampfler 081010
Summary of Contents for Delachaux CONDUCTIXX wampfler 081010
-
Page 1: Table Of Contents
Installation Instructions Bending Device SinglePowerLine 0812 Order number: 081010 Drawing number: 08-V015-0026 Contents Function of the Bending Device ..........................2 Notes ..................................2 Producing a Curve ..............................3 Preventing Stripping/Clamping of the Collector Head on the Insulation Profile ..........5 Auxiliary Tools and Others ............................ -
Page 2: Function Of The Bending Device

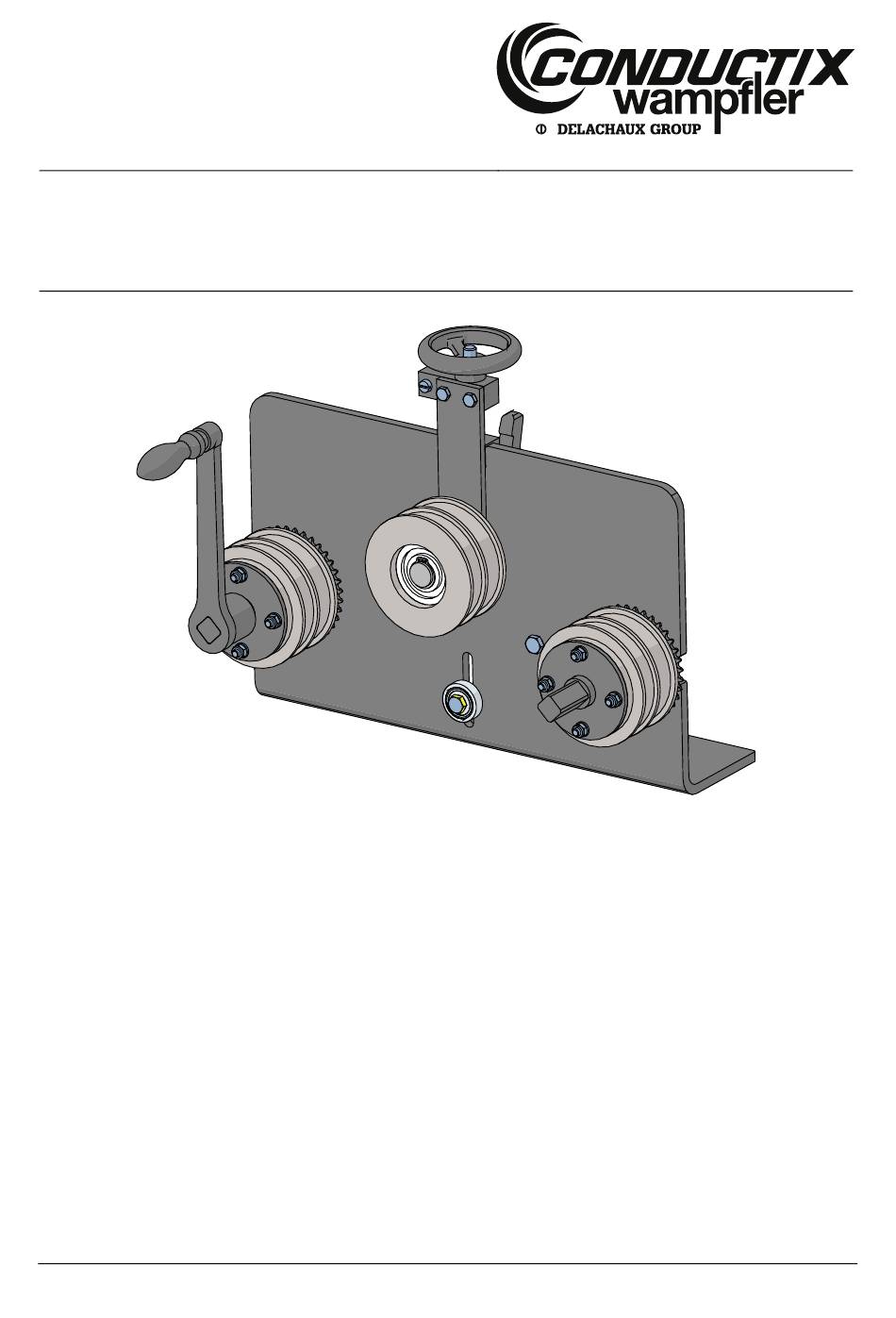

Installation Instructions Bending Device SinglePowerLine 0812 1 Function of the Bending Device This bending device can be used to bend conductor rails horizontally and vertically. In horizontal bends, a maximum radius of R = 15 m can be achieved. 2 Notes Danger of crushing! There is a risk that fingers can be crushed if you reach into the machine while it is run- ning. -
Page 3: Producing A Curve
Installation Instructions Bending Device SinglePowerLine 0812 3 Producing a Curve Place the conductor rails in front of the bending device (e.g. on roller stands). Since the profile is asymmetrical, a slight twisting cannot be entirely ruled out. Installing the rail bend in the hanger clamp generally orients the rails correctly, so that the passage of the current collector is not impeded. - Page 4 Installation Instructions Bending Device SinglePowerLine 0812 If the adjustable roller is set to 8.6 using the scale, the resulting radius will be about 15 m. Fig. 2: Producing a horizontal bend with bending device 0812 (material no.: 081010) Fig. 3: Producing a vertical bend with bending device 0812 (material no.: 081010) 1 = Inside bend 2 = Outside bend ...
-
Page 5: Preventing Stripping/Clamping Of The Collector Head On The Insulation Profile
Installation Instructions Bending Device SinglePowerLine 0812 4 Preventing Stripping/Clamping of the Collector Head on the Insulation Profile To prevent the collector head from being stripped/clamped, the following procedure can also be used for larger radii: The insulation profile can be slotted in horizontal bends to prevent stripping/clamping of the insulation (2). The slotting reduces the degree of protection to IP 20 and may only be carried out with a safety extra-low voltage DC 48 V/AC 65 V. -
Page 6: Auxiliary Tools And Others
Installation Instructions Bending Device SinglePowerLine 0812 5 Auxiliary Tools and Others If the rail is twisted after bending, it can be straightened using the optional Setting Tool 0812 (Order No.: 08-W100-0594) (see Fig. 6). The Setting Tool 0812 is not included in the scope of delivery. ATTENTION! Fig.
