DESCRIPTION
1
#10-32 X 5/8" SCREW (1,6 CM)
2
WASHER 1/4" DIA (0,6 CM)
3
NUT #10-32
4
RIGHT WALL
5
LEFT WALL
#8 X 1 1/4" (3.2 CM) SCREW
6
PAN QUADREX
TAPPING SCREW
7
#8 X 1/2" (1,3 CM)
8
BRACE
9
SHOWER BASE
10
DRAIN
11
SILICONE
12
GUARD RAIL

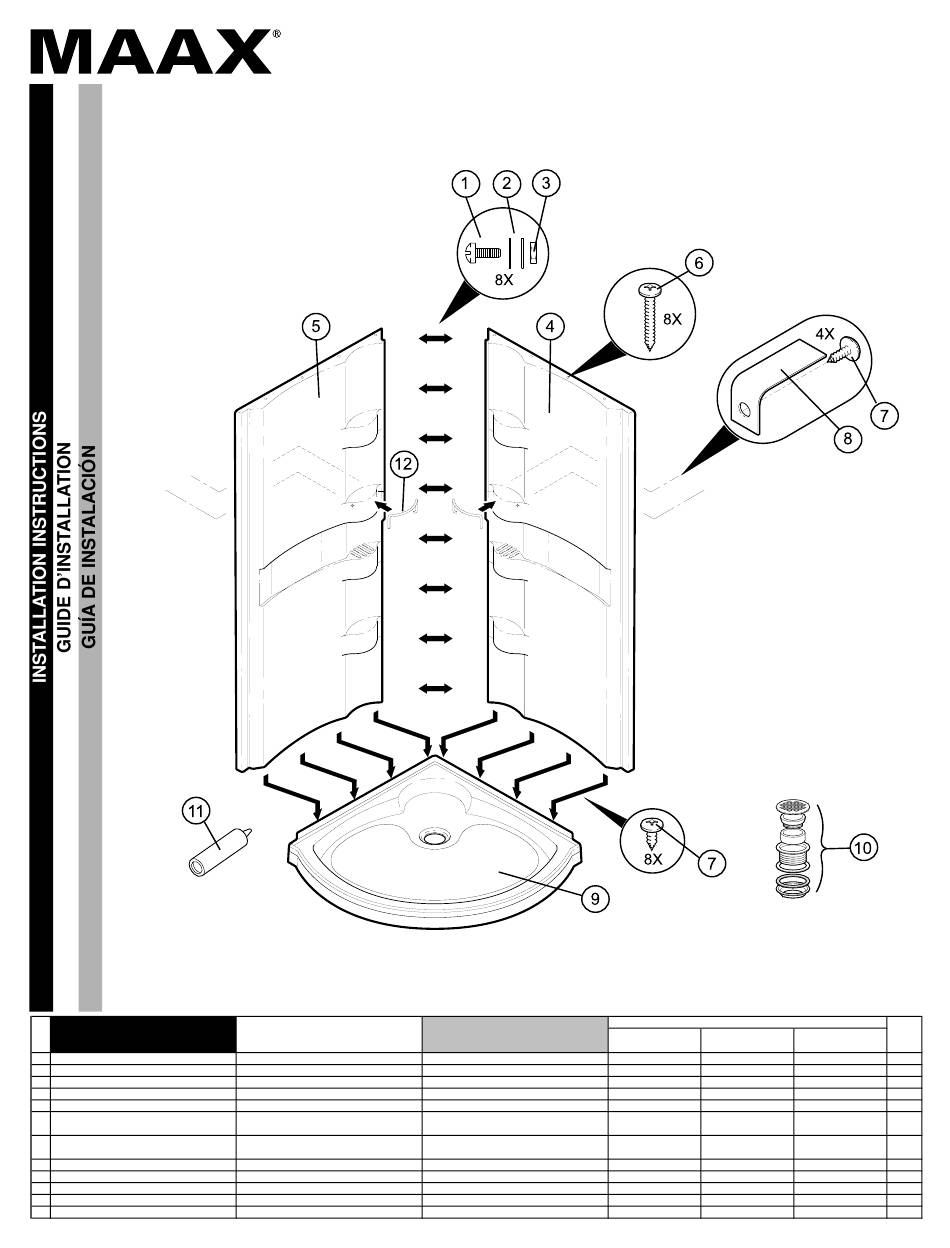

100588 / 101111 / K3636-B shown / Modèle 100588 / 101111 / K3636-B illustré /
Modelo 100588 / 101111 / K3636-B ilustrado
DESCRIPTION
VIS #10-32 X 5/8" (1,6 CM)
RONDELLE 1/4" DIA (0,6 CM)
ÉCROU #10-32
MUR DROIT
MUR GAUCHE
VIS #8 x 1 1/4" (3,2 CM)
PAN QUADREX
VIS TARAUDEUSE
#8 X 1/2" (1,3 CM)
ÉQUERRE
BASE DE DOUCHE
DRAIN
SILICONE
BARRE DE RETENUE
100575 / 101107 / K3131-B
100584 / 101109 / K3434-B
100588 / 101111 / K3636-B
DESCRIPCIÓN
TORNILLO #10-32 X 5/8" (1,6 CM)
ARANDELA DE 1/4" DE DIA (0,6 CM)
TUERCA #10-32
PARED DERECHA
PARED IZQUIERDA
TORNILLO #8 x 1 1/4" (3,2 CM)
PAN QUADREX
TORNILLO AUTOTRABADOR
#8 X 1/2" (1,3 CM)
ESCUADRA
BASE DE LA DUCHA
DESAGÜE
SILICONA
BARRA DE RETENCIÓN
PART No / No DE PIÈCE / No DE PARTE
K3131-B
K3434-B
100575 / 101107
100584 / 101109
10002814
10002814
10002863
10002863
10002871
10002871
10005510-003
10005525-003
10005509-003
10005524-003
10002824
10002824
10002825
10002825
10002964
10002964
10005497-003
10005503-003
10000040
10000040
10000331
10000331
10005555
10005555
QTY
K3636-B
QTÉ
CANT
100588 / 101111
10002814
8
10002863
16
10002871
8
10005529-003
1
10005528-003
1
10002824
8
10002825
12
10002964
4
10005506-003
1
10000040
1
10000331
1
10005555
2
10011648
