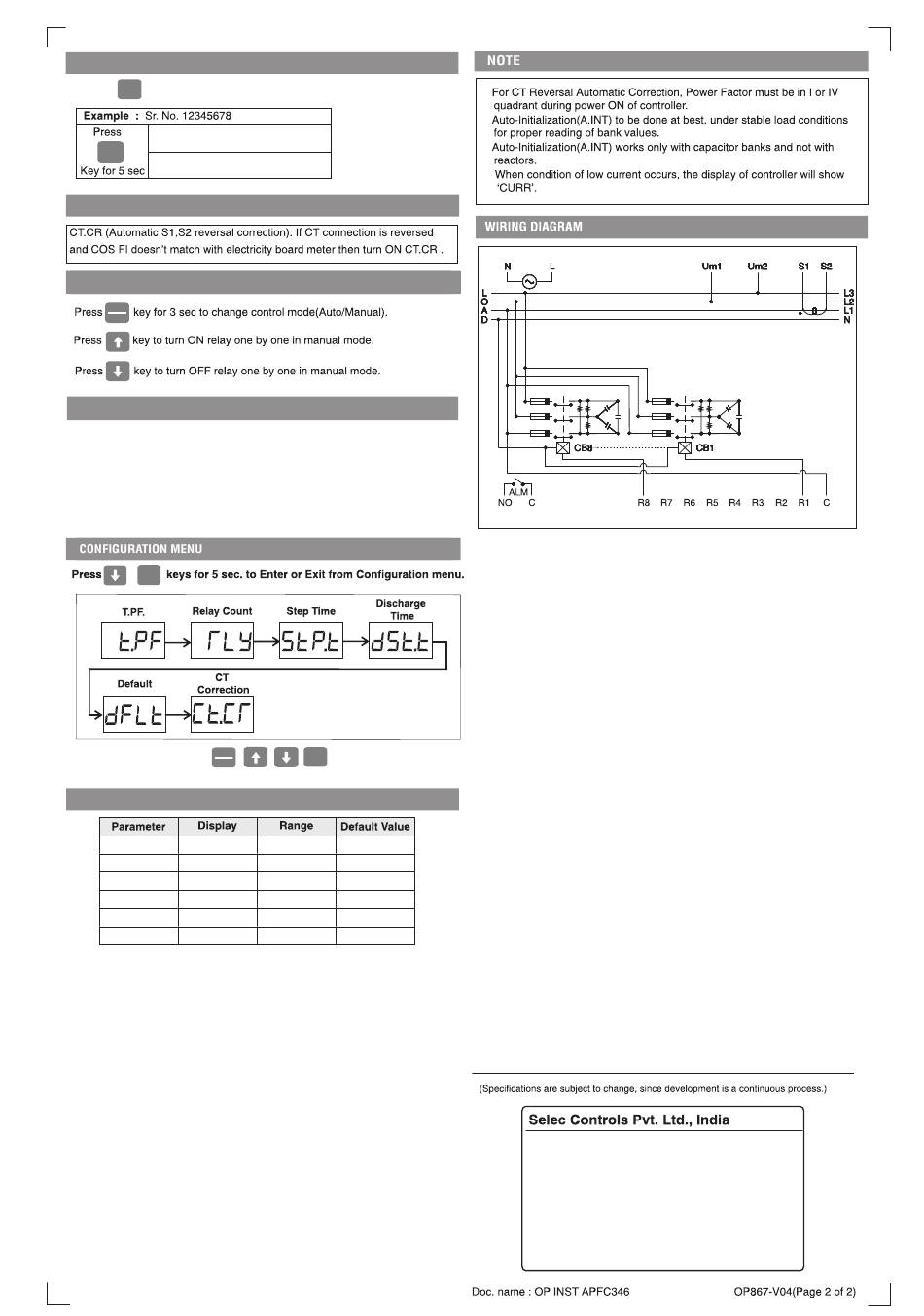

Selec APFC346 Operating Instructions page 2

SERIAL NUMBER DESCRIPTION
Press Key for 5 sec to display 8 digit serial number
SAVE
Display 1234 for 1sec.
SAVE
After 1 sec displays 5678 for 1 sec.
CT.CR MODE DESCRIPTION
AUTO / MANUAL MODE DESCRIPTION
AUTO
MAN
USER GUIDE
a) Manual switching (MAN) : When this switching program is selected,
the capacitor steps are controlled manually by the user.
b) Automatic switching (AUTO) : This automatic switching program uses
intelligent switching sequence. The step switching sequence is not fixed and
the program automatically selects the most appropriate steps to switch in or
out in order to achieve shortest reaction time with minimum number of steps.
+ SAVE
AUTO
There are 4 dedicated keys ,
MAN
configuration menu
CONFIGURATION MENU
Target PF
T. PF
Relay count
RLY
Step time
STP.T
Discharge Time
DIS.T
Default DFLT
CT Correction CT.CR
, , to scroll through
SAVE
-0.800 to 0.800 1.000
1 - 8 8
1s-999s 15s
1s-999s 40s
YES/NO NO
ON/OFF OFF
!
!
!
!
