jablotron JA-154J MS II Quick Start Manual

The JA-154J MS II Bi-directional four-button key fob
The JA-154J MS II is designed to
remotely control a security system, various
appliances (utilizing programmable PG
outputs) or to trigger panic alarms. The key
fob can also be enrolled to multipurpose
relays such as the AC-16x series for direct
relay control according to the pre-set
mode. The remote is equipped with optical
and acoustic indication. It checks its battery
status and indicates when the battery is
nearly discharged. The remote commu-
nicates via the Jablotron wireless protocol
and is powered by a single power cell. The
remote takes up a single position in the system.

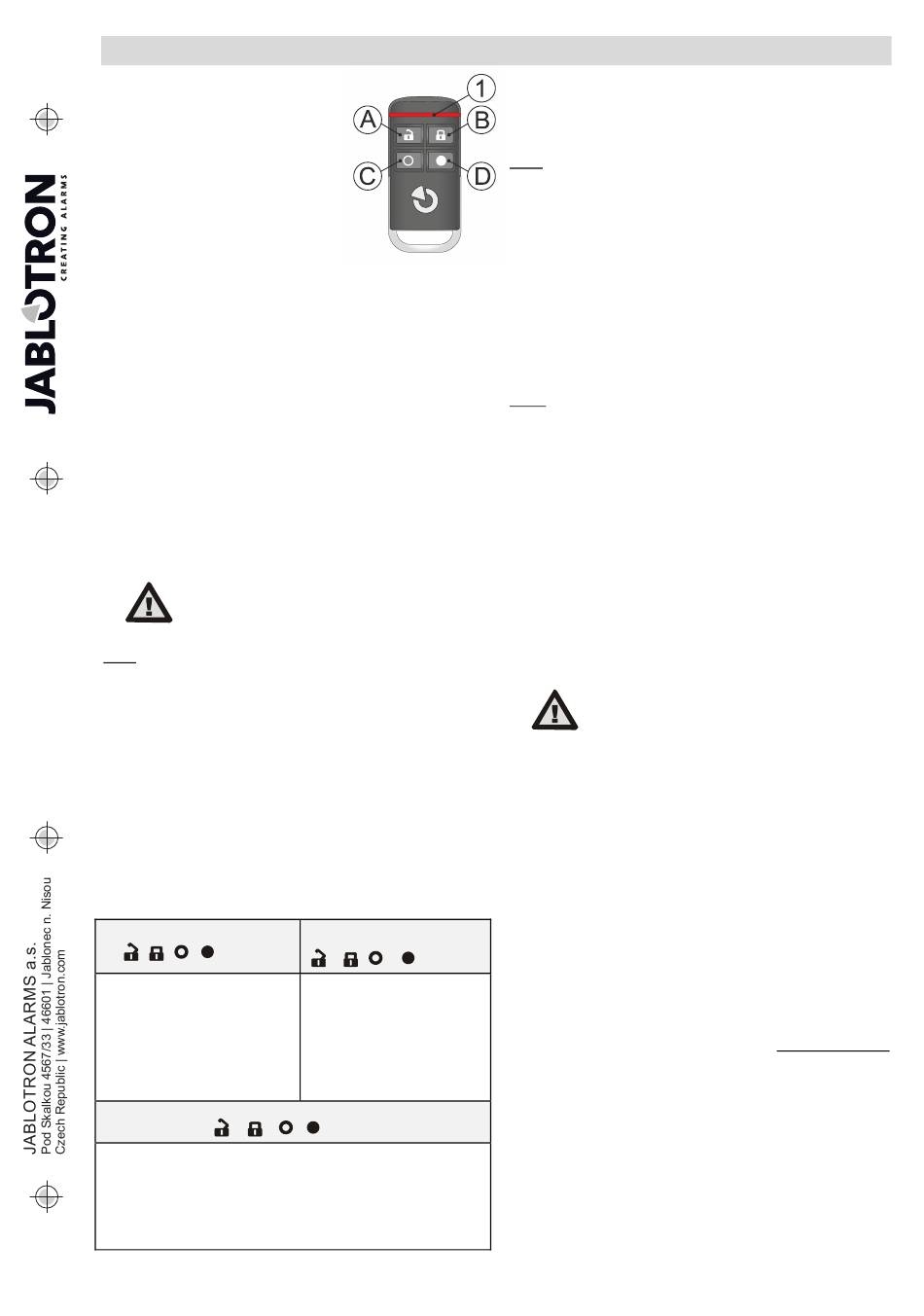

Figure: 1 – LED indication A, B, C, D – buttons, see their functions
according to table 1.
Enrolling the remote control to a control panel
There must be a JA-11xR radio module installed in the control panel for
the ability to work with a control panel. It occupies one position in the system.
The remote can be enrolled
JABLOTRON 100+ systems. One pair of buttons can control several
sections at the same time (common control) and it can show the current
status of the section or PG output.
1. The control panel has to be in service mode.
2. Basic procedure:
a. Go to the F-Link software, select the required position in the
Devices tab and launch enrollment mode.
b. For transmission of an enrollment signal press and hold buttons
(A+B) simultaneously for at least 3 s (within this time the yellow
LED flashes rapidly).
c. After 3 s the enrollment signal is sent and confirmed by one long
yellow LED flash. Release both buttons and close enrollment
mode.
To set the keyfob to comply with security
grade 2 use F-Link SW, Parameters tab
and the option "Perform EN50131-1".
(See the
installation manual)
Notes:
−
Enrolling the remote control to the system is possible by entering
the production code via F-Link software. The production code is on
the sticker with a bar code glued onto the battery holder inside the
remote. All digits in the
(example: 1400-00-0000-0001)
−
If you want to remove the remote control from the system (for
instance when someone has lost it), erase it from the particular
address of the control panel.
Setting the properties
Perform settings using F-Link software – Devices tab. Click on the
JA-154J´s Internal settings. Then a window appears automatically
where you can set the following parameters:
Functions of the buttons: set a particular function for the pair of
buttons A-B or C-D (typically setting / unsetting, OFF / ON switching of
some appliance, etc.) or a function for each single button A, B, C, D
(gate opening, garage door opening, etc.) and also for a double press of
the remote. See the following table 1.
Reaction for single button
/ / /
(A/B/C/D)
•
None (button not used)
•
Change PG status
•
Copy PG
•
Silent panic *)
•
Audible panic*)
•
Health troubles
•
Report A, B, C, D
Reaction for pair of buttons (segment function)
- / -
•
Unset / Set
•
Unset / Partially set
•
Unset / Partially set / Set
•
Unset / Set with confirmation
•
Unset / Partially set with confirmation
•
Unset / Partially set / Set with confirmation
•
PG OFF / ON
Table 1. Button function options overview
JA-154J MS II
to an arbitrary number
JA-10xK control panel
production code are required
Reaction for pressing
simultaneously
+ / +
(A+B/C+D)
•
None (button not used)
•
Change PG status
•
Copy PG *)
•
Silent panic **)
•
Audible panic**)
•
Health troubles
•
Report A, B, C, D
•
Read status ***)
(A-B/C-D)
For each function selected for a remote control button it is necessary
to select the appropriate PG or sections to be controlled, or from which
reports should be reported (panic, etc.). For the common control of
multiple sections it is not recommended to operate a common section,
but to select the desired section in the remote control internal settings.
Notes:
*) Once a button (with the "Copy PG" function enabled) is pressed and
held, the activation signal is transmitted every second. The function
can be utilized to extend the duration of a PG output (said PG shall
must the "copy PG" function enabled). The maximal length of
continuous transmission is 1 minute.
**) The „Copy PG" reaction to a double press can be used for a 1 s
impulse only for the selected PG – double button pressing cannot
send 1s activation signal repeatedly unlike single buttons.
***) The reactions of the buttons which are not supported when the
system is configured comply with security grade 2.
****)If there is a pre-set function for the pair of buttons A+B (typically
Unset / Set section or PG OFF / ON), then that option also triggers
the option „Read status". If this option is enabled the remote
reacts to a double press by showing the current status of the
of
section or PG.
For all functions related to setting the sections, the control panel
follows the option „Ways of setting" selected in the Parameters tab.
a. For „with confirmation" types of setting (see table 1), for „set
with warning" options and for „set with confirmation" pressing
the buttons in an 8 s period can be repeated and the command
is performed..
b. The option „Do not set with active zone", doesn´t allow the
system to be set using a remote control (keyfob) when any
zone with an Instant reaction is active. To set the system all
zones have to be in standby.
Take over a user´s access privileges: Taking over a user´s access
privileges for the sections and time limited access according to the
specific user, it respects individual access to the controlled section and
also limited access to a section if pre-set. Factory settings: disabled.
Take over a user´s identity: The selected user will be visible as
a source in the event log. Factory settings: disabled.
Delayed panic: Valid for reactions such as Silent panic and Audible
panic. The delay can be set from 5 to 240 s. Cancelling the panic alarm
during a running delay can be performed by repeated pressing of the
specific button.
The control panel is able to run a maximum
of 5 simultaneous timers (delayed panic
alarms).
Operation with a multipurpose relay (MPR)
The remote control can also be enrolled to a multipurpose relay of the
AC-16x series, to control a relay according to the chosen mode. Each
button should be enrolled to the MPR with a different mode. Even one
remote can be enrolled to multiple MPRs for example with a different
function. When you enroll a keyfob to the control panel and also to an
MPR within its RF range, don´t select the same buttons. To enroll
a keyfob to an MPR, follow the installation manual of the MPR.
Locking the keyfob
The remote control buttons can be locked (blocked) against
accidental pressing. Locking is disabled by default, pressing any button
triggers its function immediately.
If the buttons are locked, a control panel command is sent when
a button is pressed 2x quickly (2x per 1 s) it is also valid for the panic
function.
Caution: When a reaction for pressing buttons (A+B) or
(C+D) simultaneously is set (for example a panic alarm or
garage door control), it is necessary to mind that the action is
performed first.
The lock can be activated by simultaneously pressing and holding
the pair of buttons (A+B) or (C+D) until the yellow LED (1) starts
flashing, usually in 3 s. When the yellow LED (1) is flashing release
button B and press it again. Activation of the lock function is performed
and confirmed by double flashes of the yellow LED and a double beep.
After this confirmation release all buttons.
The lock is deactivated by repeating the procedure above.
Deactivation of locking is confirmed by one flash of the yellow LED and
one beep.
1 / 2
