Advantech IMC-150LPI Startup Manual

IMC-150LPI
Long Reach PoE+ Extender

Overview

Injecting data and power together, the IMC-150LPI is
brand new leading product which break the 100
meters limitation to greater Ethernet transmission
distances. Supports 10/100Mbps Ethernet over
twisted pair cable (CAT-5, UTP).
Provides user configurable DIP switch selection of
LFPT feature and force speed setting. Flexible and
freely extends existing Ethernet networks to reach
remote IP devices.
The IMC-150LPI PoE+ extender compliant with
IEEE 802.3at PoE+ standard, it delivers data and
power over Ethernet cable without the distance
limitations of traditional copper wires. Extends data
and power transmission reach up to 800 meters. Also
acting as both power sourcing equipment(PSE) and
powered device (PD), power source from PoE+
switch or power with 48VDC input to either local or
remote sites.

Packing List

Before installation, please make sure that you have
received the following:
 1 x IMC-150LPI PoE+ extender
 1 x Wall-mount kit
 1 x Din-rail
 Startup Manual
If anything is missing or damaged, contact your
distributor or sales representative immediately.
c
Datasheet Do uments
The Startup manual and product data sheet can be
download on the Advantech's website.
Notes
For more information on this and other Advantech
products, please visit our websites at:
http://www.advantech.com/products
For technical support and service:
http://www.advantech.com/support/
This startup manual is for IMC-150LPI
P/N: 2049150L00
1 Startup Manual

Specifications

 Compatibility: IEEE 802.3, 802.3u, 802.3x,
802.3at/af
 LAN: 10/100Base-T(X)
 Connectors:
- 1 x 10/100Mbps RJ-45 PD
- 1 x 10/100Mbps RJ-45 PSE
 LED Indicators: PWR, 1-PAIR, PSE
 DIP Switch: LFPT, AUTO-Nego, Speed
 Power:
- Power Consumption: Max. 33 W
(Full load PoE+)
- Power Input: 48V DC
- Power Output 30W
- Connectors: 2P Pluggable Terminal Block,
DC Jack
 Dimensions (W x H x D):
92.58 x 21.08 x 98.04 mm (3.65 x 0.83 x 3.86 in.)
 Enclosure: IP30
 Operating Temperature: -40 ~ 75°C (-40~167°F)
 Storage Temperature: -40 ~ 80°C (-40 ~ 176°F)
 Humidity: 0 ~ 95% (non-condensing)
 Railway Trackside: EN 50121-4
 EMC: CE, FCC

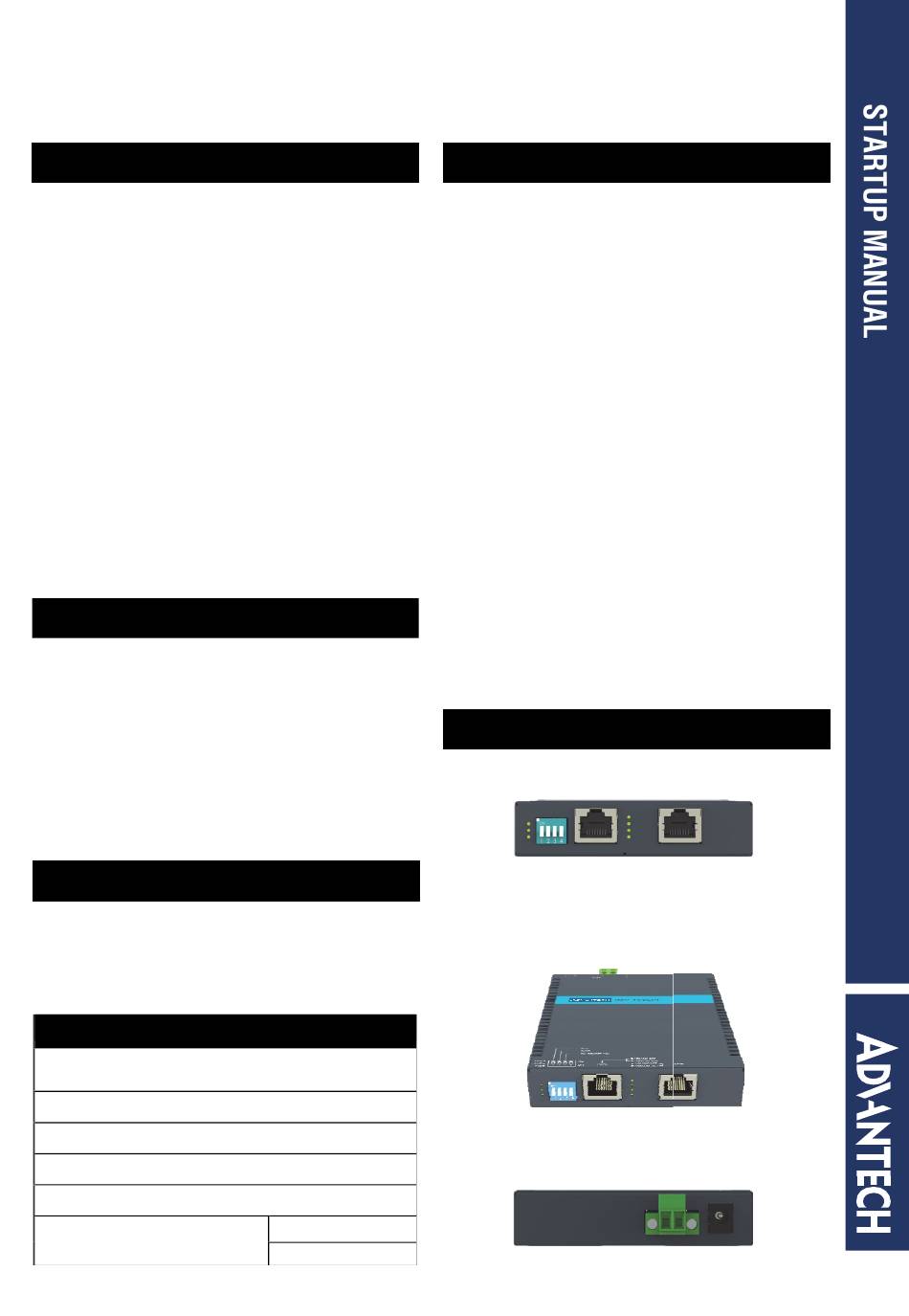

Panel View

Front Panel View
Top Panel View
Rear Panel View
1st Edition
August, 2019
