Thank you for purchasing SHINPO Smokeless Grill.
●
Before operating this product, please read and understand the instructions contained in this
manual.
●Keep this manual in a place where it can be reached for immediate reference.
●If necessary, please contact us for clarification and/or further instructions.

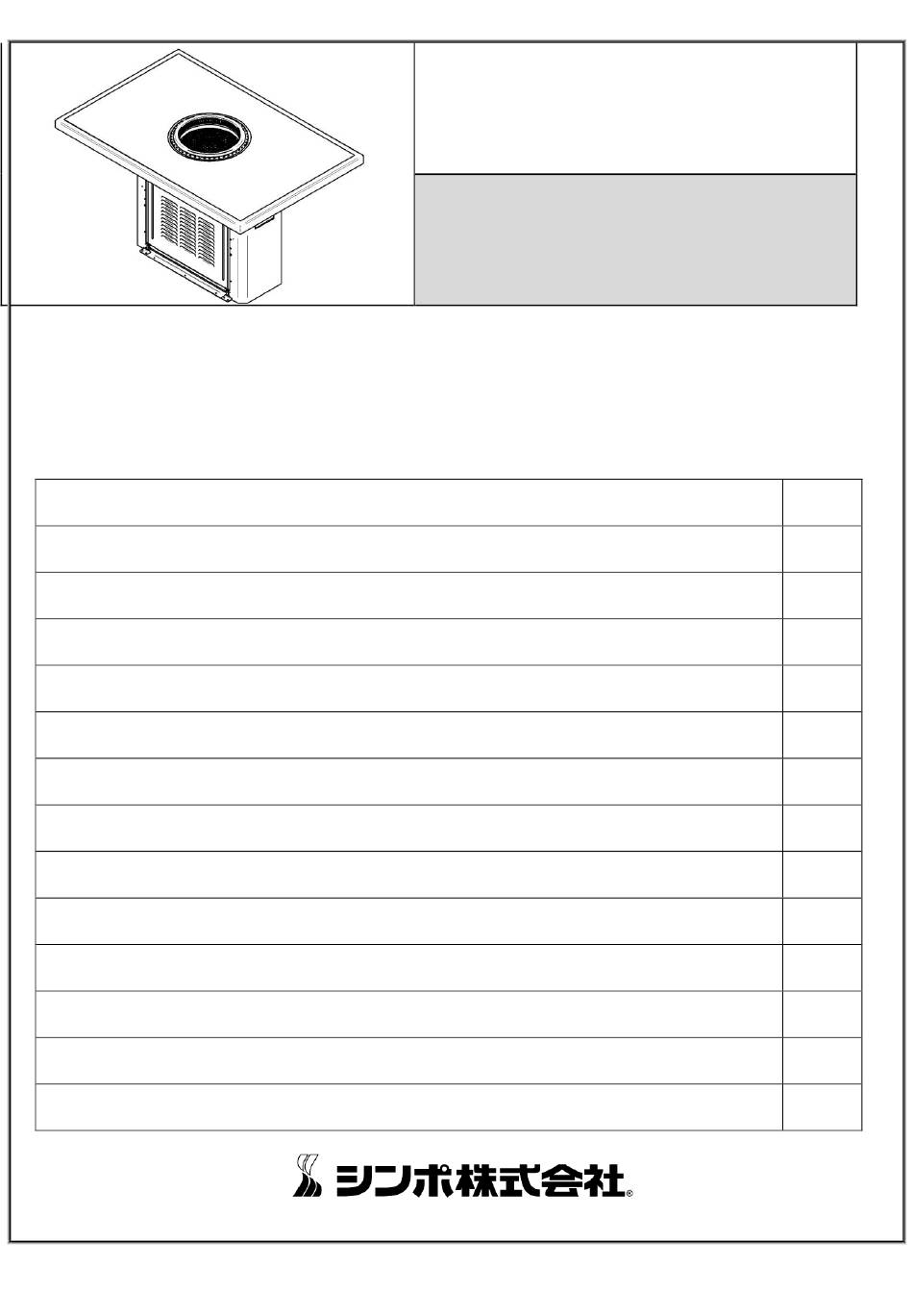

CONTENT
◆Parts Identification Main Unit・・・・・・・・・・・・・・・・・・・・
◆Parts Identification Parts Accessories・・・・・・・・・・・・・・・・・・・・・
◆Safety Precautions・・・・・・・・・・・・・・・・・・・・
◆Preparation before use・・・・・・・・・・・・・・・・・・・・
◆Iron Grill and Crimp Grill Maintenance・・・・・・・・・・・
◆Operating Instructions・・・・・・・・・・・・・・・・・・・・・
◆Electric Leakage Breaker・・・・・・・・・・・・・・・・・・・・
◆Daily Inspections & Maintenance・・・・・・・・・・・・・
◆Troubleshooting・・・・・・・・・・・・・・・・・・・・
◆Safety Features・・・・・・・・・・・・・・・・・・・・・・
◆Specifications・・・・・・・・・・・・・・・・・・・・・
◆Minimum Clearances・・・・・・・・・・・・・・・・・・・・・・・

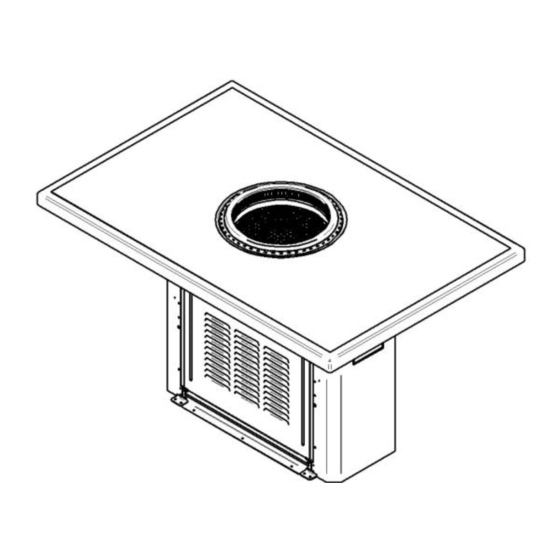

SMOKELESS GRILL
OPERATIONAL MANUAL
ＳＫＲＤ
1
SKRD EN0２
2
3
4
8
10
11
13
14
16
17
18
19
20
Advertisement
Table of Contents
Related Manuals for SHINPO SKRD ENO 2
Summary of Contents for SHINPO SKRD ENO 2
-
Page 1: Table Of Contents
SKRD EN0２ SMOKELESS GRILL OPERATIONAL MANUAL ＳＫＲＤ Thank you for purchasing SHINPO Smokeless Grill. ● Before operating this product, please read and understand the instructions contained in this manual. ●Keep this manual in a place where it can be reached for immediate reference. -
Page 2: Parts Identification Main Unit
SKRD EN0２ Parts Identification-Main Unit Rating Label Model □□□□□□□ □□□□□□□ Gas Type LP ガス用 都市ガス用 Power Source 00000kW 00000kW □□□□□□□ □□□□□□□ ID No Table Top Electric Leakage Breaker Cabinet Gas Supply Valve Slim Control... -
Page 3: Parts Identification Parts Accessories
SKRD EN0２ Parts Identification-Parts & Accessories Grill Plate Top Ring H20-1C-53A-02 Ceramic Charcoal A20-1B-01A-01 Grill Holder H20-1Z-04A-01 Sana H95-1J-01A-01 Burner Cover H20-1L-95A-01 3D Filter H10-7D-53A-01 Drain Pan H20-1F-94A-01 H10-7D-45A-01 Burner Head H20-5R-35A-01 Filter Ring Burner Body H10-7D-50A-01 H20-5R-27A-01 Debris Trap H20-1Q-21A-01 Outer Casing N20-1D-30A-01... -
Page 4: Safety Precautions
SKRD EN0２ Safety Precautions We are providing these instructions with illustrations for clarity and easy understanding in order to avoid any harm to the user or damage to the property. Insure proper installation and servicing. Have the product installed and grounded by a qualified technician. - Page 5 SKRD EN0２ WARNING ◆Power Source ▽ Do not use other than the power source specified for this product. ▼ Failure to observe this may result in a risk of fire or explosion. ◆Fire Prevention ▽ Do not place flammables, except food items to be cooked, near the heating surface.
- Page 6 SKRD EN0２ WARNING ◆Emergencies ▽ If you sense an abnormal combustion, odor or sound, immediately stop the use, refer to the “Troubleshooting” section of this manual. ▽ In an emergency such as earthquake or fire, immediately stop the use of this product. Before you use the product again, contact your distributor or us for inspection and, if necessary, repair.
- Page 7 SKRD EN0２ WARNING ◆Disassembling ▽ Do not disassemble this roaster, removable parts excepted. (See P.2 for the list of removable parts) ▼ Failure to observe this may result in a damage to the product, electric shock or injury. ◆ Prevention of Burn ▽...
-
Page 8: Preparation Before Use
SKRD EN0２ Preparation before Use ◆ Setting up the Parts (Refer to P.1,2) 2. Please attach the 3D filter to the bottom 1. Assembly of the filter set of the outer casing. 3D Filter Outer Casing 4. Please attach the burner head to the 3. - Page 9 Grill Net Outer Ring When using a pot or a kettle, please use the Spider Ring Grate specified by Shinpo (sold separately). ◆ When using the Large straight-baffled Spider Ring Grate Remove the Grill Plate, Top Ring, Ceramic Charcoal, DF, Sana, and Burner Cover. Fit it inside of the top of the drain pan.
-
Page 10: Iron Grill And Crimp Grill Maintenance
SKRD EN0２ Iron Grill and Crimp Grill Maintenance Super Net Plate Grill Crimp Grill 1. For first time use, (1) Wash and clean with detergent before use. (2) To dry completely, using the grill and heat well. 2. Put Cooking oil, (1) Put some Cooking oil to the surface of grill after dry. -
Page 11: Operating Instructions
SKRD EN0２ Operating Instructions (Slim Control Type) Before you turn on the power and open the Gas Shutoff, make sure the Burner Control Knob is at Off position and that every direction in the “Preparation before use” section of this manual has been precisely followed. - Page 12 SKRD EN0２ ◆Extinguishing Fire ▼ Slowly slide the Burner Control Knob to OFF position to turn off the burner. ▼ Make sure the Burner Control Knob is at OFF position ▼ Make sure the Burner is off. Close the Gas Shutoff Cock and turn off the power.
-
Page 13: Electric Leakage Breaker
SKRD EN0２ Electric Leakage Breaker Please follow the cautionary instructions insure proper installation and servicing in order to avoid any harm to the user or damage to the property. Do not touch the terminal. DANGER Do not disassemble or modify the product. Failure to observe this may result in a damage to the product, electric shock or injury. -
Page 14: Daily Inspections & Maintenance
SKRD EN0２ Daily inspection and maintenance ▼ For safe and efficient operations, please follow the daily inspection and maintenance procedures. ▼ Before inspecting and cleaning, please make certain that the main gas valve is closed and the equipment is cold. ◆Please check that: ①... - Page 15 SKRD EN0２ ⑥ Take out the each Ceramic Charcoal. Brush top, back, and side part using the wired brush everyday. The dirty Ceramic Charcoal may break easily. Never wash in water. Wet Ceramic Charcoal may burst when they heated. ⑦ Please remove the 3D filter once per week and wash it with the rough side of a scrubbing sponge to remove built-up oil, fat, and grime.
-
Page 16: Maintenance Of The Nozzle And Flame Sensor Unit
SKRD EN0２ Maintenance of the Nozzle and Flame Sensor Unit 【Nozzle Maintenance】 If the burner's intensity has declined, it is most likely that dust or an obstruction is blocking the nozzle aperture. Remove the Burner and Debris Trap to perform maintenance Nozzle Cleaning Nozzle... -
Page 17: Troubleshooting
SKRD EN0２ Troubleshooting Trouble Solution Cause Position the Burner Control Knob to ○ ○ ○ Gas Shutoff Cock is closed Off. Open the Gas Shutoff Cock. Insufficient quantity of gas in ○ ○ ○ the LPG gas tank Follow the directions described in this ○... -
Page 18: Safety Features
SKRD EN0２ Safety Features ▽ Misfiring Detector Prevents gas being discharged when the burner is not lit. ▼ When fire goes out for any reasons, this devise detects it and shuts off the supply of gas to the Burner, preventing gas being discharged into the air. ▽... -
Page 19: Specifications
SKRD EN0２ Specifications Model SKRD Natural Gas: 3.15kW LPG:3.02kW Consumption Operating Slim Control Method R1/2 or Rubber Hose Connection (Ø 9.5) Connection Power 100V~240V Source Power Less than 5W Consumption Ignition Spark Discharge Ignition Method Grill Plate Ø280mm Burner Bunsen Burner Heating Radiant heat generated by Ceramic Charcoal applied to Grill Plate Method... -
Page 20: Minimum Clearances
SKRD EN0２ Minimum Clearances ▽ The appliances must be installed as below. 《単位 ： ㎜》 Unit: mm Grill Grill Side Face... - Page 21 Smokeless Grill, Corp. (California, USA) 5820 Stoneridge Mall Rd., Suite 325, Pleasanton, CA 94588, USA TEL: +1 925-223-8673 FAX: +1 925-399-6568 Shinpo Co., Ltd. (Nagoya, Japan) 3-10 Yawatayama, Miyoshi-cho, Miyoshi-city, Aichi 470-0214 JAPAN TEL： +81 561-32-3221 FAX： +81 561-32-3177 The printed installation guide can be downloaded:...
