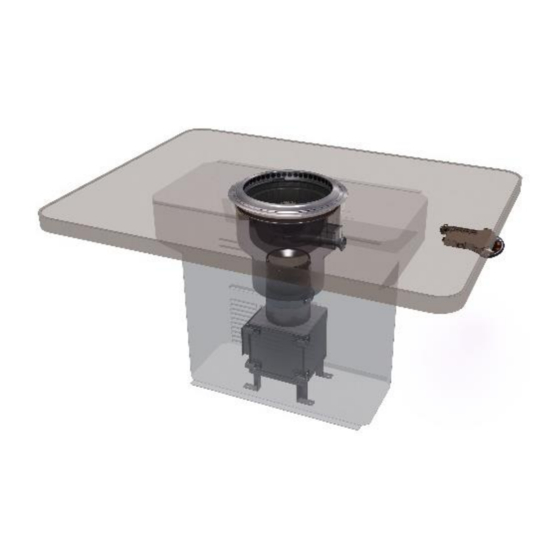

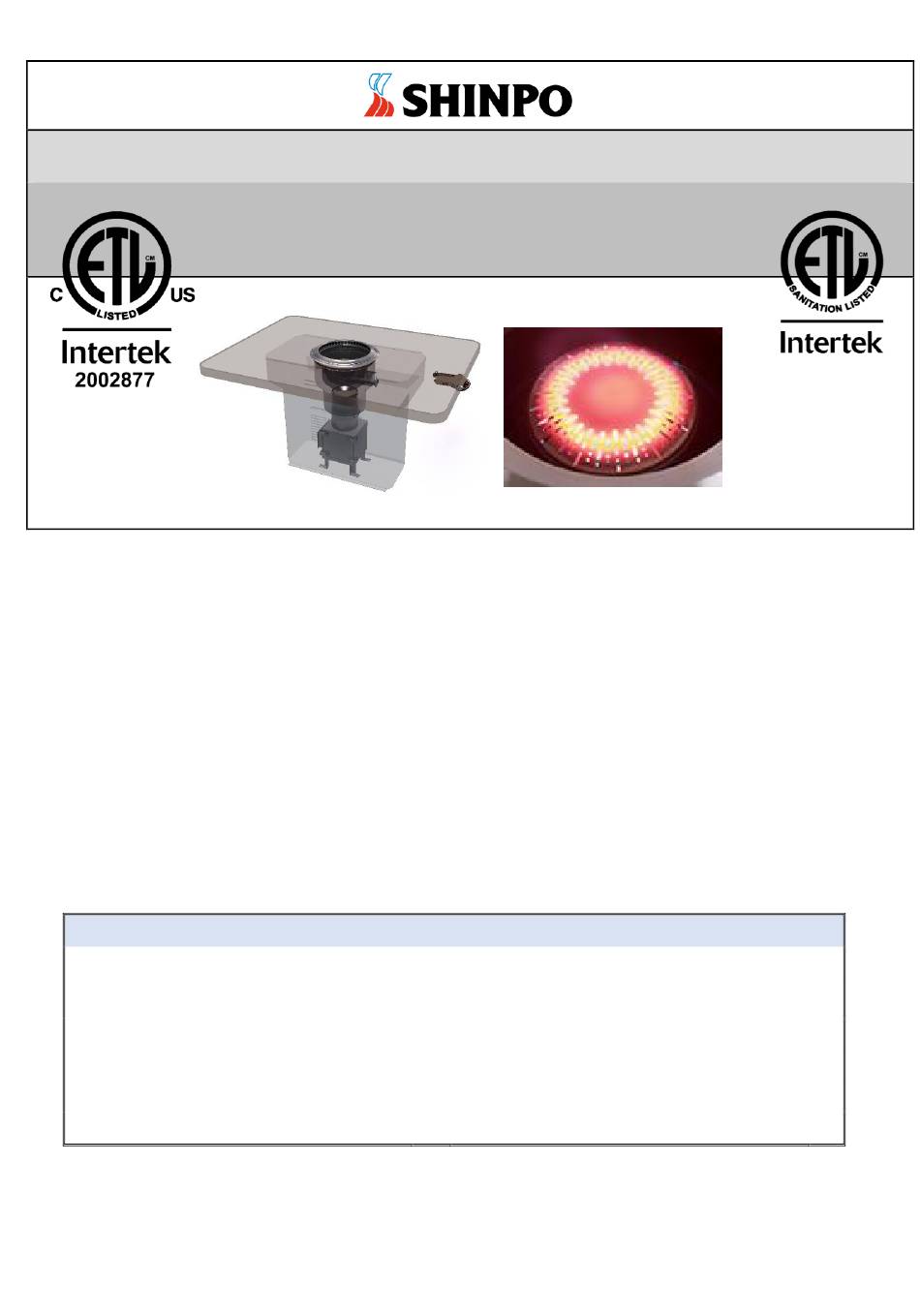

SMOKELESS GRILL OPERATION MANUAL - EN
Thank you for purchasing SHINPO Smokeless Grill.
Before operating this product, please read and understand the instructions contained in the manual.
1.
Keep this manual in a place where it can be reached for immediate references.
2.
If necessary, please contact your distributor form whom you have purchased the product or us for clarification
3.
and/or further instructions.
Tested in accordance with ANSI Z83.11: 2016 Ed.4 CSA 1.8: 2016 Ed.4 standard for gas food service
4.
equipment.
Check your local building codes for the proper method of installation. Use professional, qualified and licensed
5.
contractors and service persons to install and maintain products.
Installation needs to be in accordance with NFPA 96 (USA). For installation in Canada, please refer to the
6.
Authority Having Jurisdiction for requirements on installation of commercial cooking equipment.
7.
Exhaust air flow rate: 260 CFM. The exhaust air flow rates were established under controlled laboratory
conditions.
Greater exhaust air is required for complete vapor and smoke removal in specific installations.
8.
Do not use any container with oil on a griddle always keep drain pan filled with clean water.
9.
10. This product is designed for commercial use. For indoor use only.
1. Parts Identification Main Unit・・・・・・・・・・ 2
3. Safety Precautions/Interval・・・・・・・・・・・
4. Preparation before use・・・・・・・・・・・・・・・ 8
5. Operation Instructions・・・・・・・・・・・・・・・
6. Recommended Cooking Time・・・・・・・・・ 12
SPRW-IS Operation Manual EN 202208
ＳＰＲＷ-ＩＳ
CONTENT
3
4
8. Burner Inspection/Maintenance・・・・・・・・
9. Troubleshooting・・・・・・・・・・・・・・・・・・・・・
10
10.Safety Features・・・・・・・・・・・・・・・・・・・・・
11.Specifications・・・・・・・・・・・・・・・・・・・・・・・
Drain Pan / Radiant Plate / Radiant Plate
Stand / C-Box / Baffle Filter / Oil Tray
1
13
15
17
18
19
Advertisement
Table of Contents
Related Manuals for SHINPO SPRW-IS
Summary of Contents for SHINPO SPRW-IS
-
Page 1: Table Of Contents
SMOKELESS GRILL OPERATION MANUAL - EN ＳＰＲＷ-ＩＳ Thank you for purchasing SHINPO Smokeless Grill. Before operating this product, please read and understand the instructions contained in the manual. Keep this manual in a place where it can be reached for immediate references. -
Page 2: Parts Identification Main Unit
SPRW-IS Operation Manual EN 202208 1. Parts Identification-Main Unit Burner Control Knob Ｔａｂｌｅ Ｔｏｐ Slim Control Ｃａｂｉｎｅｔ Baffle Filter Ｓｉｄｅ Ｐａｎｅｌ Ｃｉｒｃｕｉｔ Ｐｒｏｔｅｃｔｏｒ Ground Fault Breaker BreakerGround Fault BreakerGround Fault BreakerGround Fault BreakerGround Fault... -
Page 3: Parts Identification & Accessories
SPRW-IS Operation Manual EN 202208 2. Parts Identification-Parts & Accessories ＜The following four items are not included in SPRW-IS, may be purchased separately＞ 「Optional Parts」 Radiant Plate Radiant Plate Stand Grill Plate Gripper Drain Pan Grill Plate Burner Head Drain Pan Gripper... -
Page 4: Safety Precautions/Interval
SPRW-IS Operation Manual EN 202208 3. Safety Precautions We are providing these instructions with illustrations for clarity and easy understanding in order to avoid any harm to the users or damage to the properties. Insure proper installation and servicing. Have the product installed and grounded by a qualified technician. - Page 5 SPRW-IS Operation Manual EN 202208 WARNING ◆ Ventilation ▽ Make sure to keep an exhaust fan(s) and of appropriate capacity operating while using the smokeless grill. ▼ Failure to observe this may cause incomplete combustion due to reduce oxygen in the surrounding area.
- Page 6 SPRW-IS Operation Manual EN 202208 WARNING ◆ Emergencies ▽ If you sense an abnormal combustion, odor or sound, immediately stop the use, shut off the gas main of the unit and refer to the “Troubleshooting” section of this manual. ▽ In an emergency such as earthquake or fire, immediately stop the use of this product and, if it’s safe to do so, shut off the gas main of the...
- Page 7 SPRW-IS Operation Manual EN 202208 WARNING ◆ Disassembling ▽ Do not disassemble this roaster, removable parts excepted. (See P.2 for the list of removable parts) ▼ Failure to observe this may result in a damage to the product, electric shock or injury.
-
Page 8: Preparation Before Use
SPRW-IS Operation Manual EN 202208 4. Preparation before use Setting up parts (Refer to P.2,3) ◆ 1. Mount the Inner Casing onto the Outer Casing. 2. Mount the Burner Body onto the Inner Casing. Note: ▼ Make sure that the two projections on the backside of the Burner Body go into the corresponding holes in the Inner Casing. - Page 9 SPRW-IS Operation Manual EN 202208 ▼ Appropriate amount is approx 1 liter. ▼ Do not splash water on the Burner. ▼ If water accidentally splashes on the holes of the Burner, remove the Burner and wipe it dry with a piece of cloth.
-
Page 10: Operation Instructions
SPRW-IS Operation Manual EN 202208 5. Operation Instructions (Slim Control Type) Before you turn on the power and open the Gas Shutoff, make sure the Burner Control Knob is at Off position and that every direction in the “Preparation before use” section of this manual has been precisely followed. - Page 11 SPRW-IS Operation Manual EN 202208 ◆ Extinguishing Fire ① Slowly slide the Burner Control Knob to OFF position to turn off the burner. ② Make sure the Burner Control Knob is at OFF position ③ Make sure the Burner is off. Close the Gas Shutoff Cock and turn off the power.
-
Page 12: Recommended Cooking Time
SPRW-IS Operation Manual EN 202208 6. Recommended Cooking Times (1) The Shinpo SPRW-IS Smokeless Grill was developed for optimum use based on the suggested cooking times, below. By recommending that your customers follow these suggested cooking times, the quality of the food they grill will be enhanced and the grill's smoke-removing exhaust system will operate at peak performance. -
Page 13: Dairy Inspections & Maintenance
SPRW-IS Operation Manual EN 202208 7. Daily Inspections & Maintenance ▼ For safe operation of this product, make sure to carry out daily inspections and maintenance. ▼ Make sure to close the Gas Shutoff Cock , turn off the power, check the Exhaust Fan is not operating and allow the appliance to cool down before you attempt any inspections or maintenance work. - Page 14 SPRW-IS Operation Manual EN 202208 ◆C-Box and Baffle Filter Cleaning (1) The C-Box should be wiped with dry close in every week. (2) The Baffle filter and the tray in C-Box should be washed with soap and warm water in every...
-
Page 15: Burner Inspection/Maintenance
SPRW-IS Operation Manual EN 202208 8. Burner Inspection Install the Burner correctly and check the burner flames by comparing to the drawings below. If necessary, adjust the Damper attached to the Gas Intake of the Burner. ※Be extremely careful not to burn yourself or your clothes. Make sure the Burner and other parts have cooled down to a safe level before you touch them. - Page 16 SPRW-IS Operation Manual EN 202208 Burner Maintenance Clogged Burner Holes (with water, grease, ashes) often causes the Burner to rust shortening the operational life span of the Burner. It also causes gas to flow backward, which may result in a risk of fire or explosions.
-
Page 17: Troubleshooting
SPRW-IS Operation Manual EN 202208 9. Troubleshooting Trouble Solution Cause Position the Burner Control Knob to Gas Shutoff Cock is closed ○ ○ ○ ○ Off. Open the Gas Shutoff Cock. Follow the directions described in Air is present in the gas pipe ○... -
Page 18: Safety Features
SPRW-IS Operation Manual EN 202208 10. Safety Features ▽ Misfiring Detector Prevents gas being discharged when the burner is not lit. ▼ When fire goes out for any reasons, this devise detects it and shuts off the supply of gas to the Burner, preventing gas being discharged into the air. -
Page 19: Specifications
SPRW-IS Operation Manual EN 202208 11. Specifications Model SPRW-IS Radiant Plate Grill Product Natural Gas: 11115 Btu/hr Consumption Gas Connection R1/2 Screw Connection Power Consumption Power Source 120V Ignition Method Spark Discharge Ignition Safety Feature Overheating Detector/Misfiring Detector Articles of consumption... - Page 20 SPRW-IS Operation Manual EN 202208 Shinpo Co., Ltd. Shinpo Co., Ltd. (Nagoya, Japan) Headquarters (Nagoya) Overseas Dept. (Tokyo) Technology & Development Dept. (Nagoya) Shinpo Trading (Shanghai) Co., Ltd. (Shanghai, China)
