Summary of Contents for OPTi Kino

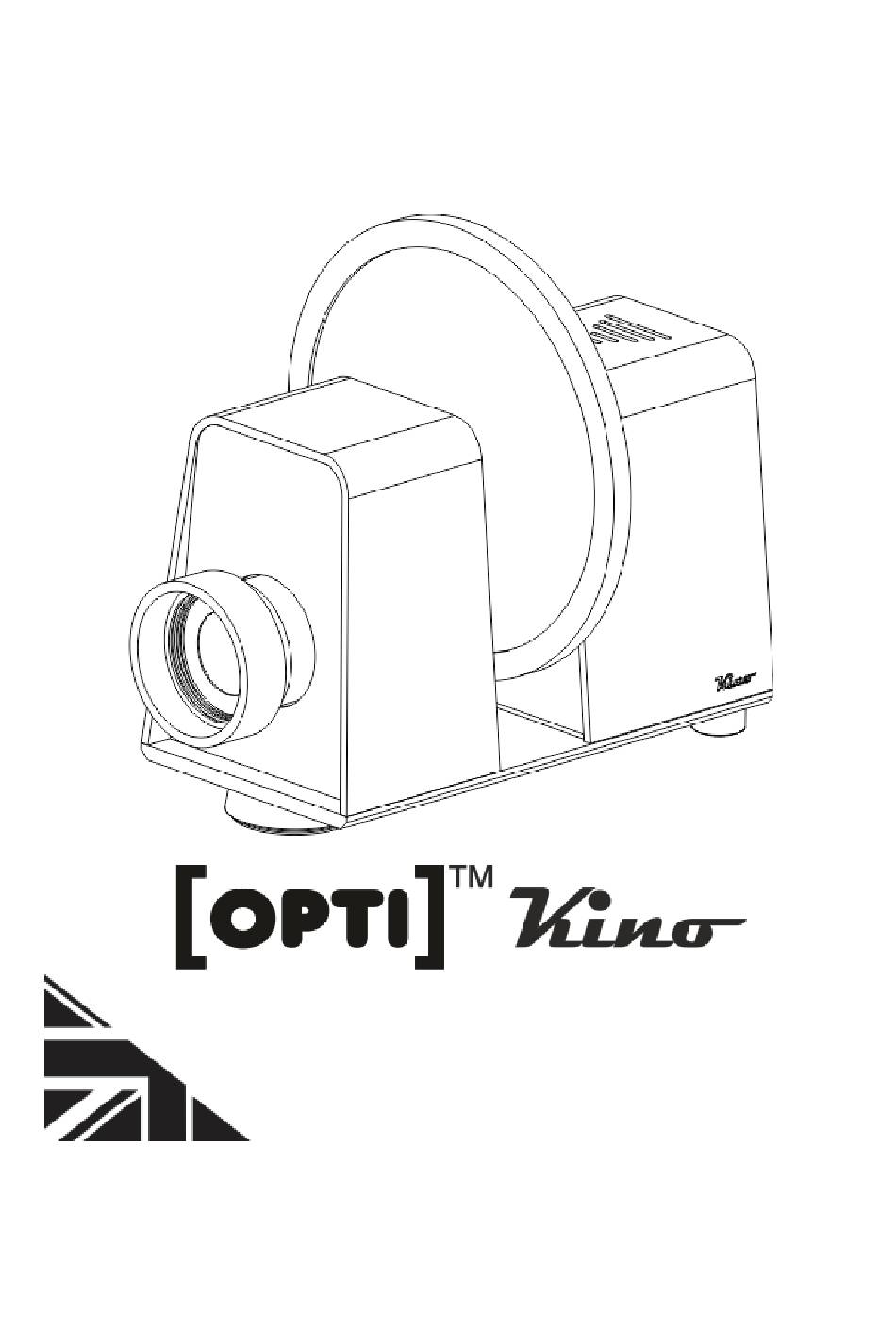

- Page 1 Product Manual Designed and Manufactured in the UK by Optikinetics...
-
Page 2: Table Of Contents
Contents Product Overview ..........Mounting the Projector ..........Inserting the Effect Wheel ..........Focusing the Image ..........Cleaning & Focussing Lens ..........Switching On/Switching Off ..........Dimming the Image ..........Using the App ..........7 to 15 F.A.Q ..........Safety Instructions .......... -
Page 3: Product Overview
[OPTI] a dimmer function and various additional features, such as on/off timer capabilities, speed and direction control, all of which are accessible via the OPTI Kinect App. The projector also includes the option for voice control capability. Packed Box Contents:... - Page 4 Installing the Projector The Kino projector can be placed on any flat surface, with a clear line of site to the area you wish to project onto. You can adjust the tilt of the Kino by twisting the front foot of the projector to increase or decrease the angle of projection.
-
Page 5: Inserting The Effect Wheel
Focussing the Image To focus the projected effect, twist the lens left or right until your desired focus is achieved. Kino projects a moving image of any size, [OPTI] however it is recommended that the maximum image projected is 4m 13"... -
Page 6: Cleaning & Focussing Lens
Use a soft tissue or lens cloth with a little methylated spirit or pure alcohol. When dusting the Kino please ensure to take care with the wooden body using appropriate cleaning fluids and materials, and gentle wiping down ensuring the cloth doesn’t catch on any corners. -
Page 7: Dimming The Image
was last disconnected. If the projector was on when power was last disconnected then it will come on. If it was in standby (off) when the power was last disconnected, it will go into standby mode (light and motor off). The ‘Manual Control Button’... -
Page 8: Using The App
Apple App Store or the Google Play Store. Alternatively, you can visit our website www.optikinetics.co.uk Configuration The [OPTI] Kino Projector should be configured to be part of your home WiFi network. This configuration process only needs to be done once. (Note: before starting the configuration, make a note of your home WiFi network SSID and the password) 1. - Page 9 5. Go to the Opti Kinect App. If not already there, go to the ‘Home’ page (bottom left of screen). 6. Make sure the projector’s light is still fading up and down, then click on the blue ‘Add Device’ button in the App. The App will now search for available devices.
- Page 10 0% brightness (i.e. off) you must use the on/off button. Full Control The full range of functions for the Kino Projector can be controlled by going to its dedicated Device Panel. From the Home page, choose which device you wish to control and click somewhere within the grey box for that device where there is no direct control button (e.g.
- Page 11 – RH button) On/Off Timer You can set a timer to turn the Kino either on or off after a chosen period of time. If the Kino is already on when you set the timer, it will turn off after the set period. If the Kino is already off when you set the timer, it will turn on after the set period.
- Page 12 Schedule You can set a schedule to turn the Kino on or off at a certain time of day and on any chosen day/s of the week. You can set multiple scheduled events to perform either on or off functions to suit your needs.
- Page 13 Groups If you have more than one Kino (or other compatible OPTI devices) added to the App, you can create a group containing two or more devices and control all devices within the group together at the same time.
- Page 14 Opti Kinect and click ‘Search’. The OPTI Kinect skill should be found and listed at or near the top of the search results. Click on the OPTI Kinect App in the list and then click on ‘Enable to Use’.
- Page 15 ‘Lights’ category) and you can control them from the App or by voice command using suitable commands. Note: if you later add more devices in your OPTI Kinect App, they might not automatically be recognised by Alexa and you may need to manually recognise them by clicking ‘+’...
- Page 16 Panel will open. Click the ‘Add to a room’ button (bottom left) and follow the room assignment procedure as described previously). You can now control your OPTI devices via the Google Home App or via voice commands using an appropriate Google Home compatible device.
-
Page 17: F.a.q
Kino and then re-connect the power. Also, re-start your phone or mobile device. If the Kino still does not respond to the App, reset the Kino projector to factory default settings, delete the Kino from the App and then go through the ‘Add Device’... -
Page 18: Safety Instructions
Important Safety Instructions When using your projection equipment basic safety precautions should be followed: Do not attempt to service the projector unless you are qualified and working under the direction of the manufacturer. Do not operate the appliance with a damaged cord, or if the appliance has been dropped, or damaged, until it has been examined by a qualified engineer. -
Page 19: Additional Accessories
Optikinetics Ltd. Formed in 1970, Optikinetics is the leading innovators of effects lighting and has a plethora of products suitable for any occasion. Each [OPTI] Kino projector comes with one 6” effect wheel. There are over 200 effects wheels to choose from, additional wheels are available to purchase separately. - Page 21 Optikinetics Ltd 38 Cromwell Road Luton Bedfordshire LU3 1DN England +44 (0) 1582 411 413 UKAdmin@optikinetics.co.uk www.optikinetics.co.uk...
