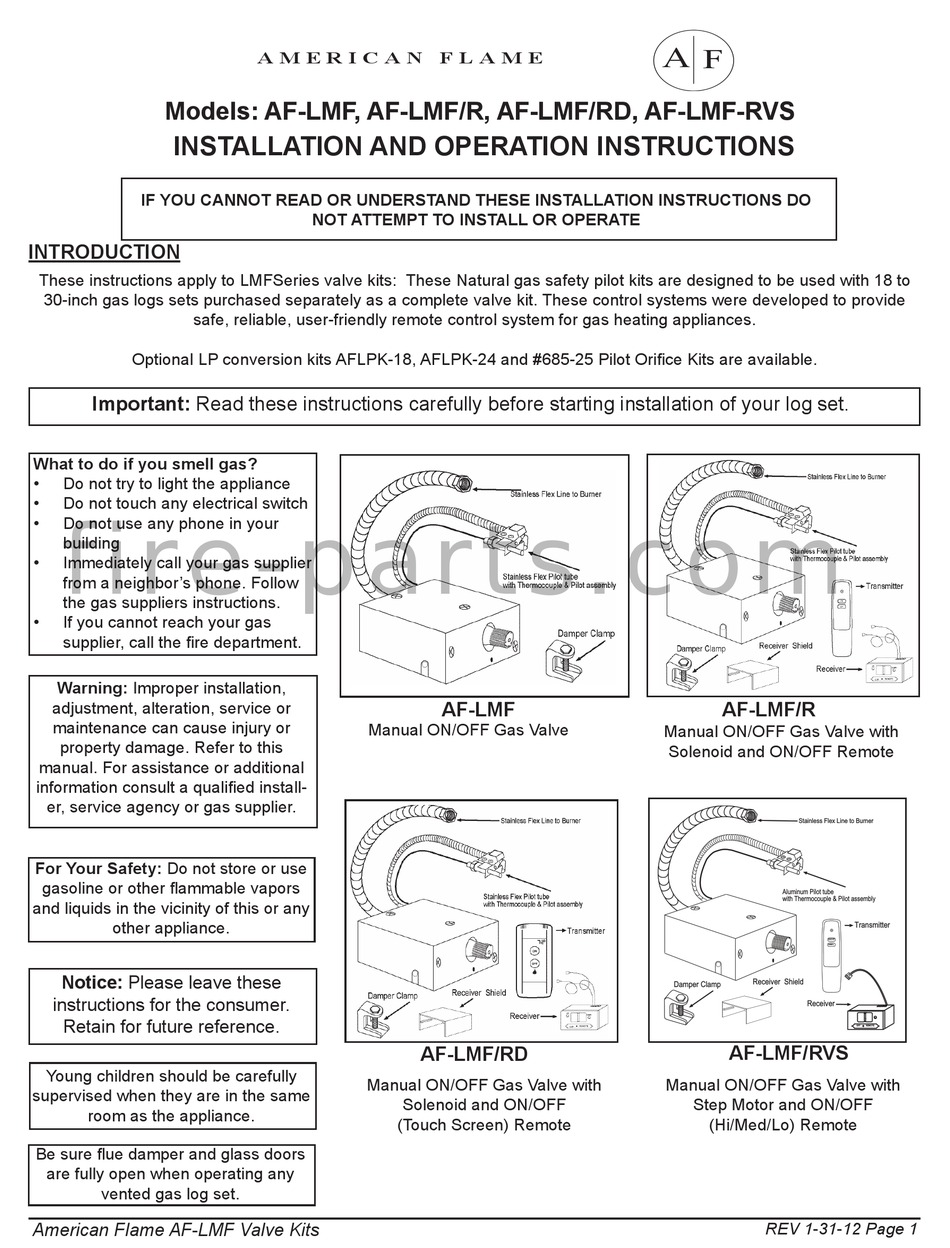

Models: AF-LMF, AF-LMF/R, AF-LMF/RD, AF-LMF-RVS
INSTALLATION AND OPERATION INSTRUCTIONS
IF YOU CANNOT READ OR UNDERSTAND THESE INSTALLATION INSTRUCTIONS DO
INTRODUCTION
These instructions apply to LMFSeries valve kits: These Natural gas safety pilot kits are designed to be used with 18 to
30-inch gas logs sets purchased separately as a complete valve kit. These control systems were developed to provide
safe, reliable, user-friendly remote control system for gas heating appliances.
Optional LP conversion kits AFLPK-18, AFLPK-24 and #685-25 Pilot Orifice Kits are available.
Important: Read these instructions carefully before starting installation of your log set.
What to do if you smell gas?
•
Do not try to light the appliance
•
Do not touch any electrical switch
f i r e - p a r t s . c o m
•
Do not use any phone in your
building
•
Immediately call your gas supplier
from a neighbor's phone. Follow
the gas suppliers instructions.
•
If you cannot reach your gas
supplier, call the fire department.
Warning: Improper installation,
adjustment, alteration, service or
maintenance can cause injury or
property damage. Refer to this
manual. For assistance or additional
information consult a qualified install-
er, service agency or gas supplier.
For Your Safety: Do not store or use
gasoline or other flammable vapors
and liquids in the vicinity of this or any
other appliance.
Notice: Please leave these
instructions for the consumer.
Retain for future reference.
Young children should be carefully
supervised when they are in the same
room as the appliance.
Be sure flue damper and glass doors
are fully open when operating any
vented gas log set.

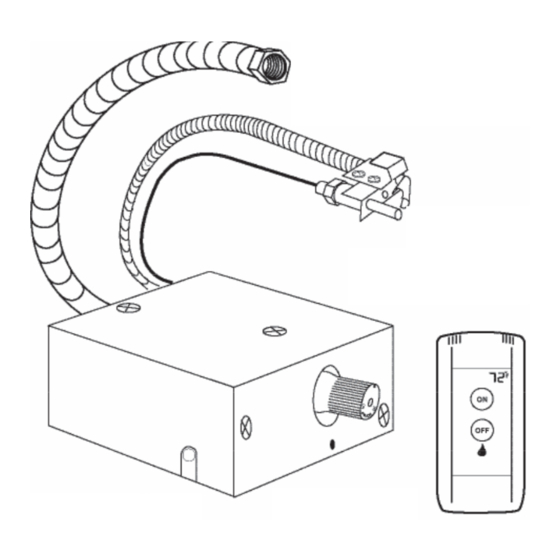

American Flame AF-LMF Valve Kits
A M E R I C A N F L A M E
!
NOT ATTEMPT TO INSTALL OR OPERATE
Manual ON/OFF Gas Valve
AF-LMF/RD
Manual ON/OFF Gas Valve with
Solenoid and ON/OFF
(Touch Screen) Remote
AF-LMF
A F
AF-LMF/R
Manual ON/OFF Gas Valve with
Solenoid and ON/OFF Remote
Stainless Flex Line to Burner
Aluminum Pilot tube
with Thermocouple & Pilot assembly
ON/OFF
H/M/L
Receiver Shield
Damper Clamp
Receiver
AF-LMF/RVS
Manual ON/OFF Gas Valve with
Step Motor and ON/OFF
(Hi/Med/Lo) Remote
REV 1-31-12 Page 1
Transmitter
REMOTE
Advertisement
Related Manuals for american flame AFLPK-18
Summary of Contents for american flame AFLPK-18
- Page 1 30-inch gas logs sets purchased separately as a complete valve kit. These control systems were developed to provide safe, reliable, user-friendly remote control system for gas heating appliances. Optional LP conversion kits AFLPK-18, AFLPK-24 and #685-25 Pilot Orifice Kits are available. Important: Read these instructions carefully before starting installation of your log set.
- Page 2 Install Damper stop (supplied with this valve kit) (This allows damper to remain slightly open to allow the pilot to vent). NOTE: On all PROPANE installations it is recommended that an inlet pressure regulator be used. American Flame AF-LMF Valve Kits REV 1-31-12 Page 2...
- Page 3 However the power unit must drop out before the lighting sequence can begin again. This may take as long as 3 minutes. To relight the pilot, follow the steps in the Pilot Gas and Lighting Procedure section. American Flame AF-LMF Valve Kits REV 1-31-12 Page 3...
- Page 4 LIMITED WARRANTY American Flame warrants the AF-LMF Valve Kit for 12 months from the date of purchase or installation to the original purchaser to be free from defects in materials and workmanship. Damage to the AF-LMF Valve Kit caused by accident, misuse, abuse, or installation er- ror, whether preformed by a contractor, Service Company, or owner, is not covered by this warranty.
