- Page 1 Ultimo Installation Guide Powerslim PS104D PS124D...
-
Page 2: Dear Customer

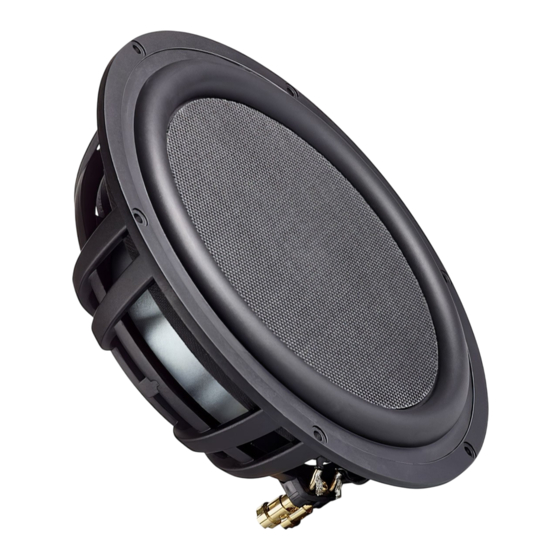

Dear Customer, Thank you for selecting Morel’s Ultimo to satisfy your demanding car audio standards. The award winning Ultimo series was engineered with a combination of tight, controlled musicality and life-like deep bass reproduction, Consistent with Morel’s philosophy, this handcrafted subwoofer will satisfy those who like to “crank it up”. - Page 3 The power input and size of the vehicle play an important role in correctly installing the subwoofer, as does the preferred bass experience. The Ultimo Titanium series subwoofers are designed to work optimally in both ported and sealed enclosures however, each of these enclosure types will produce a slightly different sounding result.
- Page 4 Morel’s recommended enclosure volumes for sealed enclosures MODEL VOLUME NET INTERNAL DIMENSIONS MOUNTING CUT DISPLACEMENT W 343 mm (13.5”) PS104D 14L (0.5 cuft) H 343 mm (13.5”) 231.5 mm (9.1”) 0.02 cuft (0.6L) D 127 mm (5”) W 420 mm (16.5”) 22.6L (0.6 cuft)
- Page 5 Connecting the Ultimo subwoofer Voice coil wired in parallel (1-3 woofers) 2 Ω Load 1 Ω Load 0.7 Ω Load Voice coil wired in series (1-3 woofers) 8 Ω Load 4 Ω Load 2.7 Ω Load Voice coil wired single (1-3 woofers) 2 Ω...
- Page 6 Once the proper enclosure has been constructed, please follow these tips to optimize the performance of your new Ultimo subwoofer. It is always suggested to consult your Authorized Morel Dealer for more specific guidance, if necessary. 1. Set your gain level control to ensure stable amplifier operation without distortion or saturation to prevent subwoofer damage.
-
Page 7: Specifications
268.6 (10.6) 268.6 (10.6) Net Weight gr 5500 5500 5500 *All specifications are measured using 14.4VDC Morel is constantly developing new technology and processes to improve its products. Morel reserves the right to modify specifications or change product design without notice. - Page 8 Wishing you many years of sound enjoyment! Morel, Ness Ziona, 70400 Israel. Morel America, Chandler, AZ, USA Tel: +972-8-9301161 Toll free number:1-877-667-3511 Fax: +972-8-9301312 Fax: 1-718-721-1560 E-mail: info@morelhifi.com E-mail: info@morelamerica.com w w w . m o r e l h i fi . c o m...
