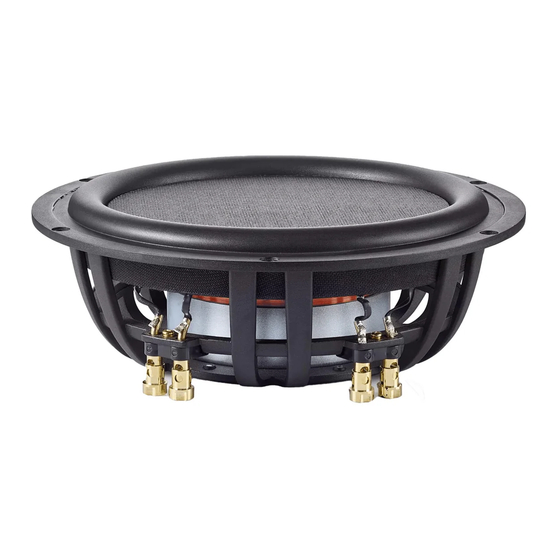

- Page 1 Ultimo Installation Guide PowerSlim PS104D PS124D...
-
Page 2: Dear Customer
Dear Customer, Thank you for selecting the Morel Ultimo PowerSlim to satisfy your bass requirements. Since 1975, Morel has been focused on producing the best audio products in the industry. As a testament to our commitment, the Ultimo PowerSlim subwoofers were bestowed the esteemed EISA “Best In-Car relentless pledge to pioneer audio technology and delivering unparalleled sonic encounters. - Page 3 Dimensions PS104D PS124D 10.35” (263 mm) 12” (305 mm) 9.1” (231.5 mm) 10.6” (268.6 mm) 3.15” (80.1 mm) 3.4” (86 mm) 0.25” (6.3 mm) 0.25” (6.3 mm) 0.6” (15 mm) 0.6” (15 mm) 9.96” (253 mm) 11.5” (292 mm) 0.22” (5.5 mm) 0.22”...
-
Page 4: Enclosure Recommendations
If you are wanting to maximize the overall performance of your subwoofer, Morel highly advocates using a vented enclosure. However, if space is limited in your vehicle thus limiting it to a small enclosure, a sealed box is the desirable option. - Page 5 Recommended Sealed Enclosure MODEL VOLUME NET 0.5 cuft PS104D 42 Hz 12.7 L 356mm 184mm 14” 7.3” 19mm 0.75” MODEL VOLUME NET 0.8 cuft PS124D 36 Hz 22.7 L 216mm 406mm 8.5” 16” 19mm 0.75” Please note that enclosure volumes are provided as net internal volumes. Speaker displacement (see parameters) and any internal bracing must added to the net internal volume.
- Page 6 Mounting Cutout 231.5 (9.1) Net Weight gr 4720 5500 design without notice. Wishing you many years of sound enjoyment! Morel, Ness Ziona, 70400 Israel. Morel America, Chandler, AZ, USA Tel: +972-8-9301161 Toll free number:1-877-667-3511 Fax: +972-8-9301312 Fax: 1-718-721-1560 E-mail: info@morelamerica.com...
