Akai VS-2EGN Service Manual page 158

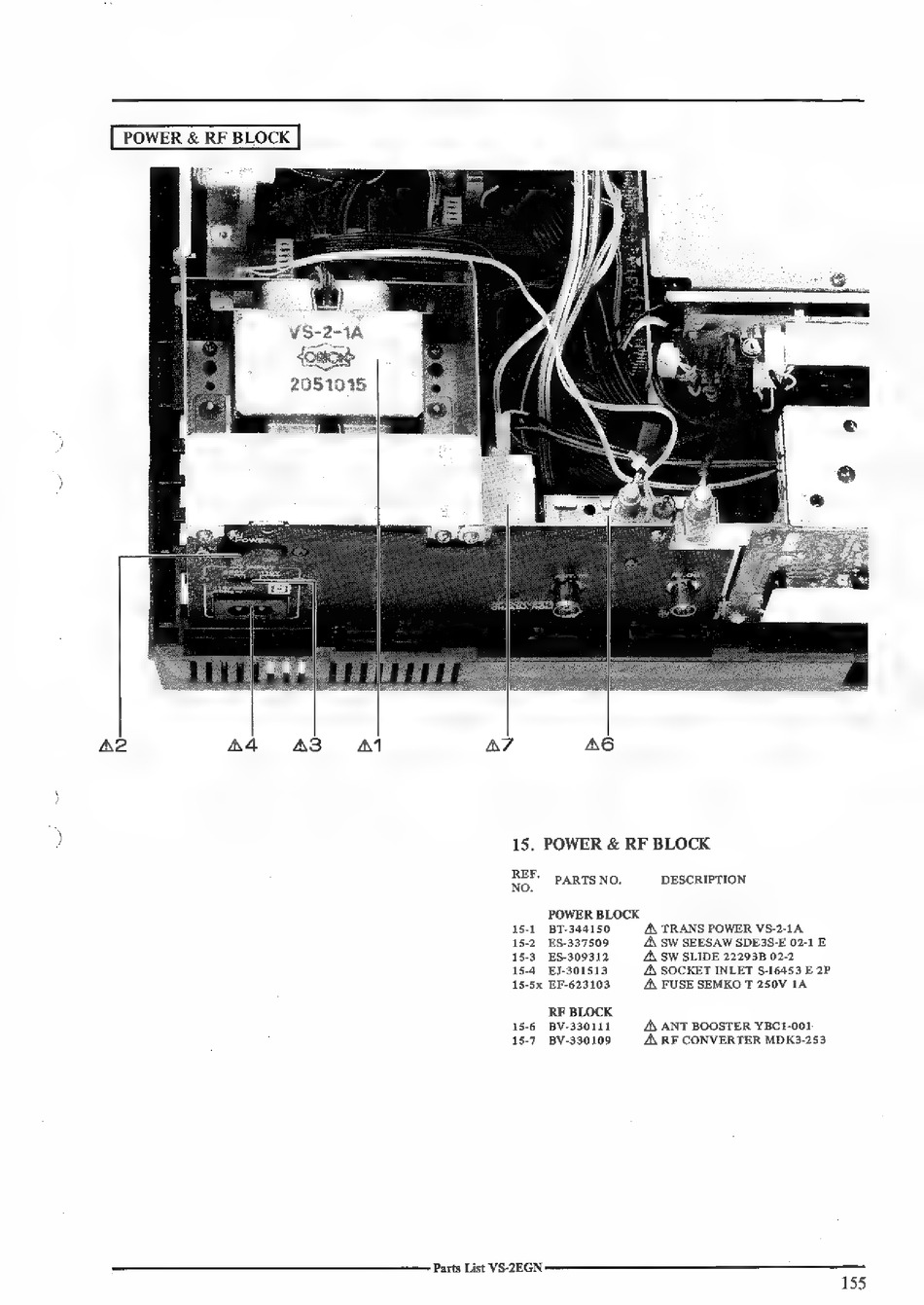

POWER & RF BLOCK
VS-2-14
Jeuc>
2081015
15. POWER & RF BLOCK
REF.
No, PARTSNO. DESCRIPTION
POWER BLOCK
15-1 BT-344150 A\ TRANS POWER VS-2-1A.
15-2 ES-337509 A\ SW SEESAW SDE3S-E 02-1 E
15-3 ES-309312 A\ SW SLIDE 22293B 02-2
15-4 EJ-301513 A\ SOCKET INLET S-16453 E 2P
15-5x EF-623103 A\ FUSE SEMKO T 250V 14,
RF BLOCK
18-6 BV-330111 4S ANT BOOSTER YBC1-001
15-7 BV-330109 AX RF CONVERTER MDK3-253
155
