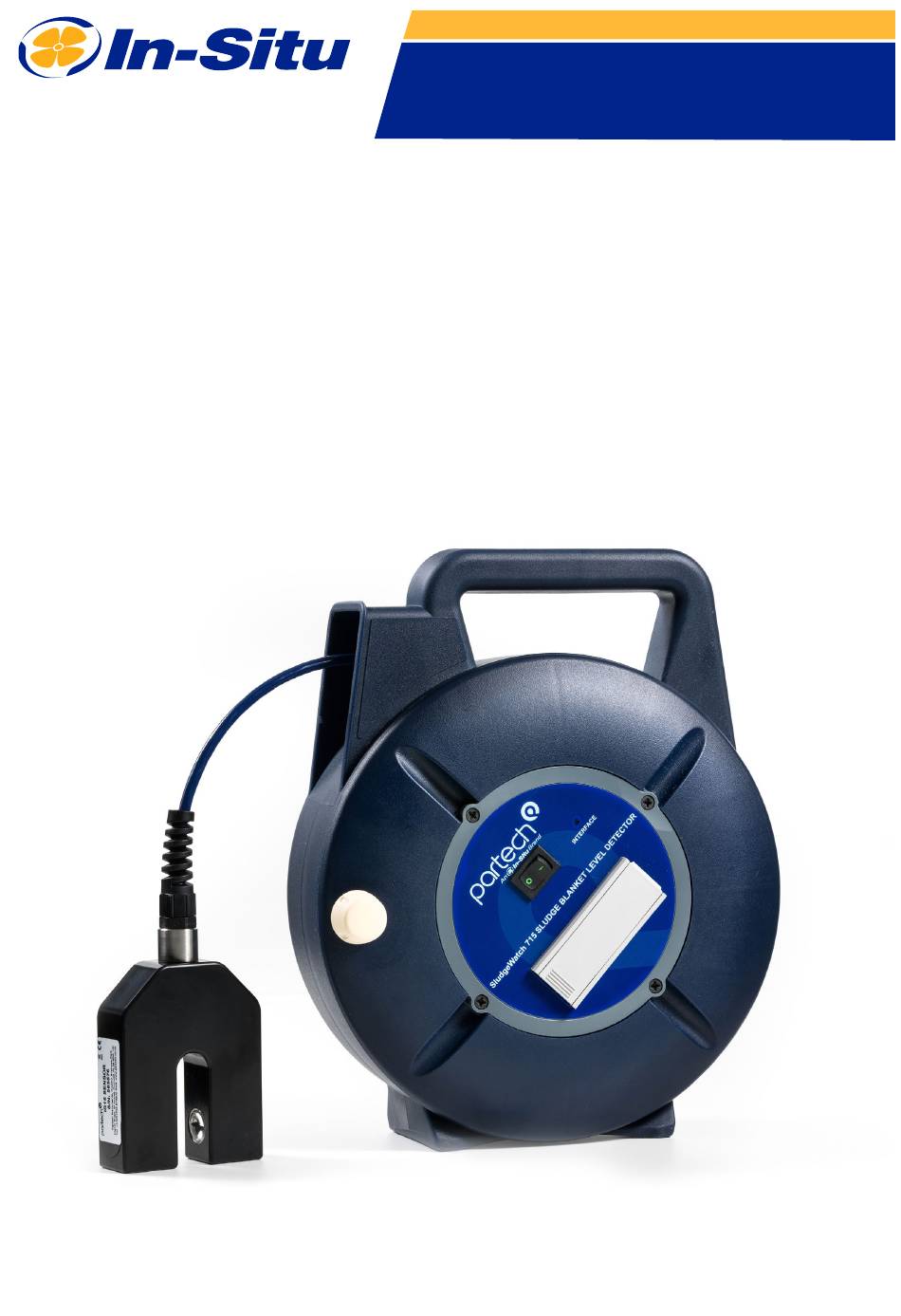

- Page 1 SludgeWatch 715 Portable Sludge Blanket Detector Operator’s Manual 2023-11-01 | 156770...
-
Page 2: Technical Support
Information subject to change without notice. In-Situ, In-Situ logo, “Water Simplified”, VuLink, RDO, RuggedCable, TROLL, BaroTROLL, HydroVu, VuSitu, Baro Merge, and Win-Situ are trademarks or registered trademarks of In-Situ Inc. ©2023. All rights reserved. This product may be covered by patents identified at www.in-situ.com/patents. -
Page 3: Table Of Contents
Contents Technical Support ............................2 Unpacking and Inspecting ..............................2 Document Conventions ..........................2 Introduction ............................... 4 Instrument Description ................................4 Instrument Details ...................................4 Instrument Parts ..................................5 Getting Started ............................9 Box Contents ....................................9 Safety ............................... 11 Intended Use ..................................11 Technical Specifications .......................... 12 General Specifications ................................. -
Page 4: Introduction
Introduction Instrument Description The SludgeWatch 715 Portable Sludge Blanket Detector is designed for spot-checking sludge interface levels in settling tanks. It works by measuring the change in the level of suspended solids as the sensor is lowered into the tank. -
Page 5: Instrument Parts
Instrument Parts 1. Sensor 2. On/off switch 3. Cable reel handle 4. Cable 5. LED light 6. Battery compartment www.in-situ.com... -
Page 6: Getting Started
SludgeWatch 715 Portable Sludge Blanket Detector Box Contents • SludgeWatch 715 Portable Sludge Blanket Detector • 9 V alkaline battery Getting Started Conduct operation test before each use. Insert battery. Move Ensure sensor gap is Check sensor. Block If test is successful, power switch to “on. - Page 7 Clean cable and sensor. Use a damp cloth and Clean sensor with a mild detergent to clean soft cloth and mild the cable. detergent. Rinse with clean water. Never fully immerse the entire SludgeWatch unit in liquid. Learn More View additional specifications, compliance information, and detailed instructions at www.in-situ.com. www.in-situ.com...
-
Page 8: Safety
• Turn off the unit after use. Intended Use The SludgeWatch 715 Portable Sludge Blanket Detector is designed to be safe in these conditions: • Operable temperatures of 0° to 50° C (32° to 122° F) If the equipment is used in a manner not specified by the manufacturer, the protection provided for the equipment may be impaired. -
Page 9: Technical Specifications
Technical Specifications General Specifications Battery Type 9 V DC (alkaline battery PP3) Battery Life >200 hours Operating Temperature Range 0° to 50° C (32° to 122° F) Storage Temperature Range -20° to +60° C (-4° to +140° F) Environmental Rating IP65 Cable Type 4 core, polyurethane coated... -
Page 10: Serial Number & Part Numbers
Sensor Type Part Number SludgeWatch 715 Portable c/w IR100 sensor (1.0 m marking) 107800 SludgeWatch 715 Port able c/w IR40 sensor (1.0 m marking) 230484 SludgeWatch 715 Portable c/w IR15 sensor (1.0 m marking) 107790 SludgeWatch 715 Portable c/w IR8 sensor (1.0 m marking) 141300 SludgeWatch 715 Portable c/w IR100 sensor (3.0 ft marking) -
Page 11: Declarations Of Similarity
Model Variants: One model variant has a cable length of 10m/32.8 ft and one has a cable length of 32 ft with markings every ft. Product Description: The SludgeWatch 715 provides a simple method of spot checking the sludge blanket level in a wide variety of settlement tanks. The sensor is attached to a reel making the unit portable. This is used primarily at wastewater treatment plants. - Page 12 Model Variants: One model variant has a cable length of 10m/32.8 ft and one has a cable length of 32 ft with markings every ft. Product Description: The SludgeWatch 715 provides a simple method of spot checking the sludge blanket level in a wide variety of settlement tanks. The sensor is attached to a reel making the unit portable. This is used primarily at wastewater treatment plants.
- Page 13 Model Variants: One model variant has a cable length of 10m/32.8 ft and one has a cable length of 32 ft with markings every ft. Product Description: The SludgeWatch 715 provides a simple method of spot checking the sludge blanket level in a wide variety of settlement tanks. The sensor is attached to a reel making the unit portable. This is used primarily at wastewater treatment plants.
- Page 14 Model Variants: One model variant has a cable length of 10m/32.8 ft and one has a cable length of 32 ft with markings every ft. Product Description: The SludgeWatch 715 provides a simple method of spot checking the sludge blanket level in a wide variety of settlement tanks. The sensor is attached to a reel making the unit portable. This is used primarily at wastewater treatment plants.
- Page 15 Model Variants: One model variant has a cable length of 10m/32.8 ft and one has a cable length of 32 ft with markings every ft. Product Description: The SludgeWatch 715 provides a simple method of spot checking the sludge blanket level in a wide variety of settlement tanks. The sensor is attached to a reel making the unit portable. This is used primarily at wastewater treatment plants.
- Page 16 Product Description: The SludgeWatch 715 provides a simple method of spot checking the sludge blanket level in a wide variety of settlement tanks. The sensor is attached to a reel making the unit portable. This is used primarily at wastewater treatment plants.
- Page 17 Product Description: The SludgeWatch 715 provides a simple method of spot checking the sludge blanket level in a wide variety of settlement tanks. The sensor is attached to a reel making the unit portable. This is used primarily at wastewater treatment plants.
- Page 18 Model Variants: One model variant has a cable length of 10m/32.8 ft and one has a cable length of 32 ft with markings every ft. Product Description: The SludgeWatch 715 provides a simple method of spot checking the sludge blanket level in a wide variety of settlement tanks. The sensor is attached to a reel making the unit portable. This is used primarily at wastewater treatment plants.
