Summary of Contents for Matrix SATATYA

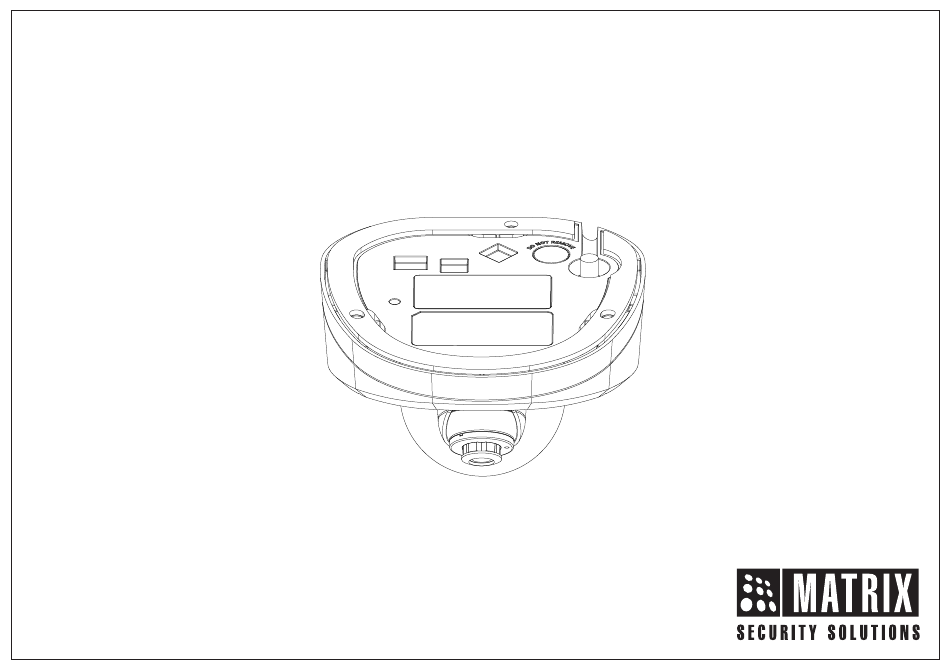

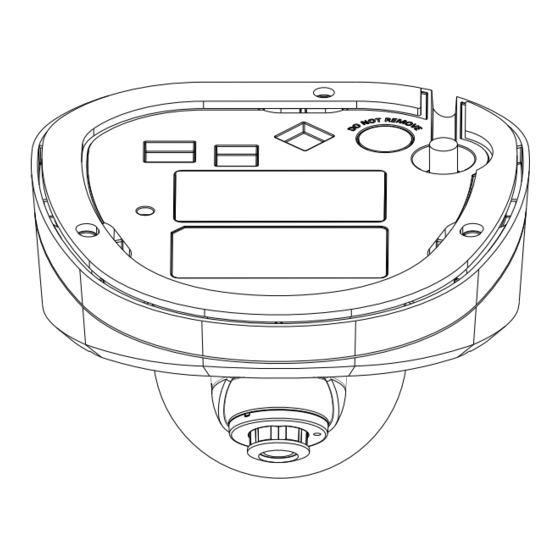

- Page 1 SATATYA Ruggedized IP-Camera The Persistent Vision...
- Page 2 Consignes de sécurité Safety Instructions These instructions are intended to ensure that the user can Ces instructions ont pour but de garantir que l'utilisateur peut Utilisez use the product correctly to avoid danger or property loss. le produit correctement pour éviter tout danger ou perte de propriété. Cautions Précautions •...
-
Page 3: Table Of Contents
Please read this guide first for correct installation and retain it for future reference. The information in this guide is prevailing at the time of publication. However, Matrix Comsec reserves the right to make changes in product design and specifications without prior notice. -
Page 4: What Your Package Contains
3.6mm RIDR20FL36CWP • Necessary Cabling. 6.0mm Fixed RIDR20FL60CWP Camera Variants The SATATYA Ruggedized Camera’s Premium variants are: 5MP Camera Variants • 2MP variants with 2.8mm, 3.6mm and 6.0mm fixed focal length. Focal Length Variants Type of Lens • 5MP variants with 2.8mm, 4.0mm and 6.0mm fixed focal length. -
Page 5: Installation Instructions
Installation Instructions Step 3: Installing Mounting Template • Stick the Mounting Template at the exact location of camera Before you start installation. The location can be a Ceiling or a Wall. Please make sure, • Drill three holes through the markings provided on the Mounting •... -
Page 6: Mounting The Bottom Enclosure
Step 5: Mounting the Bottom Enclosure Figure 3a • To mount the camera, you need to detach the Top Enclosure. • Use the Allen Key to loosen the Retainer screws on three sides of the camera body, as shown in Figure 4a. •... -
Page 7: Adjusting Camera Angle
• Align the Bottom Enclosure with the mounting screw holes drilled Figure 5 earlier. • Now, affix the Bottom Enclosure with the three screws provided Wall/Ceiling along with the camera, see Figure 4b and Figure 5. Figure 4b Bottom Enclosure Step 6: Adjusting Camera Angle Before you affix the camera Top Enclosure, you need to set the desired angle and position of the camera. - Page 8 For Rotation, you can move the camera angle from -175 to +175 PAN / Tilt / Rotation Figure 9 For PAN Movement you can move the camera angle from -30 to +30 . Figure 7 For Tilt Movement, you can move the camera angle from minimum - After you set the PAN, Tilt and Rotation angles, tighten the camera 10 to maximum +90 .
- Page 9 Step 7: Accessing the Reset Switch and SD Card Slot Figure 11b If you forget the IP address or login credentials of camera then the camera can be reset to factory default settings using the reset switch. Ÿ The Reset switch is located as shown in Figure 11a. Press the Reset switch for minimum 5 sec and release the switch to reset the camera to default settings.
-
Page 10: Connecting The Camera
Mobile NVR device or client. Make sure the pins are aligned and secure the connection. You can also connect a 12V DC Adapter (not provided by Matrix) to Enclosure power the camera. Make sure you use a BIS, CE, ROHS and FCC approved Adapter. -
Page 11: Powering The Camera
M12 4-Pin Female Connector You can also connect a 12V DC Adapter (not provided by Matrix) to Connector power the camera. Make sure you use a BIS, CE, ROHS and FCC approved Adapter. If you are connecting devices such as Mic and Speaker to the... -
Page 12: Network Configuration
Network Configuration To view and configure the camera via LAN (Local Area Network), M12 4-PIN you need to connect the network camera in the same subnet with Female your PC. Then install the software to configure the IP address. Connector Steps to get the IP Address •... -
Page 13: Accessing Via Web Browser
Accessing via Web Browser The IP cameras are supported by Microsoft Windows Operating System. In Internet Explorer you can access the camera with Matrix ActiveX plugin. In other browsers you need to install Quicktime or VLC plugin. • Run the Web Browser as Administrator. - Page 14 • The ActiveX control will get installed on your PC. • Now you can Run the plugin. • The Home page of the camera will open and the live view will be displayed. 2 9 - A u g - 2 0 1 9 0 3 : 2 9 : 1 5 P M a a a a a 3 9 3 9 •...
-
Page 15: Technical Specification
Technical Specification Technical Specification Specification Standard Specification Standard Power Supply Storage 2MP: Max:5W Power Consumption SD Card 5MP: Max:6W Software Connectors IVA Events Motion/No Motion Detection, Yes (12V,2A) DC Connector View Tamper Detection, Trip Wire/No Trip Wire Detection, M12 4-Pin Zone/Object Intrusion Female Connector Built-in-Mic... - Page 16 If you are unable to dispose-off the products or unable to locate e-waste recyclers, you may return the products to Matrix Return Material Authorization (RMA) department. MATRIX COMSEC PVT LTD Head Office...
