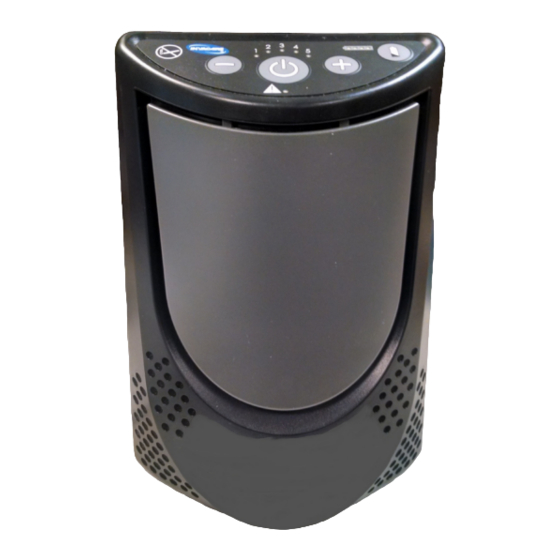

- Page 1 Service Manual ™ Portable Oxygen Concentrator Models XPO100 and XPO100B DEALER: Keep this manual. The procedures in this manual MUST be performed by a qualified technician. For more information regarding Invacare products, parts, and services, please visit www.invacare.com...
- Page 2 MANUFACTURED FOR USE IN CONJUNCTION WITH INVACARE ACCESSORIES. ACCESSORIES DESIGNED BY OTHER MANUFACTURERS HAVE NOT BEEN TESTED BY INVACARE AND ARE NOT RECOMMENDED FOR USE WITH INVACARE PRODUCTS. NOTE: Updated versions of this manual can be found at www.invacare.com. Part No 1150748 ™...
-
Page 3: Table Of Contents
TABLE OF CONTENTS TABLE OF CONTENTS SPECIAL NOTES ................4 TYPICAL PRODUCT PARAMETERS ............ 5 Regulatory Listing ............................6 SECTION 1—IMPORTANT SAFEGUARDS ..........7 Operating Information..........................7 To Reduce The Risk Of Burns, Electrocution, Fire Or Injury To Persons........7 Radio Frequency Interference .........................8 SECTION 2—COMPONENT REPLACEMENT ......... -
Page 4: Special Notes
SPECIAL NOTES SPECIAL NOTES Signal words are used in this manual and apply to hazards or unsafe practices which could result in personal injury or property damage. Refer to the following table for definitions of the signal words. SIGNAL WORD MEANING Danger indicates an imminently hazardous situation DANGER... -
Page 5: Typical Product Parameters
TYPICAL PRODUCT PARAMETERS TYPICAL PRODUCT PARAMETERS Direct Current Type BF equipment Attention - Consider Accompanying Documents DO NOT smoke Class II, Double Insulation Power On/Off DO NOT dispose of in household waste Recycle DO NOT use oil or grease Keep dry IPX1 Protected against dripping water Electrical Requirements:... -
Page 6: Regulatory Listing
TYPICAL PRODUCT PARAMETERS Battery Duration (times are approximate): Setting 1 = 3.5 hours Setting 2 = 2.5 hours Setting 3 = 2.0 hours Setting 4 = 1.5 hours Setting 5 = 1.0 hours Battery Recharge Time: 4 hours NOTE: Recharge time increases if battery is charging while unit is running. -
Page 7: Section 1-Important Safeguards
NEVER drop or insert any object or liquid into any opening. For optimum performance, Invacare recommends that each concentrator be On, in auto- pulse mode, and running for a minimum of 5 minutes. Shorter periods of operation may reduce maximum product life. -
Page 8: Radio Frequency Interference
SECTION 1—IMPORTANT SAFEGUARDS Radio Frequency Interference This equipment has been tested and found to comply with EMC limits specified by IEC/ EN 60601-1-2. These limits are designed to provide a reasonable protection against electromagnetic interference in a typical medical installation. Other devices may experience interference from even the low levels of electromagnetic emissions permitted by the above standards. -
Page 9: Section 2-Component Replacement
5. Replace filter cover and/or filter. 6. Reinstall the filter cover by placing the tabs in the slots and engaging the magnet. NOTE: Use only Invacare gross particle filter. FIGURE 2.1 Replacing the Gross Particle Filter or Filter Cover Accessing XPO... - Page 10 SECTION 2—COMPONENT REPLACEMENT 1. Remove label from the top of the XPO (FIGURE 2.2). NOTE: This label adheres to the front and rear sections of the XPO . This label MUST be removed to separate the two sections. Label FIGURE 2.2 Remove/Install label 2.
-
Page 11: Replacing The Inlet Filter
SECTION 2—COMPONENT REPLACEMENT 4. While holding the unit together rotate the XPO and position it so that the back panel label is facing down. NOTE: The ribbon cable is connected to the front cover and the pc board. Only open the as shown in Details “B”... -
Page 12: Replacing The Battery
SECTION 2—COMPONENT REPLACEMENT 4. Transfer the -inch tubing to the intake of the new filter. NOTE: The flow arrow points away from the intake. 5. Connect the 11½- inch tubing to the outlet of the inlet filter (Detail “A” of FIGURE 2.4). 6. -
Page 13: Re-Assembling The Xpo 2
7. Install replacement label on the top of the XPO so that it adheres to both the front and rear sections. Replacement Parts NOTE: Refer to the parts catalog at www.invacare.com for component part number. ™ Part No 1150748... -
Page 14: Section 3-Checking O 2 Purity
SECTION 3—CHECKING O PURITY SECTION 3—CHECKING O PURITY NOTE: Although the XPO offers pulse dose only, the oxygen purity can be checked with a hand held oxygen analyzer. NOTE: Oxygen purity should be checked every 4,320 hours. 1. Turn the unit On. 2. -
Page 15: Section 4-Error Codes
Once the unit is turned off, the alarm codes displays will be reset. All the alarms should be reset and the unit turned back on to see if the unit can self-correct the problem. If the alarms persist, please contact your nearest Invacare repair center. ALARM... - Page 16 SECTION 4—ERROR CODES Compressor Alarms Code: 6000 4, 5 None Code: 6001 4, 5 Code: 6002 4, 5 Code: 6003 4, 5 (*) Within the System Alarms there are a few alarms that may correct themselves simply by changing the internal battery.
- Page 17 NOTES NOTES ™ Part No 1150748...
- Page 18 NOTES NOTES ™ Part No 1150748...
-
Page 19: Limited Warranty
LIMITED WARRANTY LIMITED WARRANTY For warranty information, please refer to the original owner's manual which came with this product, or contact Invacare for more information. ™ Part No 1150748... - Page 20 All rights reserved. Trademarks are One Invacare Way 570 Matheson Blvd E Unit 8 identified by ™ and ®. All trademarks are Elyria, Ohio USA Mississauga Ontario owned by or licensed to Invacare 44036-2125 L4Z 4G4 Canada Corporation unless otherwise noted. 800-333-6900 800-668-5324 Torx is a registered trademark of Textron, Inc.
