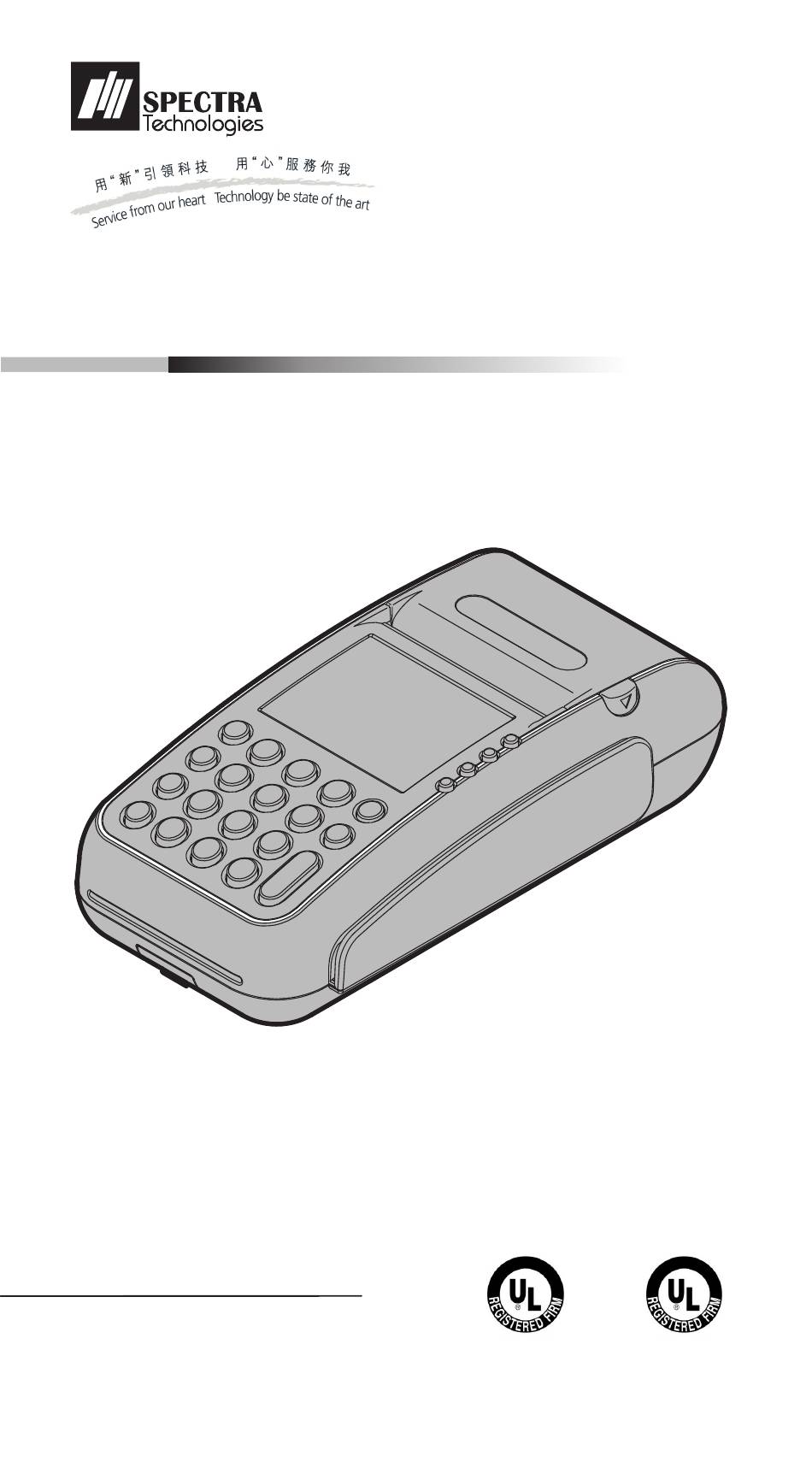

- Page 1 T700 EFT-POS Installation Guide SPECTRA Technologies SPECTRA Technologies Version 1.0 ISO9001 : 2008 ISO14001 : 2004 20002812 QM08 20002812 UM...
-
Page 2: Table Of Contents
T700 Table of Content 1. T700 ....................Layout & Function Descriptions of T700 1.1 Main Unit & Accessories..................1.2 Features at a Glance..................... 1.3 Installation of SIM, SAM & Micro-SD Card............. 1.4 Battery Installation....................1.5 Paper Feeding Procedure..................1.6 Installation of Desktop Stand................ -
Page 3: T700
T700 Layout & Function Descriptions of T700 1.1 Main Unit & Accessories Terminal - for transaction processing, PIN entry, printing, communication and other peripheral interfaces such as ECR integration 7.4V Rechargeable Battery (Optional) Power Adaptor (Optional) - provides 9V DC for terminal operation... -
Page 4: Features At A Glance
T700 Paper Outlet 1.2 Features at a Glance Paper Tray Magnetic card Reader Slot (Optional) LCD Display Keys Paper Tray Open Button IC Card Reader Slot (Optional) Power Port USB Port (Slave) Reset Button USB Port (Host) LAN or RS232... -
Page 5: Installation Of Sim, Sam & Micro-Sd Card
T700 1.3 Installation of SIM, SAM & Micro-SD Card SAM Card (Optional) SAM Card/ SIM Card (Optional) Micro-SD Card (Optional) SIM Card SAM Card and Micro-SD Card - for version equipped with Micro-SD card reader only 1.4 Battery Installation for version equipped with battery pack only... -
Page 6: Paper Feeding Procedure
T700 1.5 Paper Feeding Procedure Press the grey button to open the paper cover Place the paper roll into the tray as shown Close the printer cover 40mm Max. Paper roll size 57mm (2 ") Installation Guide... -
Page 7: Installation Of Desktop Stand
T700 1.6 Installation of Desktop Stand for version equipped with desktop stand only RS232 communication line LAN or RS232 communication line Installation Guide... -
Page 8: How To Operate
T700 How to Operate 2.1 Turn On/ Off Procedure If the terminal is equipped with charging battery during first time use, please connect the power adaptor and charge the battery for 3 hours. On - Power is on whenever plugged. If the... -
Page 9: Rechargeable Battery Safety Guideline
T700 Rechargeable Battery Safety Guideline Prohibition: Improper handling of the Li-Polymer battery is hazardous, the following forbidden activities must be avoided: DO NOT use NON-SPECTRA provided battery in SPECTRA POS Terminal DO NOT use a charger that is not specifically... -
Page 10: Terminal And Battery Storage Guideline
T700 Terminal and Battery Storage Guideline If the battery will not be used for a long period, please charge it to only 50% of the battery capacity (battery indicator displays half full, 2 units); remove it from the terminal and store in a cool place. -
Page 11: Safety & Maintenance
To avoid electric shock, do not disassemble the terminal by yourself. Send it to agency for repairing if necessary Do not use T700 and its accessories during explosive gas leakage For modem version, do not install telephone line during lighting... -
Page 12: Location For Installation
~ Sunlight or high thermal radiation area ~ Near demagnetizing system and magnetic security system 4.4 Maintenance T700 has been designed to provide stable service for users with less maintenance. In order to ensure best performance, we suggested the followings. -
Page 13: Trouble Shooting
Put back paper and roller into paper tray Close the printer cover Send for repairing If it is necessary to send back T700 for repairing, please contact agency, pack the terminal properly (use original packing material if possible) to avoid damage during transportation 4.5 Trouble Shooting... - Page 14 T700 Malfunction of printer 1, If the terminal is powered by battery, check the battery level and charge the battery, replace new battery or else power the terminal by adaptor. 2, If it is powered by power adaptor, check whether the connection of power cord or...
-
Page 15: Other Information
T700 Other Information Dimensions & Weight Size: 171 (L) x 84 (W) x 51 (H) mm (Without magnetic stripe card reader) 171 (L) x 88 (W) x 51 (H) mm (With magnetic stripe card reader) Weight: 450g (Terminal with battery) - Page 16 The SAR limit of USA (FCC) is 1.6W/kg averaged over one gram of tissue. Product, model number: T700 (FCC ID: VWZT700) has also been tested against this SAR limit. The highest SAR value reported under this standard during product certification for use when properly worn on the body is 0.939W/kg.
