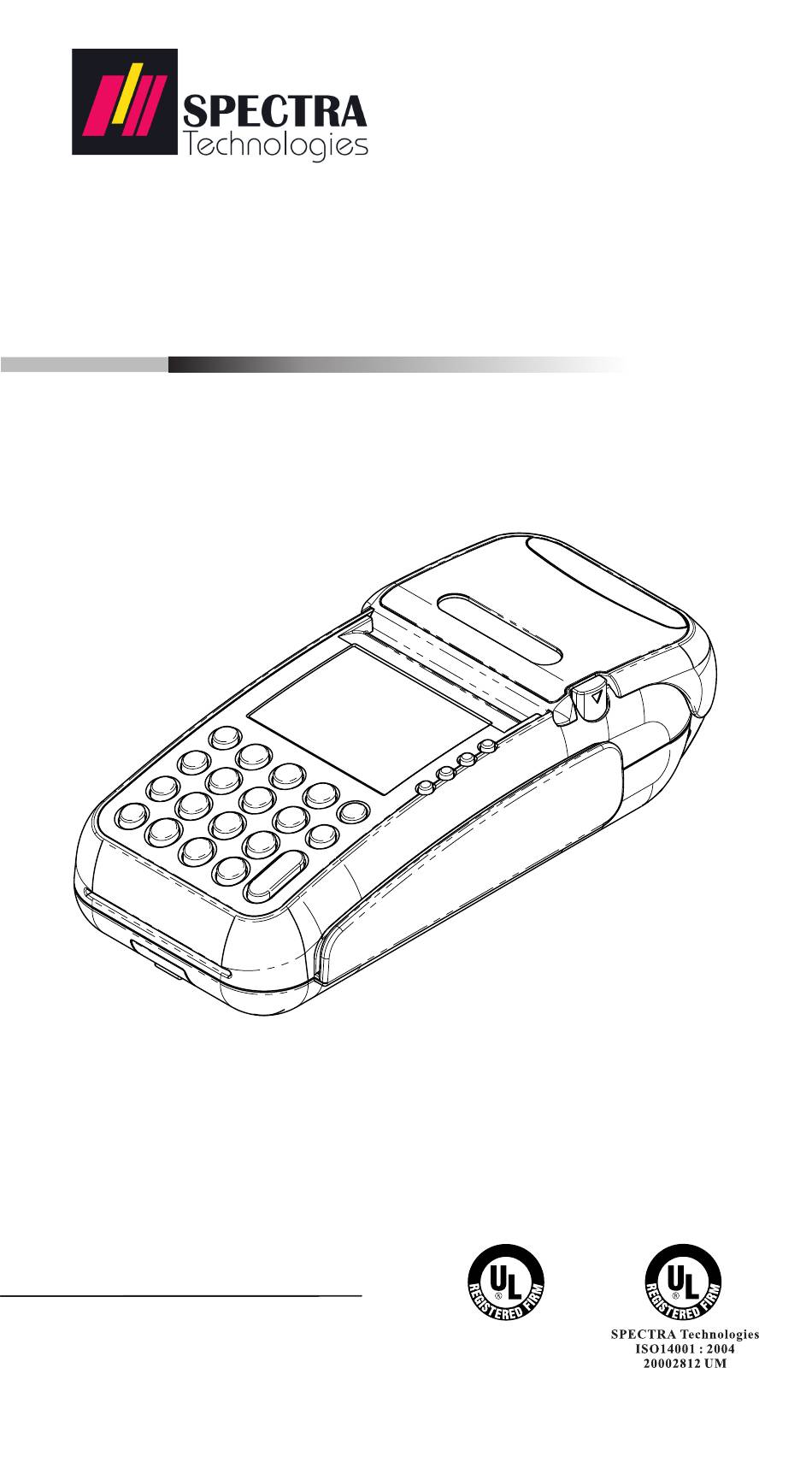

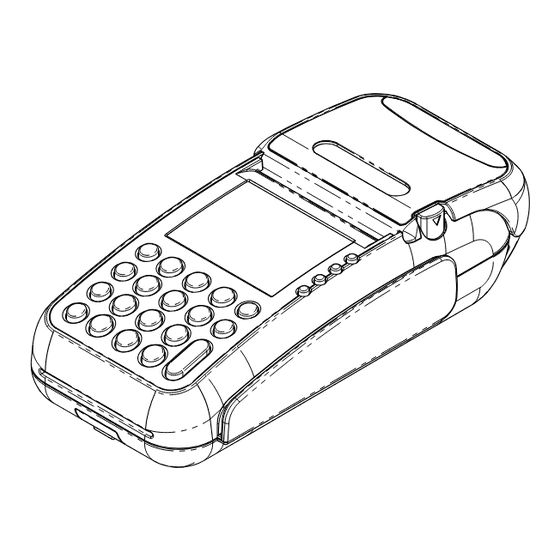

- Page 1 T800 EFT-POS Installation Guide SPECTRA Technologies ISO9001 : 2008 Version 1.0 20002812 QM08...
-
Page 2: Table Of Contents
T800 Table of Content 1. Layout & Function Descriptions of T800........1.1 Main Unit & Accessories.................... 1.2 Features at a Glance....................1.3 Installation of SIM, SAM & Micro-SD Card..............1.4 Battery Installation..................... 1.5 Paper Feeding Procedure..................1.6 Installation of Desktop Stand.................. -
Page 3: Layout & Function Descriptions Of T800
T800 Layout & Function Descriptions of T800 1.1 Main Unit & Accessories Terminal - for transaction processing, PIN entry, printing, communication and other peripheral interfaces such as ECR integration 7.4V Rechargeable Battery (Optional) Power Adaptor (Optional) - provides 9V DC for terminal operation... -
Page 4: Features At A Glance
T800 1.2 Features at a Glance Contactless Card Reader LED Indicators (Optional) Paper Outlet LCD Display Keys Paper Tray Paper Tray Open Button Magnetic card Reader Slot IC Card Reader Slot Power Port USB Port (Slave) Reset Button USB Port (Host) -
Page 5: Installation Of Sim, Sam & Micro-Sd Card
T800 1.3 Installation of SIM, SAM & Micro-SD Card SAM Card Micro-SD Card SIM Card SAM Card and Micro-SD Card - for version equipped with Micro-SD card reader only 1.4 Battery Installation for version equipped with battery pack only Installation Guide... -
Page 6: Paper Feeding Procedure
T800 1.5 Paper Feeding Procedure Press the button to open the paper cover Place the paper roll into the tray as shown Close the paper cover 40mm Max. Paper roll size 57mm (2 ") Installation Guide... -
Page 7: Installation Of Desktop Stand
T800 1.6 Installation of Desktop Stand for version equipped with desktop stand only RS232 communication line LAN or RS232 communication line or Modem Installation Guide... -
Page 8: How To Operate
T800 How to Operate 2.1 Turn On/ Off Procedure If the terminal is equipped with charging battery during first time use, please connect the power adaptor and charge the battery for 3 hours. On - Power is on whenever plugged. If the... -
Page 9: Rechargeable Battery Safety Guideline
T800 Rechargeable Battery Safety Guideline Prohibition: Improper handling of the Li-Polymer battery is hazardous, the following forbidden activities must be avoided: DO NOT use NON-SPECTRA provided battery in SPECTRA POS Terminal DO NOT use a charger that is not specifically... -
Page 10: Terminal And Battery Storage Guideline
T800 Terminal and Battery Storage Guideline If the battery will not be used for a long period, please charge it to only 50% of the battery capacity (battery indicator displays half full, 2 units); remove it from the terminal and store in a cool place. -
Page 11: Safety & Maintenance
T800 Safety & Maintenance 4.1 Basic Safety Practice While using terminal and its accessories, please follow the safety instruction to avoid fire, electric shock and personal injury. Read this instruction in detail Disconnect the power and accessories before cleaning, use dry flannelette and soft brush... -
Page 12: Location For Installation
T800 4.3 Location for Installation Should be safe and convenient for operators and users Should be placed on stable working platform during desktop operation for ease of power and accessories connection Good ventilation and should have 10cm space around the terminal... -
Page 13: Trouble Shooting
T800 Printer Cleaning Disconnect power cable from the terminal Open paper cover, take out paper and roller Remove dust and paper scrap inside paper tray . Use low pressure blower to clean the paper tray if possible. Do not touch the thermal printer head and... -
Page 14: Caution
T800 Malfunction on printer 1, If the terminal is powered by battery, check the battery level and charge the battery, replace new battery or else power the terminal by adaptor. 2, If it is powered by power adaptor, check whether the connection of power cord or... -
Page 15: Other Information
RF Exposure Information and Statement The SAR limit of USA (FCC) is 1.6W/kg averaged over one gram of tissue. Device types: T800 (FCC ID: VWZT800W) has also been tested against this SAR limit. The highest SAR value reported under this standard during product certification for use when properly worn on the body is 1.07W/kg. - Page 16 requirements may not comply with RF exposure requirements and should be avoide...
