Summary of Contents for Diamond PIZZA/D38

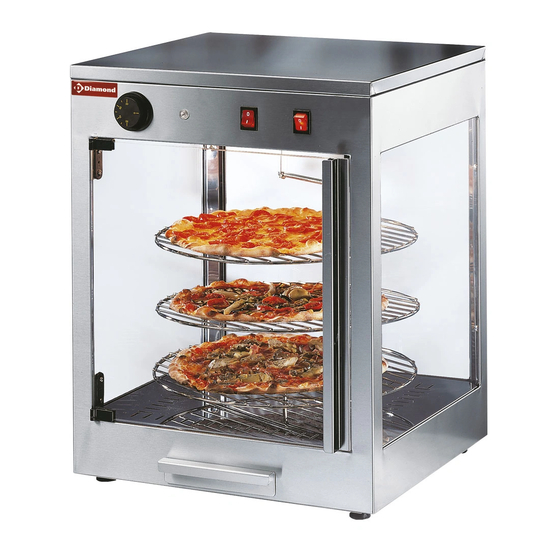

- Page 1 02/2012 Mod: PIZZA/D38 Production code: 30410002...
- Page 2 INSTRUCTIONS FOR USE AND MAINTENANCE...
- Page 3 INTRODUCTION - This manual has been drawn up in order to supply the client with full information on the machine and on the regulations that apply to it, as well as to provide instructions for its use and maintenance for best results and long life.
- Page 4 CHAP. 7 - MAINTENANCE AND PRACTICAL ADVICE page 11 - FEET - POWER SUPPLY CABLE CHAP. 8 - SCRAPPING page 11 8.1 - OUT OF SERVICE 8.2 - WEEE Waste of Electric and Electronic Equipment...
-
Page 5: General Precautions
CHAP.1 - INFORMATION ABOUT THE MACHINE 1.1 - GENERAL PRECAUTIONS The DISPLAY CASE should only be used by trained personnel who should be fully familiar with the safety regulations set forth in this manual. In case of turnover in personnel, the new user should be trained before using the machine. -
Page 6: Description Of The Machine
have to do with the danger of burns during operations of loading and unloading the products and while cleaning the machine. 1.3 - DESCRIPTION OF THE MACHINE 1.3.1 - general description The DISPLAY CASE has been designed and produced by our company for the precise purpose of ensuring: ... - Page 7 CHAP.2 - TECHNICAL DATA 2.1 - DIMENSIONS, WEIGHT, CHARACTERISTICS, ... Fig.n°2 - Dimensions and measurements of the DISPLAY CASE Display case ø 38 Display case ø 42 Power source 230V 50/60 Hz F + N Power watt °C 0÷90 0÷90 Temperature 390x360 430x400...
-
Page 8: Disposal Of Packing Materials
CHAP.3 - RECEPTION OF THE MACHINE 3.1 - SHIPMENT (see Figure below) macchine partono nosrti magazzini dopo essere state accuratamente imballate. L’imballo è costituito da: a sturdy cardboard carton; the machine; the manual. Fig.n°3 - Description of packing 3.2 - INSPECTION OF PACKING ON ARRIVAL Upon receipt of the package containing the machine, inspect the packing thoroughly to ascertain that it has not undergone any serious damage in... -
Page 9: Placement Of The Machine
If the machine is installed in countries where particular regulations are in effect, dispose of the packing materials as prescribed by those regulations. CHAP.4 - INSTALLATION 4.1 - PLACEMENT OF THE MACHINE The surface on which the machine stands should have a sufficient area to contain the dimensions of the machine indicated in the Table on page 07, and should be level, dry, smooth, sturdy, stable and at a height of 80 cm from the ground. -
Page 10: Wiring Diagram
4.3 - WIRING DIAGRAM Single-phase 230V 50Hz power supply. Legend: R = resistor L1 = resistor indicator light L2 = internal lights M = shelf motor = luminous bipolar switch T = thermostat Fig.n°5 - Wiring diagram for the DISPLAY CASE CHAP.5 - USE OF THE MACHINE 5.1 - CONTROLS The controls are arranged as shown in the Figure below:... -
Page 11: General Information
5.2 - FIRST USE OF MACHINE The machine is delivered with a scratch-resistant plastic film covering the outer surfaces, that should be carefully removed before using the machine, along with any residues of adhesive. To do this, do not use any sharp instruments, abrasive or inflammable substances. -
Page 12: Power Cable
CHAP.7 - MAINTENANCE AND PRACTICAL ADVICE CAUTION! Before performing any maintenance unplug the machine from the power supply. 7.1 - FEET With time the feet could deteriorate and lose their elasticity, thus affecting the stability of the machine. Trey should therefore be replaced. 7.2 - POWER CABLE Check the state of wear of the cable from time to time and, if necessary, call the “Assistence Service”...
