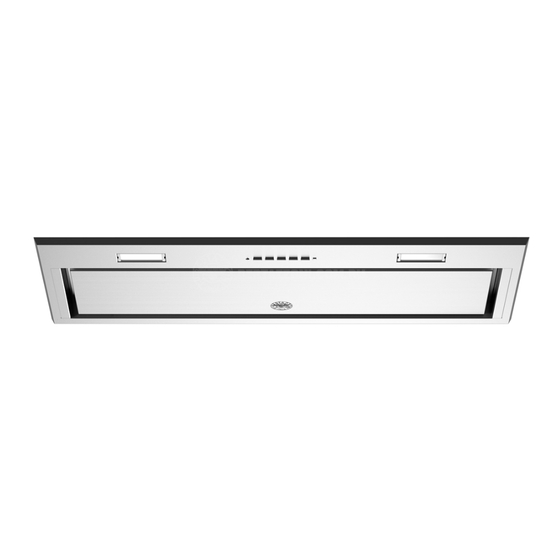

- Page 1 COOKER HOOD - Instructions Manual KIN70MOD1XB KIN52MOD1XC KIN86MOD1XB...
-
Page 2: Table Of Contents
INDEX SAFETY INFORMATION................................. 3 CHARACTERISTICS ................................6 INSTALLATION..................................7 USE ......................................9 CARE AND CLEANING................................. 10... -
Page 3: Safety Information
SAFETY INFORMATION For your safety and correct operation of the appliance, read this manual carefully before installation and use. Always keep these instructions with the appliance even if you move or sell it. Users must fully know the operation and safety features of the appliance. The wire connection has to be done by specialized technician. - Page 4 If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appliances), a sufficient degree of aeration must be guaranteed in the room in order to prevent the backflow of exhaust gas. When the cooker hood is used in conjunction with appliances supplied with energy other than electric, the negative pressure in the room must not exceed 0,04 mbar to prevent fumes being drawn back into the room by the cooker hood.
- Page 5 The appliance is not to be used by persons (including children) with re- duced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction. Accessible parts may become hot when used with cooking appliances. ...
-
Page 6: Characteristics
CHARACTERISTICS Dimensions 500 mm 650 mm Components Ref. Q.ty Product Components Hood Body, complete with :Controls, Light, Blower, Filters Frame Directioned grid Reducer Flange ø 150-120 mm Ref. Q.ty Installation Components Screws Screws 2,9 x 9,5 Screws 2,9 x 6,5 Q.ty Documentation Instruction Manual... -
Page 7: Installation
INSTALLATION Fitting the Hood canopy BEFORE FITTING THE HOOD TO THE WALL UNIT, PROCEED AS FOLLOWS: • Disconnect the wires to the Commands at the connectors. • Disconnect the wires to the Light at the con- nectors. • The Hood can be installed directly on the underside of the wall unit. - Page 8 Connections DUCTED VERSION AIR EXHAUST SYSTEM When installing the ducted version, connect the hood to the chimney using either a flexible or rigid pipe ø 150 or 120 mm, the choice of which is left to the installer. • To install a ø 120 mm air exhaust connection, insert the reducer flange 9 on the hood body outlet.
-
Page 9: Use
Control panel Button Function Turns the lights on/off at maximum strength. Fixed Turns the motor on/off at speed one. Fixed Turns the Motor on at speed two. Press and hold the button for approximately 3 seconds, with all the loads turned off (Motor and Lights), to turn the Activated Charcoal Filter alarm on. -
Page 10: Care And Cleaning
CARE AND CLEANING REMOTE CONTROL (OPTIONAL) This appliance can be commanded using a remote control, powered by a CR2032 type 3 V battery (not supplied). • Do not place the remote control near heat sources. • Do not discard the batteries with normal waste, they must be put into the specific containers. - Page 11 Activated Charcoal Filter (Recirculation Version) This cannot be washed or regenerated, and must be changed when led S1 starts to flash, or at least once every 4 months. The Alarm signal, if it has been activated, only appears when the Suction motor is turned on.
- Page 12 991.0585.349_ver2 - 201218 - D00005838_01...
