90
Operating Guide
6.3

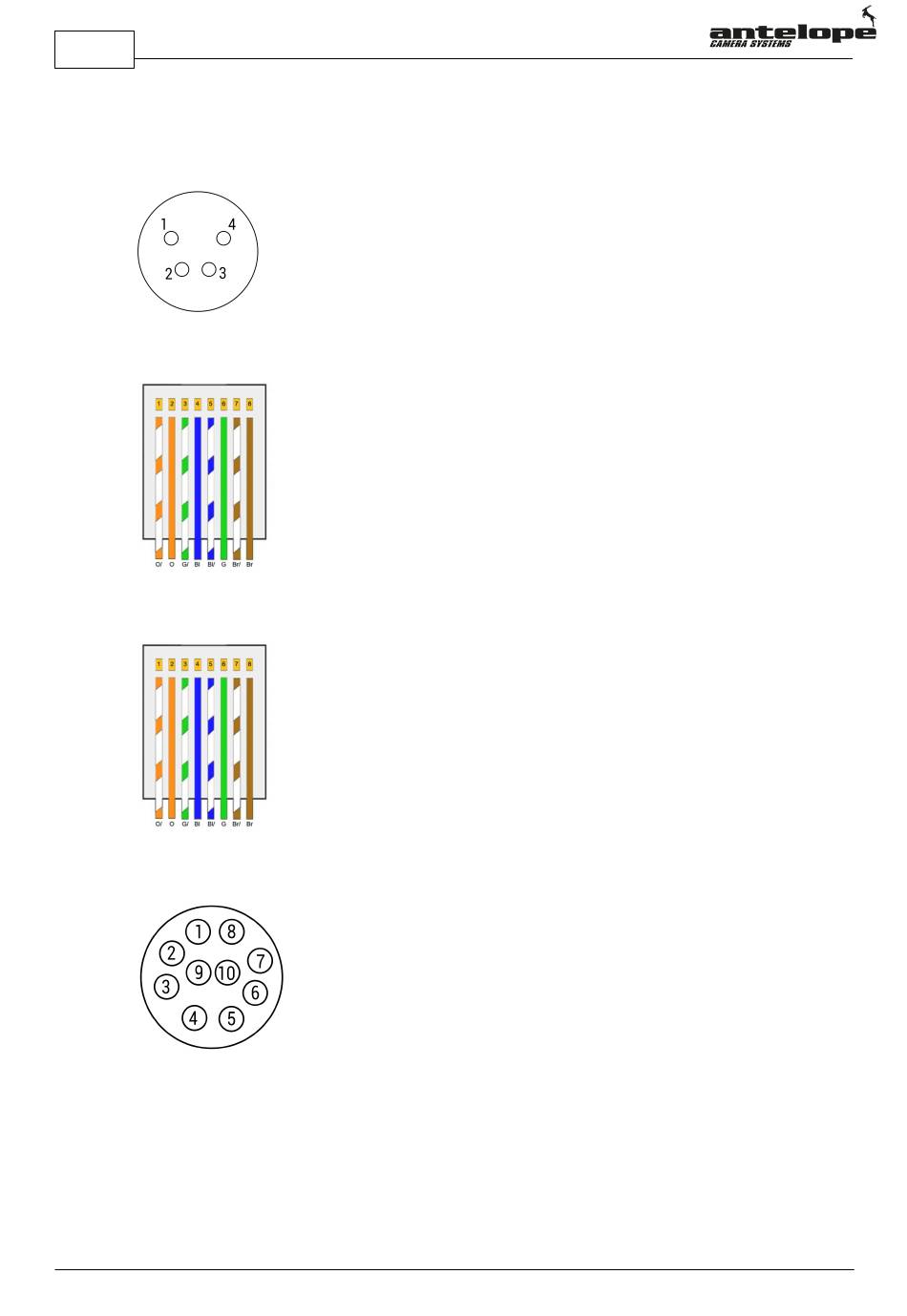

OCP Connectors

6.3.1

Power Connector 4 Pin XLR Male

6.3.2
LAN Remote Control Port – CAT5 - RJ 455
6.3.3
Data RS 422 – CAT5 RJ45
6.3.4
Data RS422 – Hirose 10 Pin m
Antelope Camera Systems
Pin 1: GND
Pin 2:
Pin 3:
Pin 4: +12V DC
Pin 1
TX(+)
white/orange
Pin 2
TX(-)
orange solid
Pin 3
RX(+) white/green stripe
Pin 4
NC
blue solid
Pin 5
NC
white/blue stripe
Pin 6
RX(-)
green solid
Pin 7
NC
white/brown stripe
Pin 8
NC
brown solid
Pin 1
TX(+)
white/orange
Pin 2
orange solid
NC
Pin 3
NC
white/green stripe
Pin 4
TX(-)
blue solid
Pin 5
RX(+)
white/blue stripe
Pin 6
NC
green solid
Pin 7
NC
white/brown stripe
Pin 8
RX(-)
brown solid
Pin 1: RX (+) or A
Pin 2: RX (-) or B
Pin 3: TX (+) or Y
Pin 4: TX (-) or Z
Pin 5: NC
Pin 6: NC
Pin 7: NC
Pin 8: NC
Pin 9: NC
Pin10: NC
