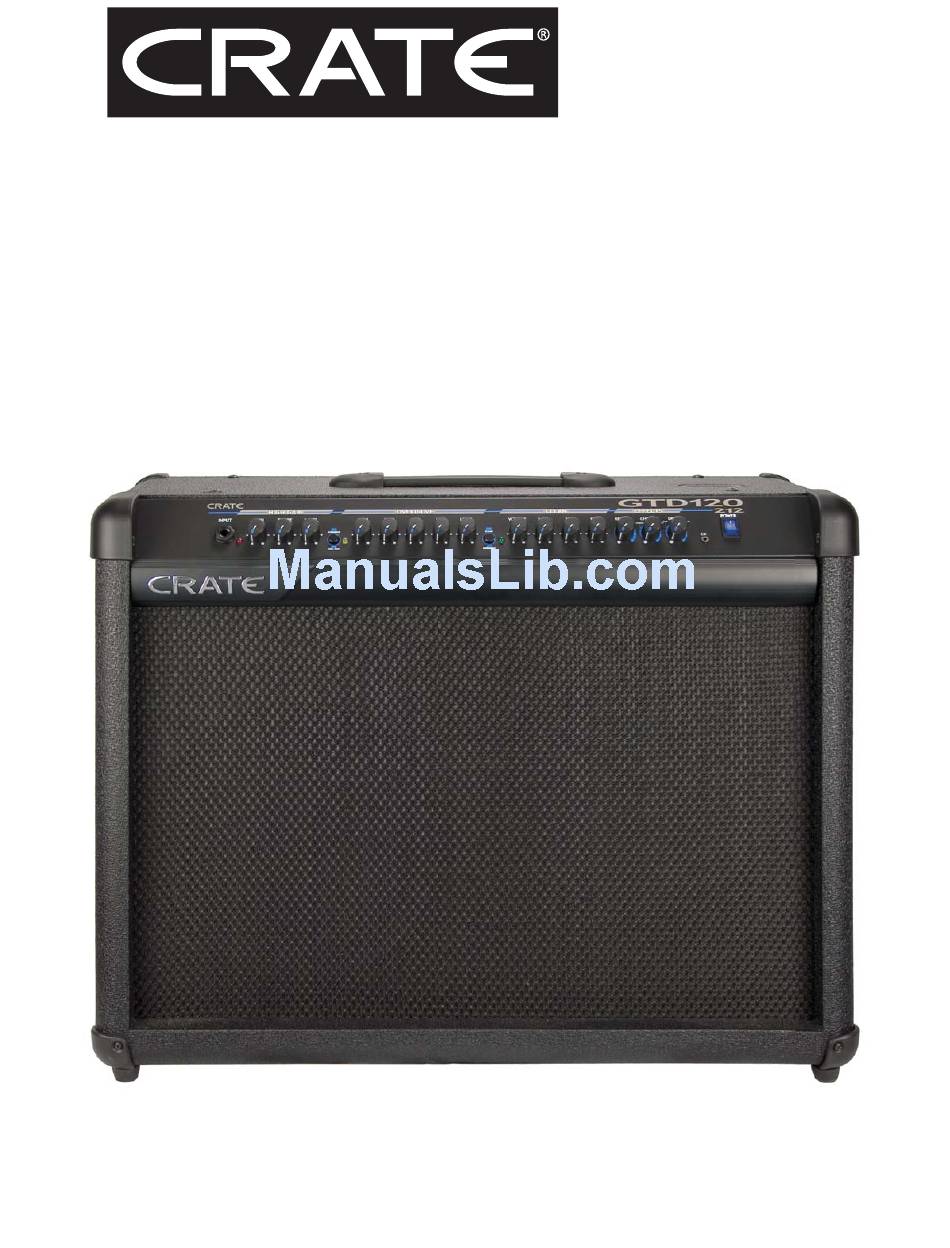

- Page 1 GTD120 Three-Channel Guitar Amplifier with DSP and Channel Tracking Owner’s Manual...
-
Page 2: Table Of Contents
GTD120/212 Guitar Amplifier w/DSP and Channel Tracking TABLE OF CONTENTS Introduction ... 3 Channel Tracking ... 4 The Front Panel ... 5 The Rear Panel ... 6 The DSP Section ... 7 Using the Footswitch with the DSP ... 8 Suggested Settings ... -
Page 3: Introduction
GTD120/212 Guitar Amplifier w/DSP and Channel Tracking Introduction Congratulations! You are now the proud owner of the Crate GTD120/212 three-channel guitar amplifier with advanced digital signal processing (DSP) and Channel Tracking. This rugged amplifier combines outstanding features with serious clean and distorted sounds. Digital Reverb, Chorus, and Delay provide you with a wide variety of sounds. -
Page 4: Channel Tracking
GTD120/212 Guitar Amplifier w/DSP and Channel Tracking Channel Tracking Your Crate GTD120/212 gives you the power of Channel Tracking. Once you select a DSP setting for each channel, Channel Tracking stores the settings to memory whenever you change channels. When you go back to that channel, Channel Tracking recalls those DSP set- tings automatically, without changing the DSP controls! For example: •... -
Page 5: The Front Panel
GTD120/212 Guitar Amplifier w/DSP and Channel Tracking The Front Panel 1. INPUT: Use this jack to connect your guitar to the amplifier by means of a shield- ed instrument cable. 2. HIGH GAIN LED: This LED illuminates when the High Gain channel is selected. 3. -
Page 6: The Rear Panel
GTD120/212 Guitar Amplifier w/DSP and Channel Tracking The Rear Panel 24. FUSE: The fuse protects the amplifier from damage caused by a faulty AC power source or other problems. If the fuse opens, replace it with the same size and type. If fuses continue to fail, check the AC source. -
Page 7: The Dsp Section
GTD120/212 Guitar Amplifier w/DSP and Channel Tracking The DSP Section Normal Signal Path Chorus > Delay > Reverb Echo/Eff Signal Path Delay > Chorus > Reverb 19. REVERB: Use this control to adjust the amount of digital reverb effect. In its fully counterclockwise position, the signal will be “dry”... -
Page 8: Using The Footswitch With The Dsp
GTD120/212 Guitar Amplifier w/DSP and Channel Tracking Using the Footswitch with the DSP The Crate three-button footswitch supplied with the GTD120/212 allows access to an addi- tional DSP preset for each channel of the amplifier. When the footswitch is connected to the amplifier as shown below, the “original”... -
Page 9: Suggested Settings
GTD120/212 Guitar Amplifier w/DSP and Channel Tracking Suggested Settings Sweet ‘n Clean: Just a ‘Lil Nasty: Politely Gritty: Down ‘n Dirty: Mean & Obscene: DESIRED DESIRED DESIRED DESIRED DESIRED... -
Page 10: System Block Diagram
GTD120/212 Guitar Amplifier w/DSP and Channel Tracking System Block Diagram T U N E R B U F F E R N P U T O V E R D R V E L O W G A N H G H G A N G A N P H A S E R F L A N G E R... - Page 11 GTD120/212 Guitar Amplifier w/DSP and Channel Tracking This equipment has been tested and found to comply with the limits for a Class B digital device, pur- suant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
-
Page 12: Technical Specifications
GTD120/212 Guitar Amplifier w/DSP and Channel Tracking GTD120/212 TECHNICAL SPECIFICATIONS: Output Power Rating Gain High Gain Channel Overdrive Ch Clean Ch CD Input Maximum Input Signal Accepted Input Impedance High Gain Channel Shape Control Overdrive Channel Clean Channel Speaker Size and Rating Power Requirements Size (H x W x D) Weight...
