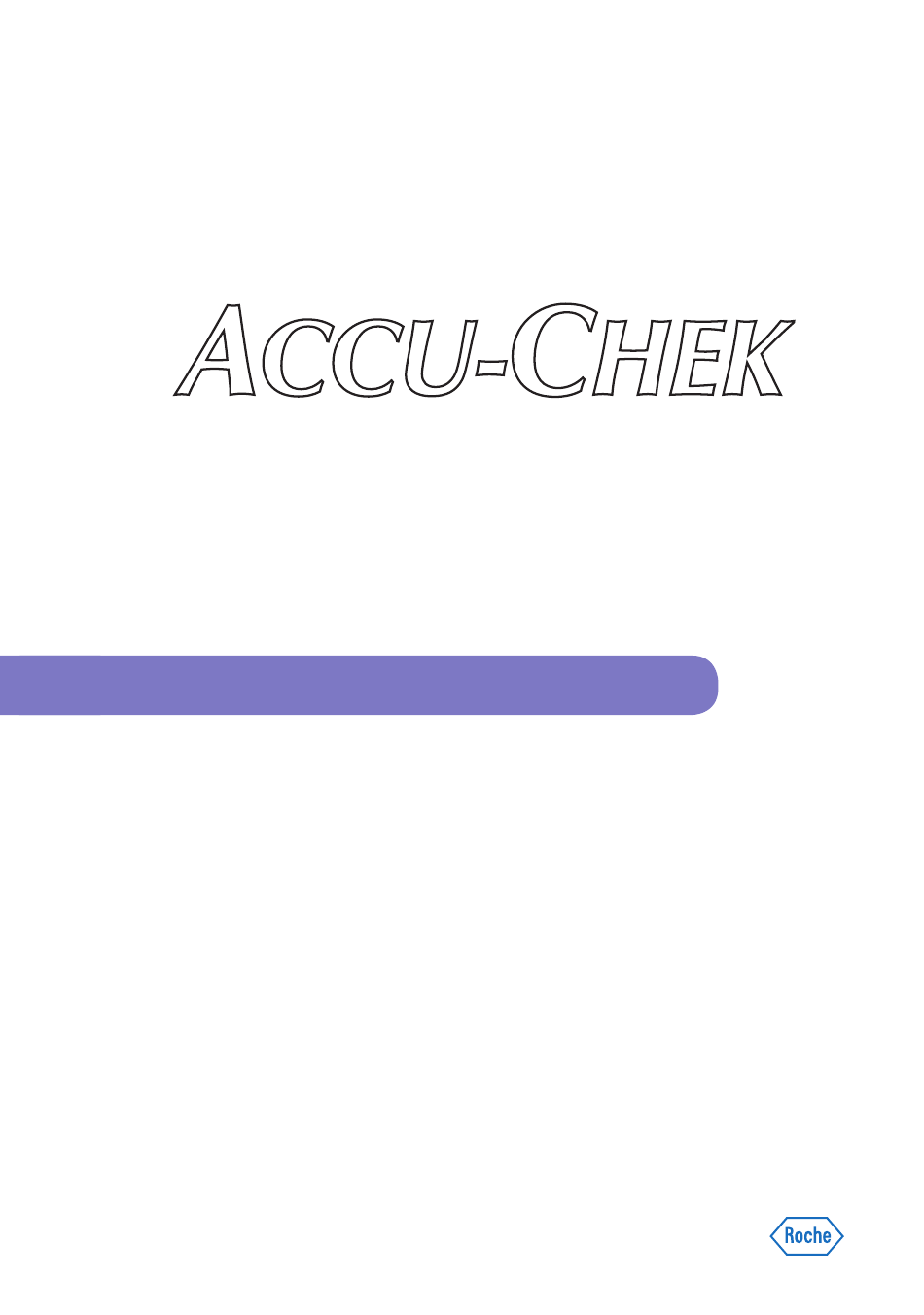

- Page 1 CCU- ® Inform II Operator’s Manual Base Unit HUB...
- Page 2 General Information The contents of this manual, including all graphics and photographs, are the property of Roche Diagnostics. No part of this document may be reproduced or transmitted in any form or by any means, electronic or mechanical, for any purpose, without the express written permission of Roche Diagnostics.
- Page 3 On the packaging, on the back label of the instrument and in the manual you may encounter the following symbols, shown here with their meaning: Lot number For in vitro diagnostic use This product fulfills the requirements of Directive 98/79/EC on in vitro diagnostic medical devices.
- Page 4 Revision History Revisions to this document are provided by Roche Diagnostics when necessary. No part of this document may be reproduced in any form or by any means without prior written consent. Publication Date Revision Purpose Reference Number 4987-00-0213 February 2013...
-
Page 5: Table Of Contents
Introduction Indications for use ...................6 Contents of the pack ..................6 Safety information ....................6 Operating conditions ..................7 ACCU-CHEK Inform II Base Unit HUB System Device elements overview ................9 Power supply ....................13 Operating the device ..................13 Important notes ..................... 15 Self test ...................... -
Page 6: Introduction
® an accessory to the ACCU-CHEK Inform II System. The ACCU-CHEK Inform II Base Unit HUB transfers data from the ACCU-CHEK Inform II Base Unit Light and docked ACCU-CHEK Inform II meter to a data management system as an aid in monitoring the effectiveness of glucose control. -
Page 7: Operating Conditions
Introduction Operating conditions To ensure that your ACCU-CHEK Inform II Base Unit HUB functions properly, observe the following guidelines: • O nly use the device at a room temperature between 37 °F and 122 °F (3 °C and 50 °C). • U se only mains voltage of 100V to 240 V (± 10%), 50/60 Hz. • U se only the standard 12V cabled power supply for medical use. Caution: Electromagnetic interference The ACCU-CHEK Inform II system complies with both the... - Page 8 Base Unit HUB Front view Base Unit HUB Back view Base Unit Light Back view...
-
Page 9: Device Elements Overview
U sed for local configuration Connection ports The following connection ports are located on the back of the ACCU-CHEK Inform II Base Unit HUB and the ACCU-CHEK Inform II Base Unit Light: B, D Data ports—USB (D) and Ethernet (B) ports for connecting the device to a host computer E, G Power adaptor—Plug in the power supply here: (E) on... - Page 10 The Base Unit Hub Base Unit HUB Back view * Option 3 is not applicable as a communication mode for the ACCU-CHEK Inform II Base Unit HUB.
- Page 11 Removable connector cover U sed for the RJ25 connector (ACCU-CHEK Inform II Base Unit Light(s) only) Mode switch A switch (USB configuration switch), on the back of the ACCU-CHEK Inform II Base Unit HUB and under the plastic cover, sets the ACCU-CHEK Inform II Base Unit HUB to one of two different modes of operation. Position Mode Description...
- Page 12 The Base Unit HUB Base Unit HUB Back view Base Unit Light Back view...
-
Page 13: Power Supply
The Base Unit HUB Power supply The power cord supplied with the ACCU-CHEK Inform II Base Unit Light can be operated with the power adaptor provided with the ACCU-CHEK Inform II Base Unit HUB. The power supply can also be ordered separately. - Page 14 Note: When the ACCU-CHEK Inform II Base Unit Light is connected to the ACCU-CHEK Inform II Base Unit HUB via an RJ25 cable, remove the power supply connector from the ACCU-CHEK Inform II Base Unit Light. Power is provided by the ACCU-CHEK Inform II Base Unit HUB via the RJ25 connection.
-
Page 15: Important Notes
The Base Unit HUB Important notes Always… • …handle the device carefully; avoid dropping or bumping it •… o perate the device at an ambient temperature between 37 °F and 122 °F (3 °C and 50 °C). •… place the device on a level, stable surface (such as a table) •… keep the device clean Never … •…spill liquids on the device •…immerse the device in any liquid •… e xpose the device to excessive sources of heat for a prolonged time •… s tore the device in damp or humid conditions without protection •… t ouch the charging terminals with metallic items, such as a paper clip, during operation... -
Page 16: Self Test
ACCU-CHEK Inform II Base Unit HUB will return automatically back to the configuration and state it was in before the self test and the LED will turn green. As part of the self test, the integrity of the ACCU-CHEK Inform II Base Unit HUB’s internal memory is checked. In case of a failure, the LED flashes red and the base will stay in configuration mode even if the mode switch is set to a different position; no USB or Ethernet... -
Page 17: Cleaning
CLEANING Cleaning the Use the following procedure to clean the ACCU-CHEK Inform II Base Unit HUB: Base Unit HUB Place the base unit on a level surface prior to cleaning. Unplug the ACCU-CHEK Inform II Base Unit HUB. Remove a Clorox Germicial Wipe from its packaging. Squeeze the wipe out and blot on a dry paper towel to remove any excess solution from it. - Page 18 This page intentionally left blank.
-
Page 19: Product Specification
PRODUCT SPECIFICATION Operating conditions Temperature range 37 °F to 122 °F (3 °C to 50 °C). and technical data Position Place the ACCU-CHEK Inform II Base Unit Hub on a level surface (such as a table) Interfaces Ethernet (TCP/IP) Height 1.3 in. Width 6.5 in. Length 6.5 in. Weight 28.2 oz. Storage and transport Temperature range 41 °F to 104 °F (5 °C to 40 °C). conditions Relative humidity 10 to 85% (non condensing) -
Page 20: Troubleshooting
TROUBLESHOOTING Display/ Root cause Possible solution symptom LED is not on Not connected to Disconnect and connect power supply or the power supply again. power supply is Try another outlet. defective, the ACCU-CHEK Inform II Base Unit HUB is defective, or power outlet not active. LED flashes Communication or Check the configuration... -
Page 21: Information About The Software License
INFORMATION ABOUT THE SOFTWARE LICENSE This product incorporates software that is under license from GPL. The source code for this software can be requested from the following address: Roche Diagnostics GmbH, Sandhofer Str. 116, D-68305 Mannheim The GPL licensing conditions are printed in the ACCU-CHEK Inform II User Manual. (in English only for legal reasons): GPL, Version 2, June 1991 Copyright © 1989, 1991 Free Software Foundation, Inc. 51 Franklin Street, Suite 330, Boston, MA 02110, USA Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed. -
Page 22: Warranty
Base Unit HUB shall be free from all defects in material and Limited (1 Year) workmanship for a period of one year from the date of purchase. Warranty Purchaser’ s sole and exclusive remedy, with respect to the Base Unit HUB and parts thereof, shall be the repair and/or replacement of the Base Unit HUB or parts at the option of Roche Diagnostics. THE ABOVE WARRANTY IS EXCLUSIVE OF ALL OTHER WARRANTIES, AND ROCHE DIAGNOSTICS MAKES NO OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION THE IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. - Page 23 This page intentionally left blank.
- Page 24 Roche Diagnostics GmbH D-68298 Mannheim Germany Distributed by: Roche Diagnostics 9115 Hague Road Indianapolis, IN 46256 USA www.poc.roche.com Made in Germany...
