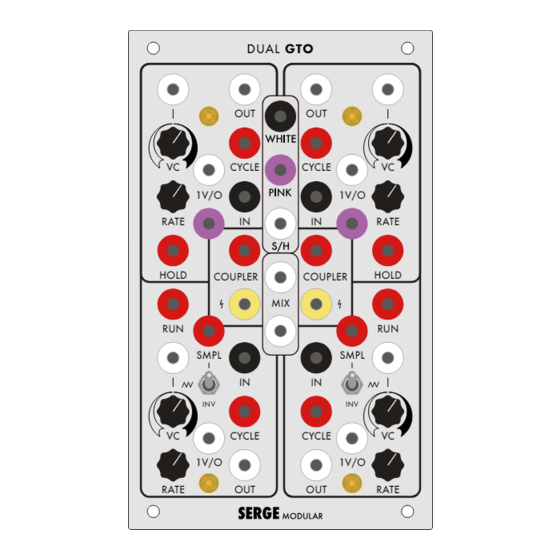

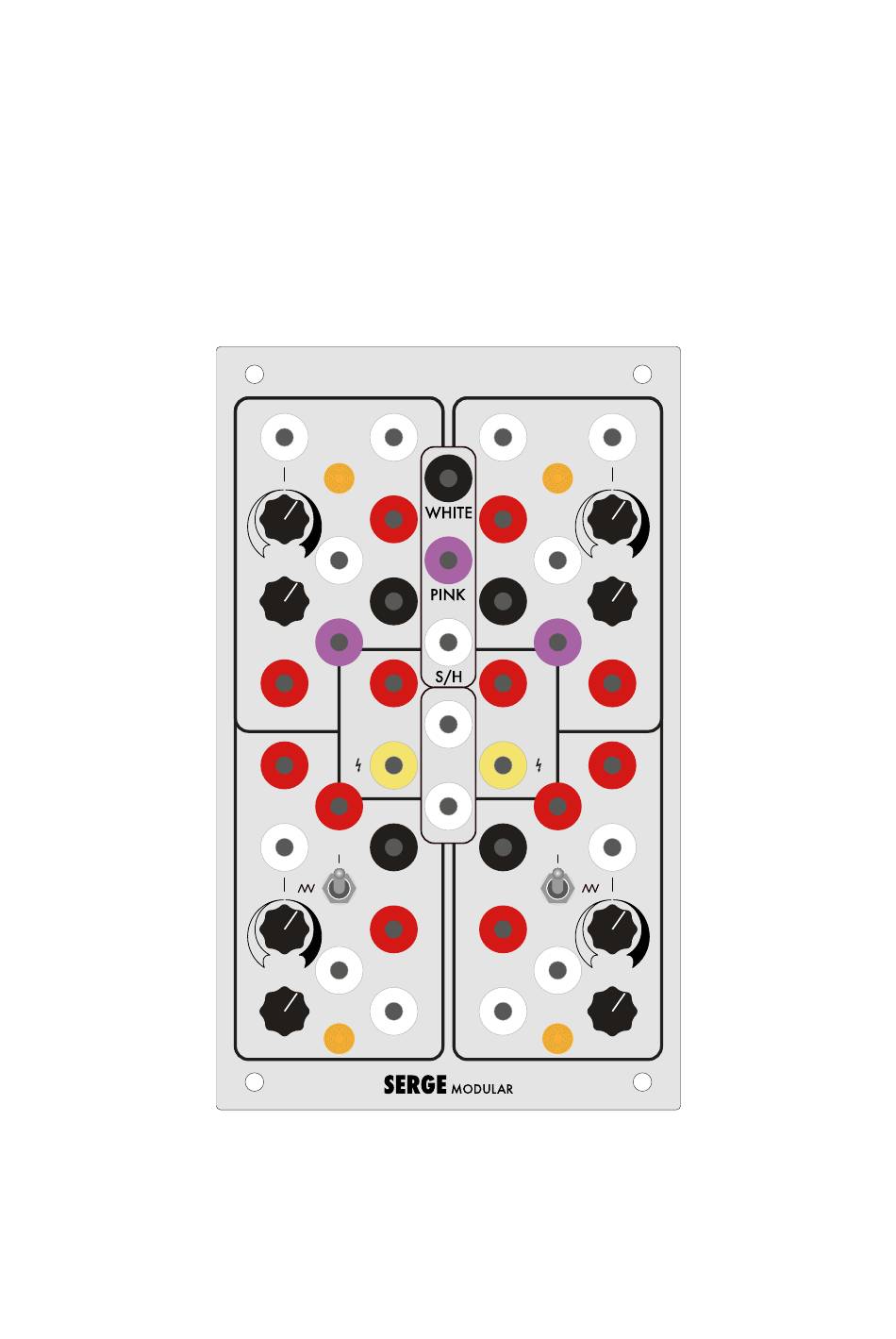

DUAL GTO
VC
1V/O
RATE
HOLD
RUN
SMPL
INV
VC
1V/O
RATE
R A N D O M * S O U R C E
SERGE
N O I S E
DUAL GTO
OUT
OUT
CYCLE
CYCLE
IN
IN
COUPLER
COUPLER
SMPL
MIX
IN
IN
CYCLE
CYCLE
OUT
OUT
U S E R
M A N U A L
V 1 . 0
VC
1V/O
RATE
HOLD
RUN
SMPL
INV
VC
1V/O
RATE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SERGE DUAL GTO NOISE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Random*Source SERGE DUAL GTO NOISE

Summary of Contents for Random*Source SERGE DUAL GTO NOISE

  • Page 1 SERGE DUAL GTO N O I S E DUAL GTO CYCLE CYCLE 1V/O 1V/O RATE RATE HOLD HOLD COUPLER COUPLER SMPL SMPL SMPL CYCLE CYCLE 1V/O 1V/O RATE RATE U S E R M A N U A L V 1 . 0 R A N D O M * S O U R C E...

  • Page 2: Table Of Contents

    SERGE MODULAR DUAL GTO Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Overview .

  • Page 3: Installation

    SERGE MODULAR DUAL GTO Installation Always turn the eurorack case off and unplug the power cord before plugging or unplugging any eurorack power cable . Do not touch any electrical terminals when attaching any eurorack power (bus board) cables . The Serge Dual GTO is an electronic music module requiring 50mA of +12VDC and 50 mA of -12VDC regulated voltages and an appropriate power connector to operate .

  • Page 4: Dual Gto - Basic Operation

    SERGE MODULAR Dual GTO - Basic Operation DUAL GTO CV IN MAIN OUT CV IN CV ATTENUV. CYCLE OUT CV ATTENUV. CYCLE CYCLE 1V/OCT IN 1V/OCT IN 1V/O 1V/O RATE RATE INPUT RATE RATE SYNC IN SYNC IN HOLD IN HOLD IN COUPLER OUT HOLD...

  • Page 5: Bottom Sections /// Stepped Mode (And More)

    SERGE MODULAR Bottom sections /// STEPPED mode (and more) The bottom sections also have a CYCLE mode (CYCLE OUT connected to IN) . However, the OUT depends on the Sample (SMPL) input and the corresponding MODE switch as well as on the RUN input: •...
  • Page 6 SERGE MODULAR INV Mode: When the SMPL switch is down, the SMPL input works exactly the other way around: the • GTO is free except for that small moment when the trigger occurs: The CYCLE is held for a brief moment . •...
  • Page 7 SERGE MODULAR INV Mode: When the SMPL switch is down, OUT is almost like in SMOOTH MODE, but the SMPL input • halts the signal for a very short moment: Note the tiny step in the OUT (yellow) whenever SMPL IN goes high (orange) . Green is the IN signal . •...

  • Page 8: Oct Input (#8)

    SERGE MODULAR DUAL GTO MAIN OUT CV IN CV IN CV ATTENUV. CYCLE OUT CV ATTENUV. CYCLE CYCLE 1V/OCT IN 1V/OCT IN 1V/O 1V/O RATE RATE INPUT RATE RATE SYNC IN SYNC IN HOLD IN HOLD IN COUPLER OUT HOLD HOLD COUPLER COUPLER...

  • Page 9: Gto - First Steps

    SERGE MODULAR The Coupler (#11, #12) The COUPLER is an internal comparator comparing the outputs of both side . Whenever the bottom section is HIGHER in voltage than the top section, the output of the COUPLER goes HI . Otherwise the output is LO . The COUPLER has two outputs, one of which switches between 0V and +12V, the other switching between -12V and +12V .

  • Page 10: Serge Noise Source

    SERGE MODULAR Serge Noise Source The Noise Source generates both white and pink noise waveforms . The S/H Source output produces the necessary input for a sample and hold function to produce equi-probable random voltages, similar to a 1/F distribution function . This signal is requred to patch the GTO as a Random Voltage Generator (RVG): Random Voltage Generator (RVG) Patch The Random Voltage Generator is the patched version of the generator in the classic Random Source module .

  • Page 11: Serge Gto - Patch Ideas

    SERGE MODULAR Serge GTO - Patch Ideas Sync’d VCO Using both sides combined as one tracking oscillator . • CYLCE both sides of the GTO . • Set SMPL switch to center (“free”) . • Keyboard 1V/OCT  left and right 1V/OCT of the GTO . •...
  • Page 12 SERGE MODULAR • CYCLE out (left)  IN on the right • Set SMPL switch to SMPL (top) • RED Coupler  RUN on the right • Keyboard GATE OUT  ExtADSR (or DSG) for Envelope • ExtADSR OUT  VC RATE of right GTO, VC RATE attenuverter fully CW •...

  • Page 13: Dual Gto Patches

    Variation: Send pink Noise to any free CV input or 1V/Oct . Listen to the Smooth (top) outputs . (Version 21 . July 2023, 3:35 PM) SERGE Modular by Random*Source . Under license and in cooperation with Serge Tcherepnin . All rights reserved . SERGE-MODULAR.COM...
