Summary of Contents for Random*Source GTO SERGE

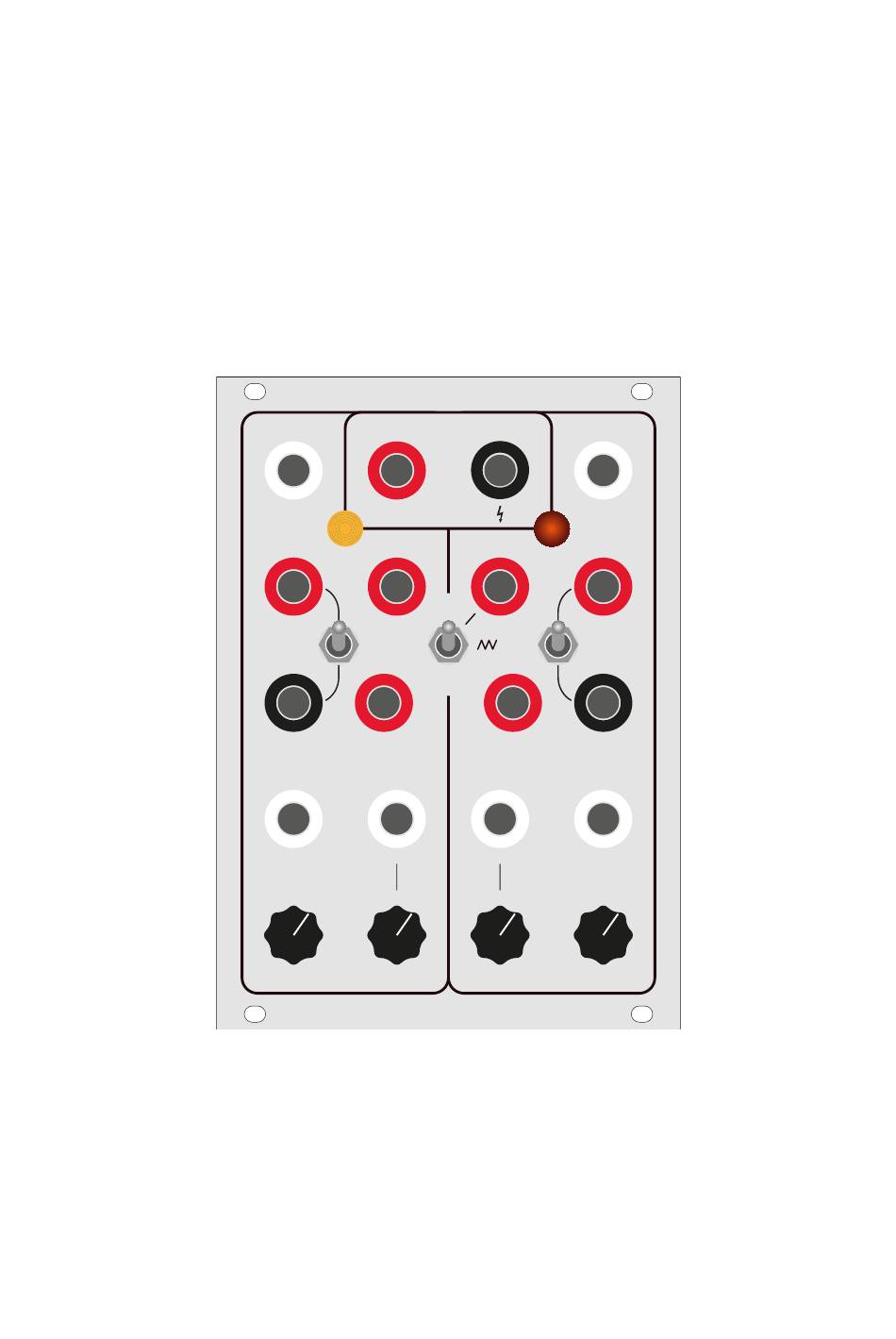

- Page 1 SERGE F O R E U R O R A C K G T O COUPLER SMPL CYCLE HOLD CYCLE SYNC 1V/OCT 1V/OCT R ATE VC RATE VC RATE RATE SERGE MODULAR U S E R M A N U A L V 1 .
-
Page 2: Table Of Contents
SERGE MODULAR Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Overview . -
Page 3: Installation
SERGE MODULAR Installation Always turn the eurorack case off and unplug the power cord before plugging or unplugging any eurorack power cable . Do not touch any electrical terminals when attaching any eurorack power (bus board) cables . The Serge GTO is an electronic music module requiring 50mA of +12VDC and 50 mA of -12VDC regulated voltages and an appropriate power connector to operate . -
Page 4: Serge Gto - Basic Operation
SERGE MODULAR G T O COUPLER OUT HOT COUPLER LEFT OUT RIGHT OUT COUPLER HOLD IN SAMPLE IN CYCLE OUT CYCLE OUT SMPL CYCLE HOLD CYCLE CYCLE SW SAMPLE SW INPUT INPUT SYNC SYNC IN RUN IN 1V/OCT IN 1V/OCT IN 1V/OCT 1V/OCT CV IN... - Page 5 SERGE MODULAR A PULSE wave (orange) into SMPL or RUN does not affect the Cycle . • Sample Mode: When the SMPL switch is up, the GTO moves (cycles) only for a very short period of time when a pulse wave triggers the SMPL input - irrespective of the pulse length: A PULSE wave (orange) into SMPL allows the GTO to run for a moment before being frozen again .
- Page 6 SERGE MODULAR RUN Mode: If all of this is not flexible enough gor you, the RUN input comes into play . Here, the GTO • runs freely while the signal is high and is held when the signal is low, i .e . the duty cycle of the pulse signal determins the ratio of running to stopping .
- Page 7 SERGE MODULAR RUN Mode: Here again the signal is frozen as long as the RUN input is high - the GTO acts like the left • side (SMOOTH MODE with HOLD): GTO (yellow) acts as in SMOOTH mode, RUN (orange) acts like HOLD . Please note that RUN and SMPLE IN can be combined for even more complex waveforms and modulations: GTO output (yellow) as affected by RUN (green) and SMPL (orange) .
-
Page 8: Oct Input (#8)
SERGE MODULAR G T O COUPLER OUT HOT COUPLER LEFT OUT RIGHT OUT COUPLER HOLD IN SAMPLE IN CYCLE OUT CYCLE OUT SMPL CYCLE HOLD CYCLE CYCLE SW SAMPLE SW INPUT INPUT SYNC SYNC IN RUN IN 1V/OCT IN 1V/OCT IN 1V/OCT 1V/OCT CV IN... -
Page 9: Gto - First Steps
SERGE MODULAR between -12V and +12V . This is useful for generating complex control voltages and for patching a random voltage generator . In fact, the Random Voltage Generator module is a Smooth & Stepped Generator internally patched to function exclusively as such . Note that a Noise Source is needed for use of the GTO as a random voltage generator . -
Page 10: Serge Gto - Patch Ideas
SERGE MODULAR Serge GTO - Patch Ideas Sync’d VCO Using both sides combined as one tracking oscillator . • CYLCE both sides of the GTO . • Set SMPL switch to center (“free”) . • Keyboard 1V/OCT left and right 1V/OCT of the GTO . •... - Page 11 SERGE MODULAR • Set SMPL switch to SMPL (top) • RED Coupler RUN on the right • Keyboard GATE OUT ExtADSR (or DSG) for Envelope • ExtADSR OUT VC RATE of right GTO, VC RATE attenuverter fully CW •...
-
Page 12: Dual Gto Patches
Coupler (normal) Stepped RUN and Smooth SYNC • Keyboard 1V/Oct input • SH/SRC Stepped IN Listen to whatever output ;-) (Version 10 March 2023) SERGE Modular by Random*Source . Under license and in cooperation with Serge Tcherepnin . All rights reserved . SERGE-MODULAR.COM...
